Help CenterFine Powder Ball Grinding Mill Glass Mill With CE Certification
Related Products
-
Small Scale Gold Mining Machine of 900X1800 Stone Grinding Ball Mill With Good PriceNegotiableMOQ: 1 -
Hot Sale Ore Grinding Machine Ball Mill for Gold and Copper MiningNegotiableMOQ: 1
-
Energy-saving Grinding Equipment Limestone Bentonite Zircon Sand Stone Dry / Wet Grinding Ball MillNegotiableMOQ: 1
-
Laboratory 600x700 Mini Ball Mill Price Used in Ceramic IndustryNegotiableMOQ: 1
-
New Design Wet Dry Type Mining Ore Wet Grinding Equipment Ball Mill MachineNegotiableMOQ: 1

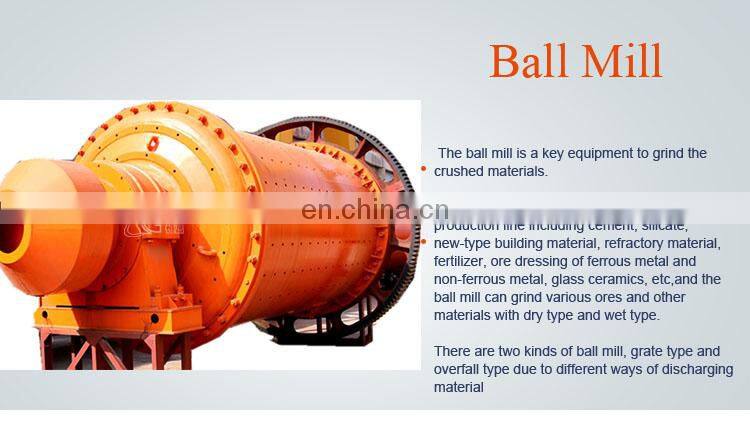

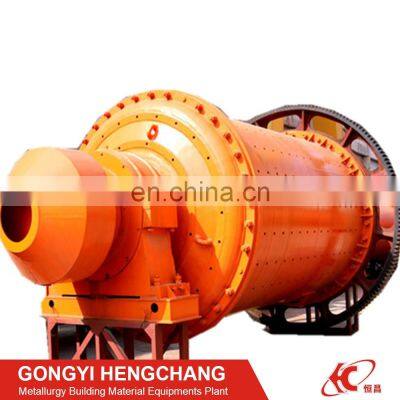

The ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding
chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel ball in the chamber.
The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials.
The ground materials are discharged through the discharging board thus the grinding process is finished.
Model |
Rotate Speed (r/min) |
Max. ball No (t) |
Feed size(m) |
Output size(mm) |
Capacity(t/h) |
Power (kw) |
Weight (t) |
YMQ750×1800 |
39 |
1.0 |
0-15 |
0.075-0.3 |
0.3-0.8 |
11 |
3.5 |
YMQ900×2100 |
37.8 |
1.5 |
0-15 |
0.075-0.3 |
0.8-2.1 |
15 |
5.2 |
YMQ1200×2800 |
37 |
5.2 |
0-20 |
0.075-0.3 |
1.2-6.2 |
30 |
10 |
YMQ1500×3500 |
29.7 |
8.0 |
0-25 |
0.075-0.3 |
2.8-9 |
75 |
17 |
YMQ1500×4500 |
29.7 |
9.5 |
0-25 |
0.075-0.3 |
2.8-10 |
90 |
20 |
YMQ1830×3600 |
25 |
11.5 |
0-25 |
0.075-0.3 |
5.2-25 |
130 |
28 |
YMQ1830×4500 |
25 |
16.5 |
0-25 |
0.075-0.3 |
5.2-30 |
155 |
32 |
YMQ2100×3600 |
24.6 |
17.4 |
0-25 |
0.075-0.3 |
6.5-40 |
180 |
41 |
YMQ2100×4500 |
24.6 |
22.5 |
0-25 |
0.075-0.3 |
6.5-42 |
210 |
46 |
YMQ2400×3600 |
22.4 |
23 |
0-25 |
0.075-0.3 |
7.2-92 |
210 |
65 |
YMQ2400×4500 |
22.4 |
28.5 |
0-25 |
0.075-0.3 |
7.2-95 |
245 |
72 |
YMQ2700×3600 |
20.7 |
40 |
0-25 |
0.075-0.3 |
12-145 |
320 |
80 |
YMQ2700×4500 |
20.7 |
50 |
0-25 |
0.075-0.3 |
12-155 |
380 |
90 |
Q: For providing you the suitable quotation we need to know the following information: ?
A:
1. What is the raw material?
2. What is the capacity per hour you required ?
3. What is the maximum input size of the raw material ?
4. What is the final size you need ?
Remarks: The price will depend on different models.
Q: What about Warranty of the products ?
A:
Gongyi hengchang machinary grants our customers a twelve-month-period warranty from the date of delivery for machines exported from us. During the warranty period, in case any defect of material or workmanship occurred with spare parts in normal operation, we will at our discretion replace or repair the defective parts freely.
Q: The reason you choose Gongyi hengchang Machinery:
A:
1. Professional manufacturer of supplying mining crushing equipment, construction equipment, Ore beneficiation equipment and mining dryers.
2. Experienced and professional R&D team and manufacturing team;
3.Professional sales team consisted of dedicated, dynamic and innovative people with international version.
4. Professional logistics service ensuring safety and timely delivery of products all over the world through ocean, airline, road and railway.
Contact us for more details about price, packing, shipping and discount.
