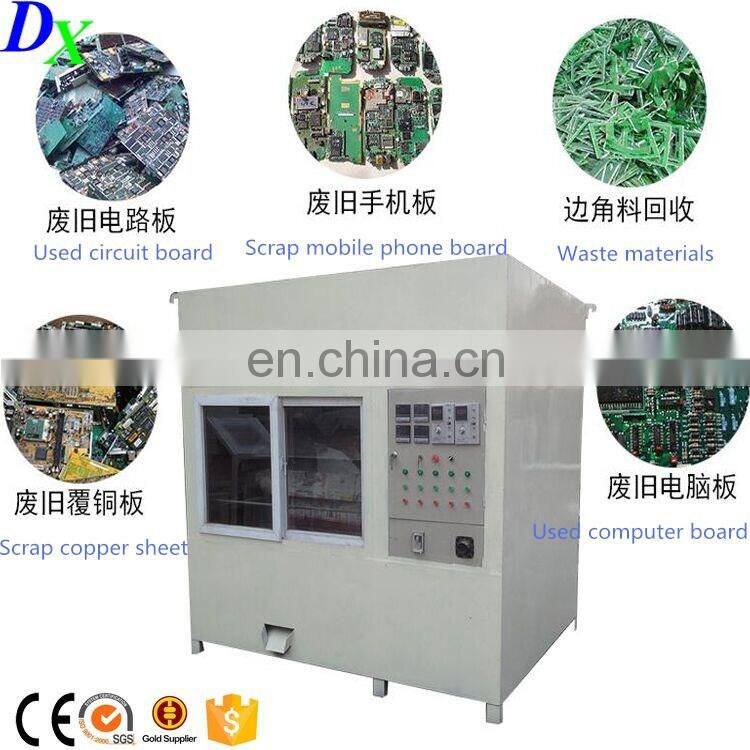

E waste precious metals recovery refining recycling machine

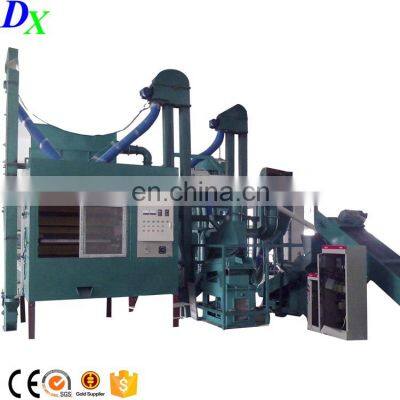

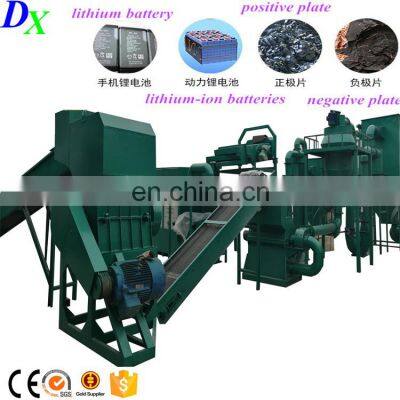

Introduction of Precious metals recovery machine:

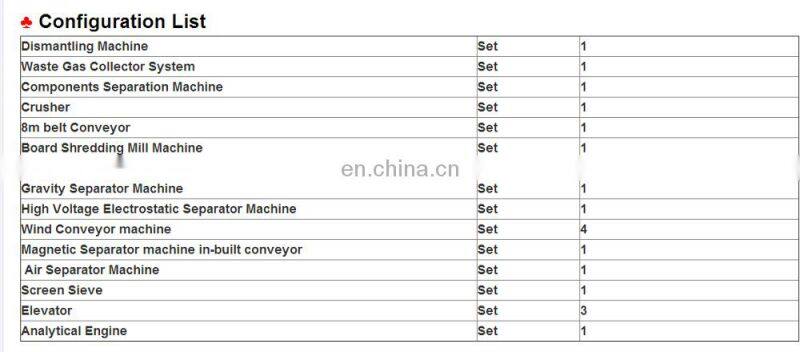

Precious metals recovery machine for sale consisted of band conveyer, crusher, grinder, hydraulic pump, charging screw conveyer, air flow separator, cyclone dust collector, discharge device, dust collecting exhaust blower, impulse dust catcher, feeding screw conveyer, elevator, electrostatic separator and electrical box and so on. It is combined with the domestic and international advanced technology, The equipment adopts the advanced physics law recovery processed. The developed crusher and high pressure electrostatic separation equipment innovation is strong , the recycling of the process route is advanced and reasonable.

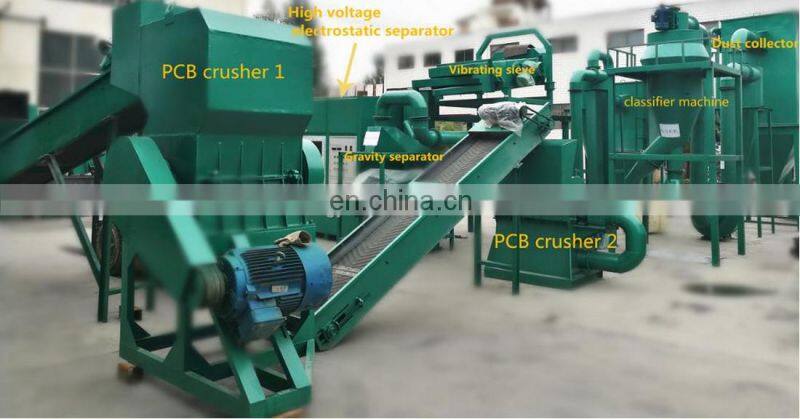

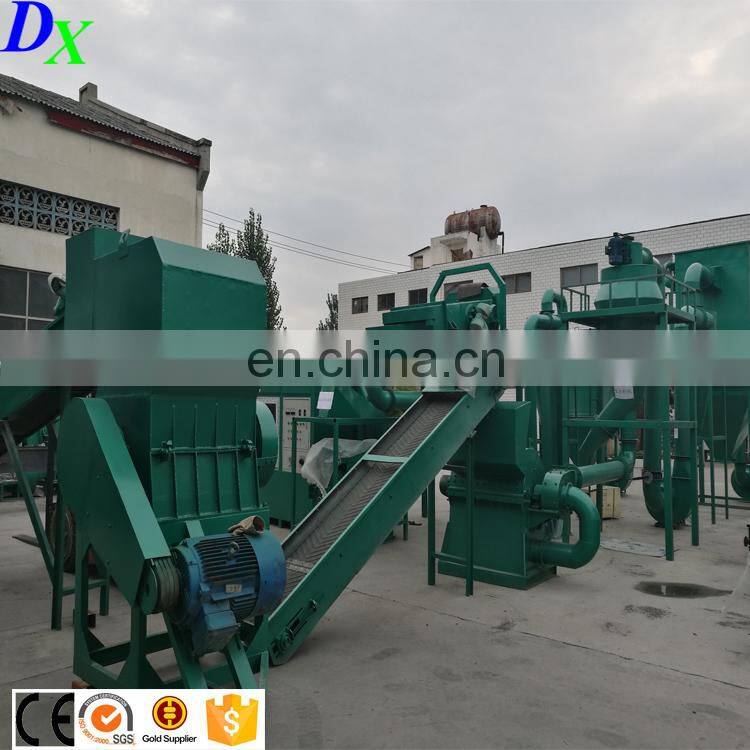

Structure of Precious metals recovery machine:

1.PCB crusher1: Crush the PCB board to 2-3 cm.

2.PCB crusher2: Second Crush the PCB board to 20 mesh.

3.Classifier machine:Selection by winnowing for the crushed material, separate the resin, copper and fiber, dust,ect. Dust and fiber go into material collector by blower, resin and copper go into the vibrating sieve.

4.Material Collector: Collect the dust and fiber powder, The collected fiber will be discharged.

5.Impulse type Dust collector:Collect dust and superfine fibers from the crushing process.

6.Vibrating sieve:The resin and copper are screened, and the resin and copper which are not separated will be returned to the crusher and pulverized, and the separated resin and copper go into the gravity separator for sorting.

7.Gravity separator:The resin powder and copper powder are separated by gravity, owing to the weight of copper is greater than the weight of the resin, the copper will be separated to one side and the resin will be sorted to the other. In this way, metal and nonmetal separation is achieved. This is the most advanced technology in China, which metal sorting effect can achieve more than 99% .

8.High voltage electrostatic separator: The tailings material (which have small copper powder and resin powder)from the gravity separator will be sorted by electrostatic separation.(The work principle of high voltage electrostatic separation: The input power is adjusted to a high voltage of 100,000 volts by transformer,to forming a high pressure magnetic field,and effect of adsorption on conducting metal, then separate the metal from the nonmetal)

Application of Precious metals recovery machine:

Precious metals recovery machine for sale can be used for all kinds of circuit boards, computer board, TV Board, aluminum-plastic plate, with copper printed circuit board and the processing waste, such as waste electrical appliance for mechanical crushing recycling, the metal recovery rate is high , the recovery rate is up to 99%.  It has the advantages of unique structure large output and power saving. Several machines cooperate to work after single loading of materials. Controlled by PLC This machine has good performance in copper recycling and comes with a device to prevent against secondary pollution. The copper recycling rate is up to 99% which takes in China. The waste circuit board is grinded into mixture of metal and resin fiber, followed by being separated with the pneumatic and electro is equipped at the end of pneumatic separating process to effectively solve the problem of dust pollution.

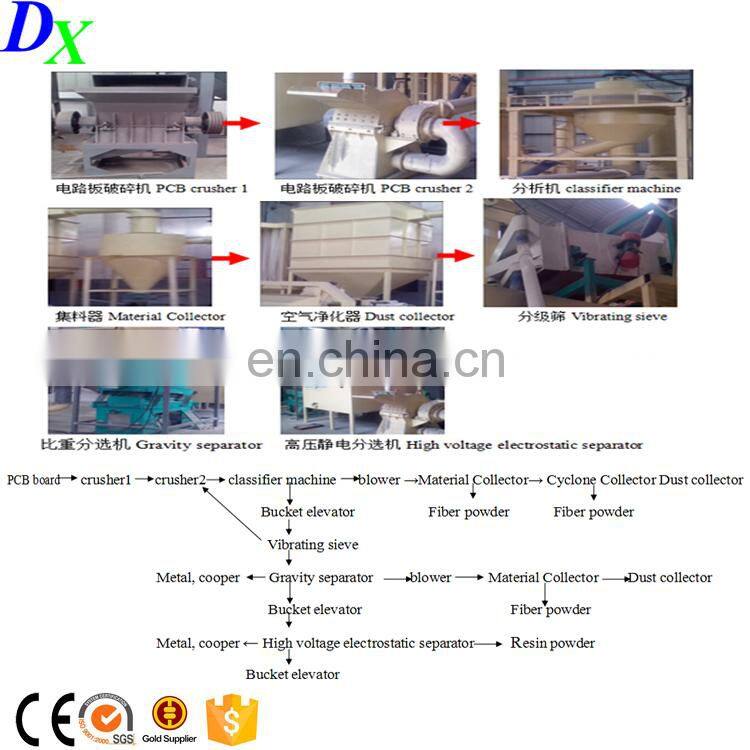

Working process of Precious metals recovery machine:

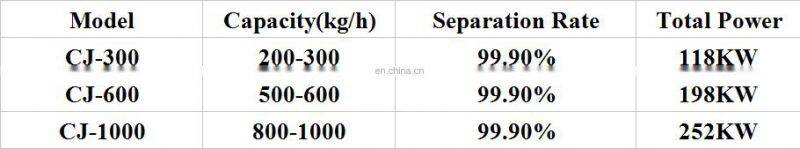

Technical parameter of Precious metals recovery machine:

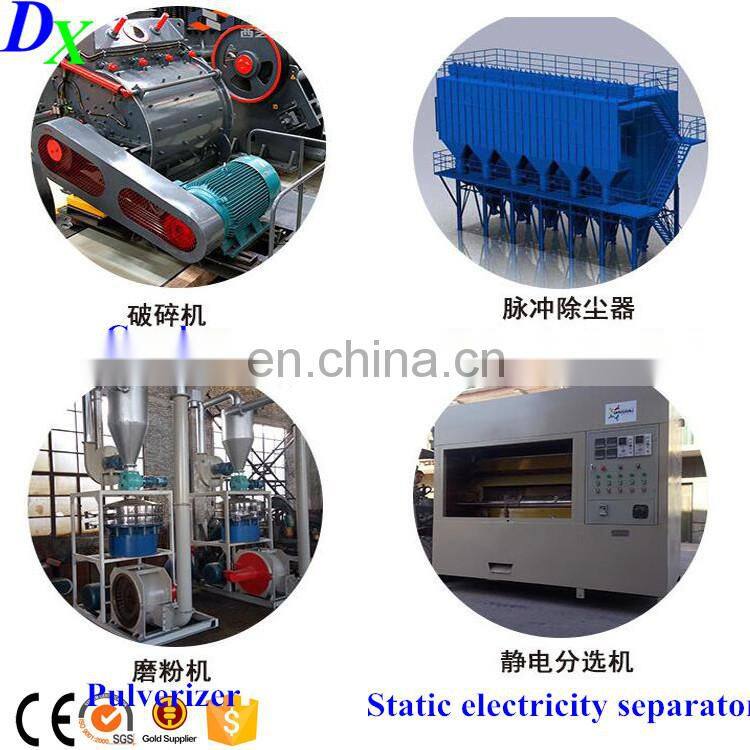

Features of Precious metals recovery machine:

1.Our PCB recycling system adopt the Pulse air separator together with High voltage electrostatic separator, which different from the common vibrating separator and electrostatic separator, ours own the larger capacity, high rate of separation, no pollution.

2.Pulse air separator improves the purity of separation rate, this step can separate >95% metal powder.

3.We adopt Pulse dust removing equipment, easy to clean and no dust release, the working is much better than cloth bag removing equipment.

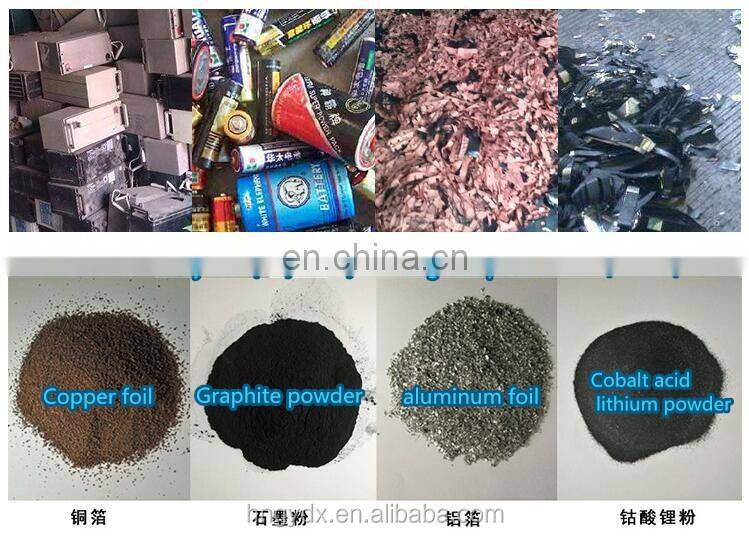

Final product of Precious metals recovery machine:

Many customers visit our company:

 Package information of Precious metals recovery machine:

Service of Precious metals recovery machine:

Our company are professional in making Precious metals recovery machine. We can attach different clients’ different needs. We are a productive entity enterprise. We have improved it according to market trendy gradually. We have a strong technical team to develop new products constantly. Except that we also have carbonization furnace, pellet machine, briquette machine, crusher, dryer and plastering machine etc. Welcome to our factory!

Payment information of Precious metals recovery machine:

1.How about capacity of your machine?

Generally, it will be different according to different model, but we can introduce the most suitable machine by reference to your required capacity.

2.Does the machine have pollution or noise?
No pollution and no noise.

3.How about separation rate?

Almost 99.9%.

If you are interested in our machine,we can customized accroding to the your requirements. Welcome to our factory, we will provide you the best machines with the lowest price!

Contact information of Precious metals recovery machine:
