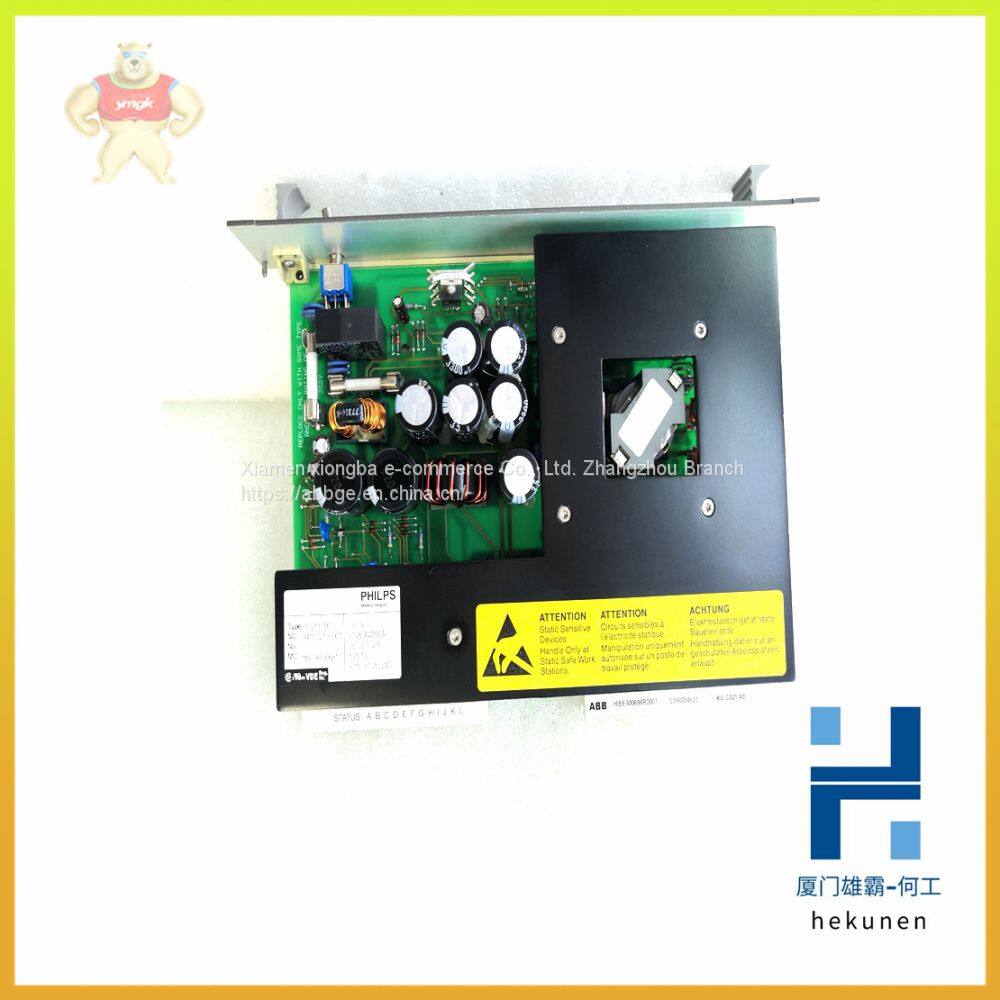

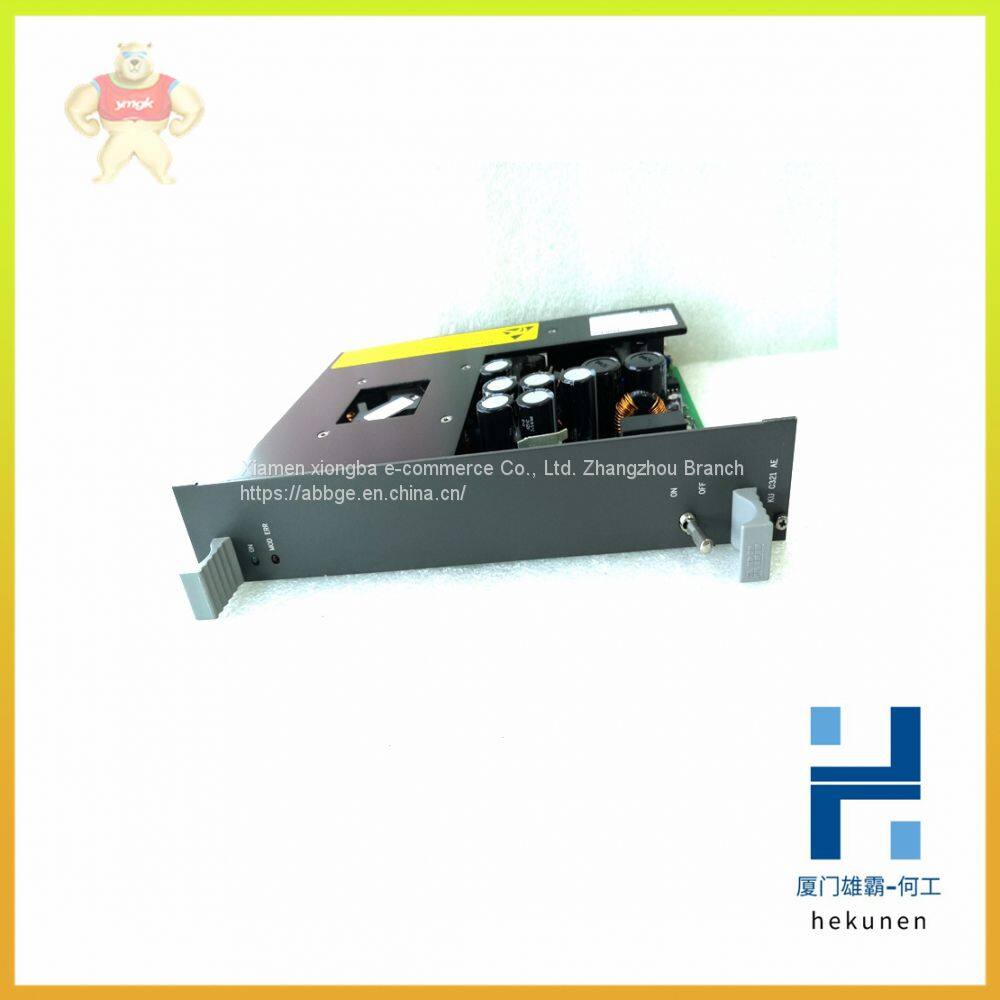

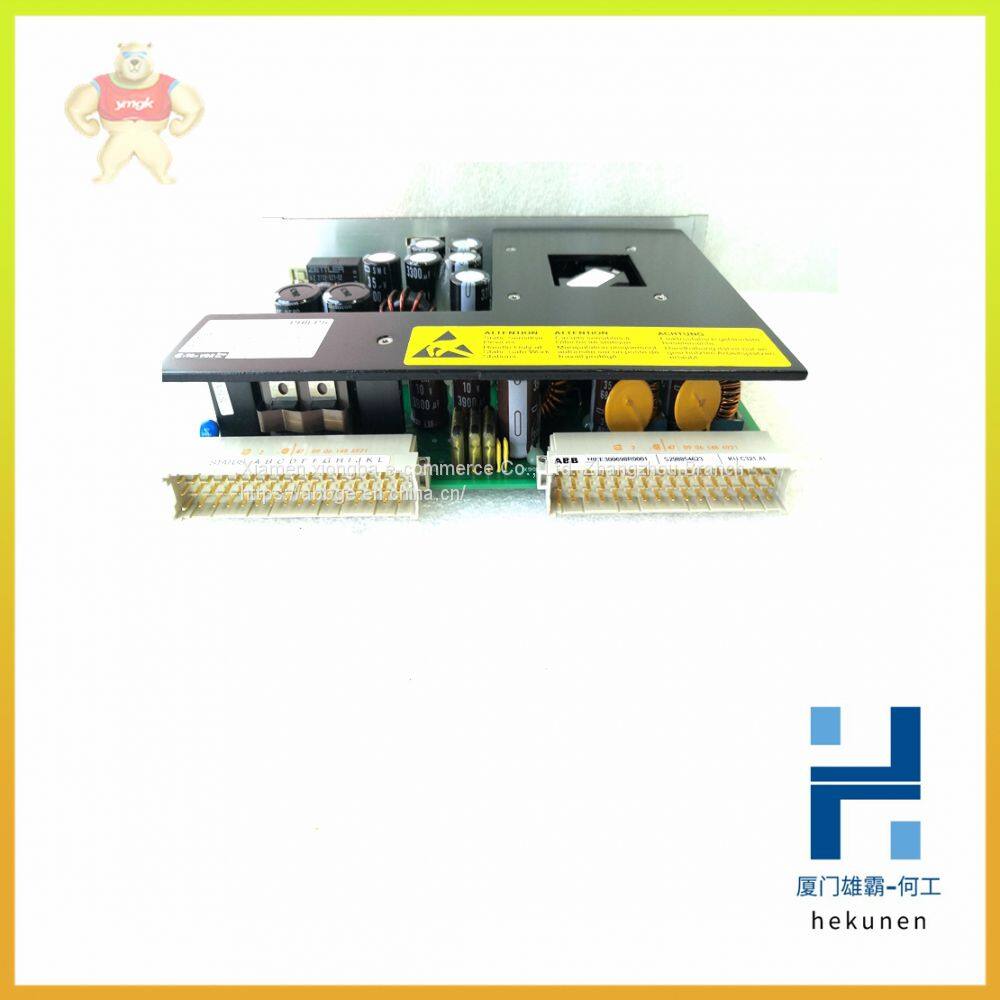

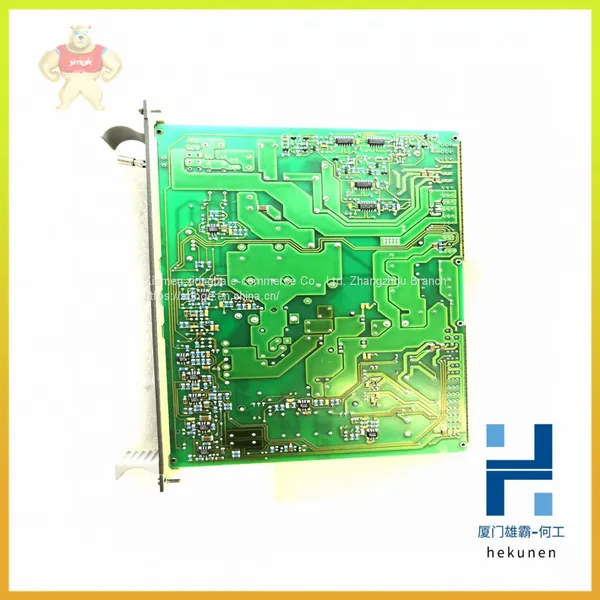

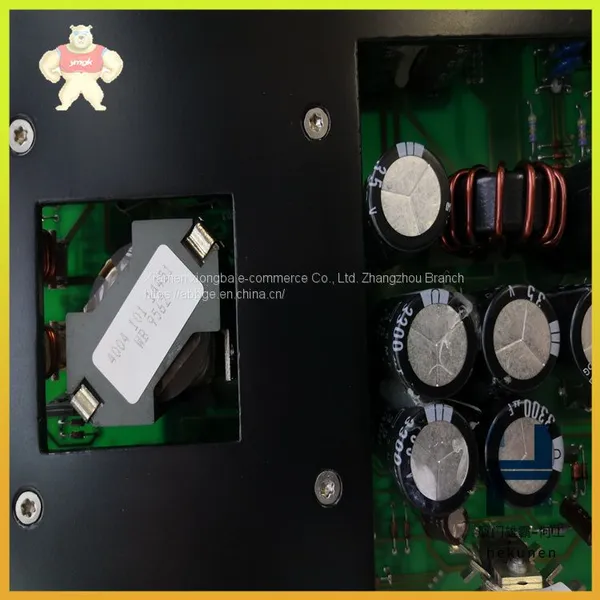

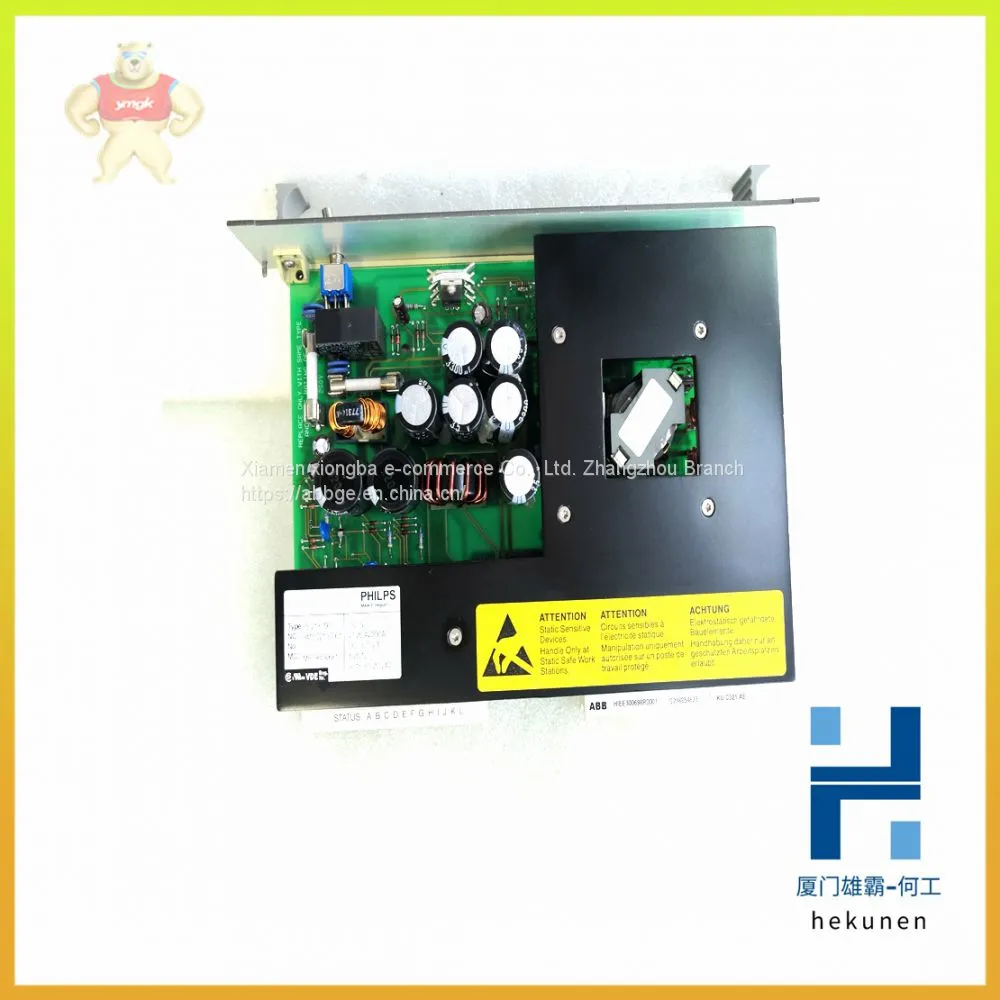

KUC321AE HIEE300698R0001 ABB Excitation Control Module in Stock

KUC321AE HIEE300698R0001 ABB Excitation control module in stock

KUC321AE HIEE300698R0001 ABB Excitation control module in stock

Our Email: 2235954483@qq.com

contact number:13313705507

contacts：HE

Overvoltage protection based on conventional voltage

measurement

Both the low-set and the high-set overvoltage stage can independently be set to start

and trip when one of the three voltages or all the voltages rise above the set start

value. By default, both stages operate when one of the three voltages rise above the

set start value. The selection is made in SGF4/5 and SGF4/6.

When the phase-to-phase voltage values exceed the set start value of the low-set

stage, U>, the stage generates a start signal after a ~ 60 ms’ start time. When the set

operate time at definite-time characteristic or the calculated operate time at IDMT

characteristic elapses, the stage generates a trip signal.

Stage U> has a settable resetting time (both at definite-time and IDMT

characteristics), tr>, for reset coordination with existing electromechanical relays or

for reducing fault clearance times of recurring, transient faults. If stage U> has

started and the phase-to-phase voltages fall below the set start value of the stage, the

start of the stage remains active for the set resetting time. If the phase-to-phase

voltages exceed the set start value again while the timer is running, the timer is

cleared and the start of the stage remains active.

Consequently, the set resetting time ensures that when the stage starts because of

voltage spikes, it is not immediately reset. If stage U> has already tripped, the stage

is reset in 70 ms after the phase-to-phase voltages have fallen below 0.5 times the set

start value of the stage. However, if stage U> has already tripped and the phase-tophase voltages have fallen below the set start value of the stage, but not below 0.5

times the set start value, the stage is reset when the set resetting time is expired.

When the conventional protection mode is selected and the phase-to-phase voltages

exceed the set start value of the high-set stage, U>>, the stage generates a start

signal after a ~ 50 ms’ start time. When the set operate time at definite-time

characteristic or the calculated operate time at IDMT characteristic elapses, the stage

generates a trip signal. The stage is reset in 70 ms after the phase-to-phase voltages

have fallen below the set start value of the stage.

The conventional overvoltage stages have a settable drop-off/pick-up ratio, which is

adjustable between 0.95...0.99, the default being 0.97.
