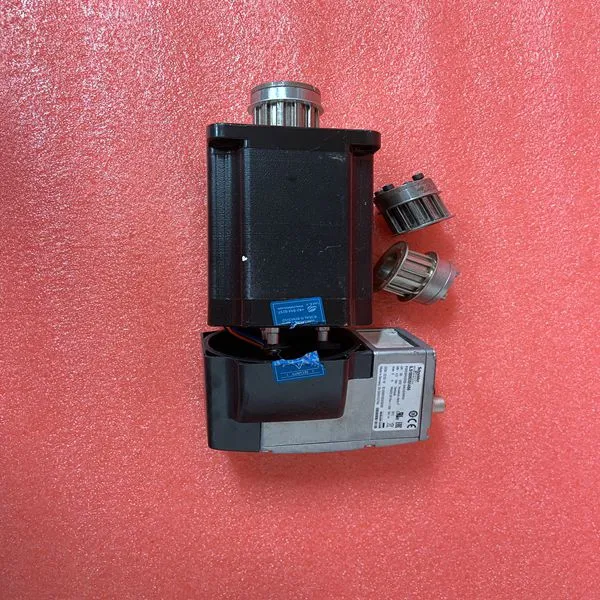

ILS1B853S1456

Brand:140PLC

Type:ILS1B853S1456

Origin: the United States

Warranty: 365 days

Colour: new/used

Shipping method: Courier delivery

^{Spare parts spare parts, the main DCS control system of PLC system and the robot system spare parts,}

Brand advantage: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft etc. Various kinds of imported industrial parts

3.1.4 Printing a Configuration File 1 In the main PCB window, right-click the MVI69E-MBS icon and then choose VIEW CONFIGURATION. 2 In the View Configuration dialog box, click the FILE menu and then click PRINT. 3 In the Print dialog box, choose the printer to use from the drop-down list, select the printing options, and then click OK.

Module Configuration Parameters 3.2.1 Module Parameters This section contains general module configuration parameters, including database allocation and backplane transfer options. In the ProSoft Configuration Builder (PCB) tree view, double-click MODULE. Parameter Value Description Module Name ASCII characters (max. 38) Assigns a name to the module that can be viewed using the configuration/debug port. Use this parameter to identify the module and the configuration file. Read Register Start 0 to 9999 Specifies the start of the Read Data area in module memory. Data in this area is transferred from the module to the processor. Read Register Count 0 to 10,000 Specifies the size of the Read Data area. Write Register Start 0 to 9999 Specifies the start of the Write Data area in module memory. Data in this area is transferred from the processor to the module. Write Register Count 0 to 10,000 Specifies the size of the Write Data area. Backplane Fail Count 0 to 65535 Specifies the number of consecutive backplane transfer failures that can occur before communications are halted. Error/Status Block Pointer -1 to 9939 Starting register location in the module’s database for the error/status table. If a value of -1 is entered, the error/status data is not placed in the database. This data must be placed in the read data range of module memory.

This data includes the module version information and all server error/status data. Refer to MBS.STATUS (page 64) for more information. Initialize Input Image Yes or No This parameter determines if the input image data and the module’s Read Register Data values are initialized with Read Register Data values from the processor. If you set the parameter to No, the Read Register Data values in the module are set to 0 upon initialization. If you set the parameter to Yes, the data is initialized with Read Register Data values from the processor. This option requires associated ladder logic to pass the data from the processor to the module. Block Transfer Size 60, 120 or 240 Specifies the number of words in each block transferred between the module and processor. Slot Number 1 to x Specifies the slot in the CompactLogix or MicroLogix 1500- LRP rack for the module. Important: The sum of the Read Register Count and Write Register Count cannot exceed 10,000 total registers. Furthermore, neither the Read Data nor the Write Data area may extend above module register 9999. The Read Data and Write Data areas must not overlap.
