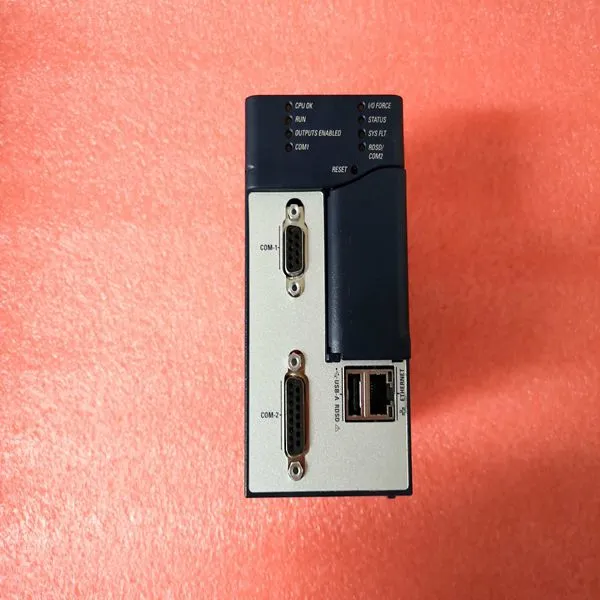

Help CenterIC695CPE310-ABAD
Related Products
Brand:GE
Type:IC695CPE310-ABAD
Origin: the United States
Warranty: 365 days
Colour: new/used
Shipping method: Courier delivery
Spare parts spare parts, the main DCS control system of PLC system and the robot system spare parts,
Brand advantage: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft etc. Various kinds of imported industrial parts
Key Features • MPC862P Microprocessor running at 96 MHz. • 32 MB RAM • Provides supervision of the PM865 controller during SIL1-2 operations. • Over voltage protection. • Internal voltage monitoring. • Supports hot swap. • Supports redundancy. Description Physically SM810 Unit consists of two parts: Termination Plate (TP855) and SM810. The SM810 contains two pc-boards. The main board contains the MPC862, SDRAM, Flash PROM, and CEX-Bus slave interface. A daughter board contains digital I/O, +3.3V supply with over-voltage protection and voltage monitoring. The termination plate contains CEX-Bus connectors and connectors for the digital I/O.
Designation/Color Function F(ault) /Red Unit error detected. Controlled by Control Software. Set and cleared by the Hardware during controller Reset. R(un) /Green Operational. Controlled by the Control Software. Cleared by the Hardware during controller Reset. ACCESS EN(abled) /Yellow Access Enable switch active. DEGR(aded) MODE /Yellow Reserved for future use. PRIM /Yellow Indicates that the unit is used as the primary SM810. SYNC(hronized) /Yellow Indicates that the SM810 is synchronized. Flashes during SM810 synchronization. Table 69. SM810 Specifications Item Value Memory • 4 MB flash PROM (firmware storage). • 32 MB of SDRAM. Galvanic isolation Yes Connector One 7 pin screw connector Current consumption (from CEX-Bus 24 V DC) 160 mA typical (250 mA max) Power dissipation 3.8 W typical
SM811 and TP868 Key Features • MPC862P Microprocessor running at 96 MHz. • 32 MB RAM • Provides supervision of the PM865 controller during SIL1-2 operations and together with the PM865 forms a 1oo2 diverse architecture for SIL3 applications. • Over voltage protection. • Internal voltage monitoring. • Supports hot swap. • Supports redundancy. • SM Link for synchronization of redundant pair. Description Physically SM811 Unit consists of two parts: Termination Plate (TP868) and SM811. The SM811 contains two pc-boards. The main board contains the MPC862, SDRAM, Flash PROM, and CEX-Bus slave interface. A daughter board contains digital I/O, +3.3V supply with over-voltage protection and voltage monitoring. The termination plate contains CEX-Bus connectors and connectors for the digital I/O.
