Product Description
Products Description
Ultrasonic Auto Plastic Car Bumper Cutting Welding Making Machine
DIZO company is a professional engaged in ultrasonic industrial equipment, plastic welding equipment, hot riveting welding equipment research and development, production, sales, service as one of the modern high-tech enterprises.
Can provide you with ultrasonic plastic welding machine, hot riveting welding equipment, plastic hot melt welding machine, plastic hot plate welding machine, high frequency welding machine, automobile special welding machine, non-woven special welding machine, non-standard welding machine and ultrasonic welding mold.
Parameter :
Service: | OEM/ODM |
Voltage: | 220V/380V |
Power: | 2KW/5KW Depend on Usage |
Frequency: | 50KHz |
Application: | Front and rear bumpers |
Driven Mode: | Pneumatic |
Operation Mode: | Semi-automated |
Controlling system: | PLC+ text controller |
Weight: | 2.5T-3.5T Depend on Usage |
Core selling points: | Accurate temperature control/Flexible Manufacturing/Low Maintenance Cost/Sustainable/Low Noise Level/High Safety Level/Easy to Operate/Long Service Life/High Rigidity/High-accuracy |

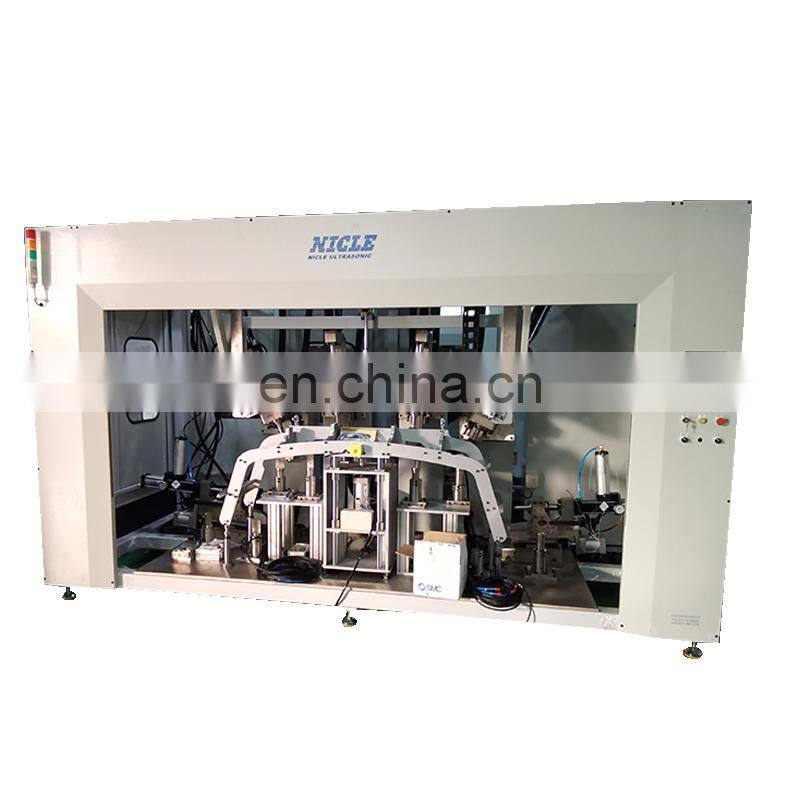

Details Images
Model | Punching | Punching + Welding | |
Power | 2KW | 5KW | |
Maximum Product Size | 1900*1000*600 | ||
Beat | 1 piece/min | 3min/ piece | |
Protected Mode | Infrared grating | ||
Dimension of Equipment | 4500*1000*2500 | 4500*2000*2500 | |
Weight | 2.5T | 3.5T | |
Welding principle:
The equipment adopts high strength steel as the frame, three ultrasonic welding head at the same time pressure welding, a single welding head split type control, a single welding head can adjust the position (three axis adjustment), using the welding tool sliding rail structure, the cylinder from the place area movement to the welding area. The height of the upper die can be adjusted by the limit screw and controlled by PLC man-machine interface. The side-pull structure is convenient for debugging and installation with high accuracy. The machine is easy to debug and stable in performance. The driving mechanism of the equipment can be divided into manual operation and automatic operation. Manual operation is a single action, which is mainly used for the debugging of the mechanism and mold. In PLC computer touch screen into the main operation screen, according to the welding requirements of the workpiece welding time, curing time and delay time are set.
The computer touch screen automatically determines, close the moving door (proximity switch indicator light) or safety grating, press the start switch (blue) button at the same time, the process is controlled by PLC to achieve automatic control.
Start the switch upper die to weld the workpiece down.Production for automatic, automatic control system using programmable controller (PLC) to control the continuous movement of the cylinder. Easy operation, reliable performance, compact size, improve production efficiency and quality.
Product Feature:
1, Adopt ultrasonic cutting process, fast speed, no burr.
2, Radar hole punching and radar bracket welding can be automatically completed in one loading, which ensures product quality, large internal space of equipment and good operation.
3, Cheng is also very flexible adjustment, suitable for various models of bumper.
4, Each system independent control, convenient adjustment, to ensure the qualified rate of products.
Equipment design multiple safety protection Sensor to ensure the safety of man and machine.
5, Adopt the product surface protection device to ensure that the product surface is cut without scars.

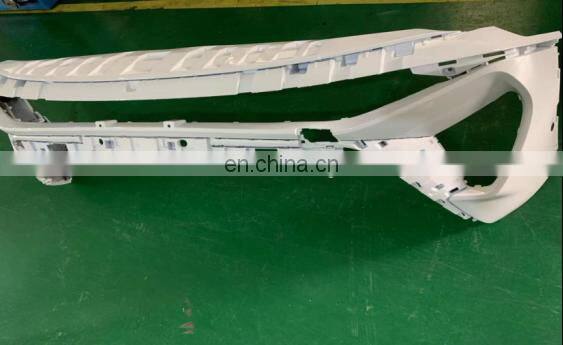

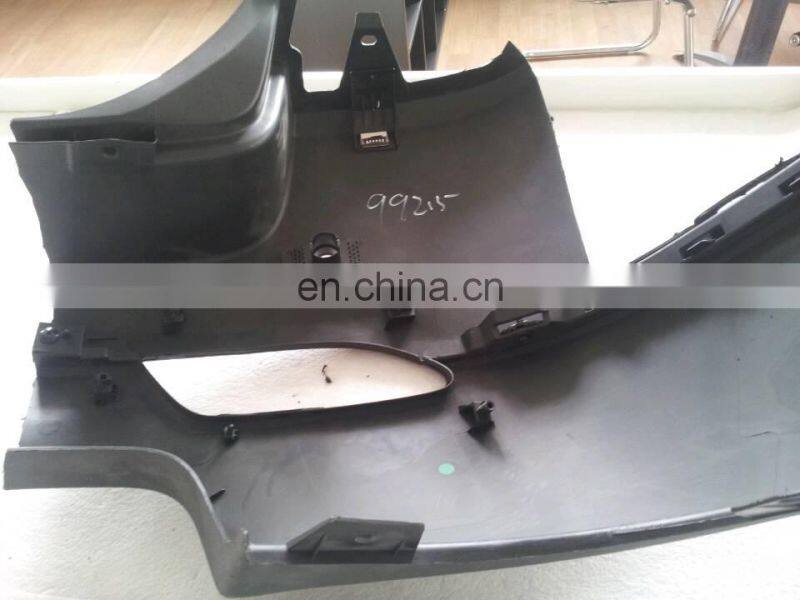

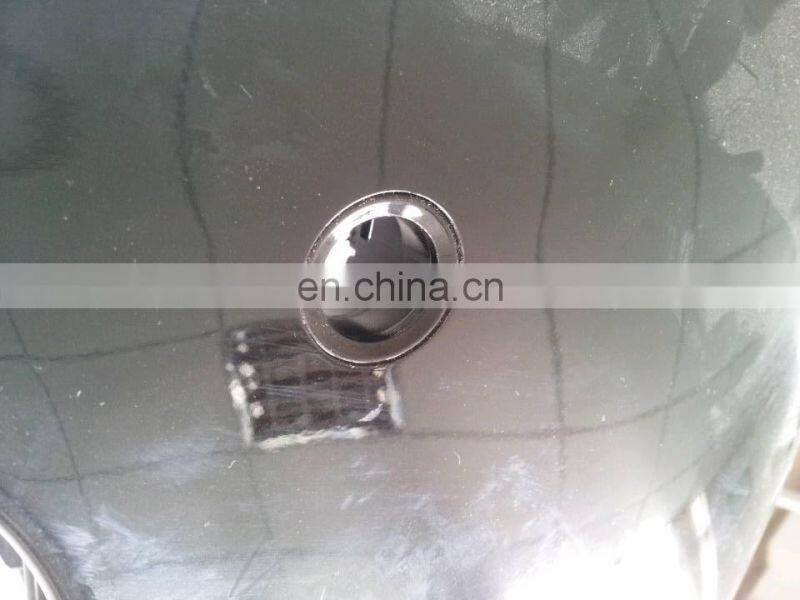

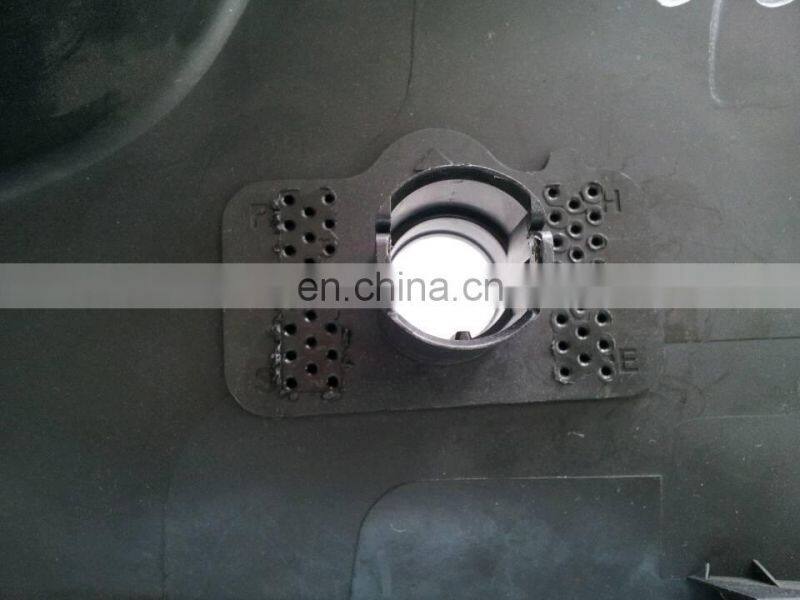

Product Welding Display :
Company Profile
Q1: Are you a manufacturer? |
A1: For over 15 years DIZO have developed an expertise in plastic joining, we master the design, the manufacturing and the maintenance of molds. |
Q2: Where is your factory? Can I visit your factory? |
A2: Dizo located in the city of Wuxi. |
Q3: How to buy your machine? |
A3: Please advise specific by mail, after confirm with machine model and price, we will sign a PI for confirming when the first deposit was done, machine manufacture begins, When the balance is complete we will ship out and provide the tracking number. |
Q4: Are we still need to install the machine after we got? |
A4: All of the machines will be tested ready before shipping, video, and manual will attached for use and master the machine well. |
Q5: How about your warranty? |
A5: 1. All of our products for one year warranty; 2. 24-hour telephone service; 3. A large stock of components and parts, easily worn parts; 4. Toolkit will attach with Machine. |
Q6: How can you guarantee we receive a good performance product? |
A6: Dizo applied series inspection process during production When the machine was finished. QC will provide inspection video and pictures for double check the quality control, and we will send the troubleshoot and solutions if needed; Also third part or customers come to the factory have field inspection is welcome. |
Q7: How soon can you deliver the equipment? |
A7: Dizo will deliver your equipment by within 7 days(stock available); Customized equipment or no inventory machine normally need 15-30days. |
Q8: Who do I talk to when I want to start an application? |
A8: Dizo has experiences of sales engineers to provide the assistance and support you require. |
Q9: Can I get a discount or can you do something with the price? |
A9: Dizo sales contact or Key Account Manager can answer your cost-related questions. Please email us. Thank you in advance. |
Q10: Packaging & Shipping |
A10: Provide sturdy plywood case packaging machines, safety and meet the international export standard. |
