Automotive Door Plank Plastic Welding Machine For Car Door Plank / Car Door Panel Welding With Three Axis Manipulator
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Customizable Automatic Ultrasonic Car Plastic Front and Rear Bumper Punching and Spot Welding Machine With Manual Filling
-
Automobile Car Door Panel Plastic Hot Riveting Machine
-
Customized Plastic Hot Riveting Machine Durable Servo Type Automobile Door Panel/Automobile Door Trim Panel Hot Riveting Machine
-
Automobile Hot Riveting Machine Plastic Cylinder Driving Car Door Panel Riveting Machine
-
Customized Plastic Hot Riveting Machine Durable Automobile Door Panel Cylinder Driven Door Riveting Machine
-
Plastic Filter Housing Hot Plate Welding Machine Welder for Car Urea Filter
Product Description
Products Description
Automotive Door Plank Plastic Welding Machine For Car Door Plank/ Car Door Panel Weling With Three axis Manipulator
DIZO company is a professional engaged in ultrasonic industrial equipment, plastic welding equipment, hot riveting welding equipment research and development, production, sales, service as one of the modern high-tech enterprises.
Can provide you with ultrasonic plastic welding machine, hot riveting welding equipment, plastic hot melt welding machine, plastic hot plate welding machine, high frequency welding machine, automobile special welding machine, non-woven special welding machine, non-standard welding machine and ultrasonic welding mold.
Parameter :
Service: | OEM/ODM |
Voltage: | 220V/380V |
Power: | 2KW/5KW Depend on Usage |
Frequency: | 50KHz |
Application: | Car door plank/Automotive plastic parts |
Driven Mode: | Pneumatic |
Operation Mode: | Semi-automated |
Controlling system: | PLC+ text controller |
Weight: | 2.5T-3.5T Depend on Usage |
Core selling points: | Accurate temperature control/Flexible Manufacturing/Low Maintenance Cost/Sustainable/Low Noise Level/High Safety Level/Easy to Operate/Long Service Life/High Rigidity/High-accuracy |

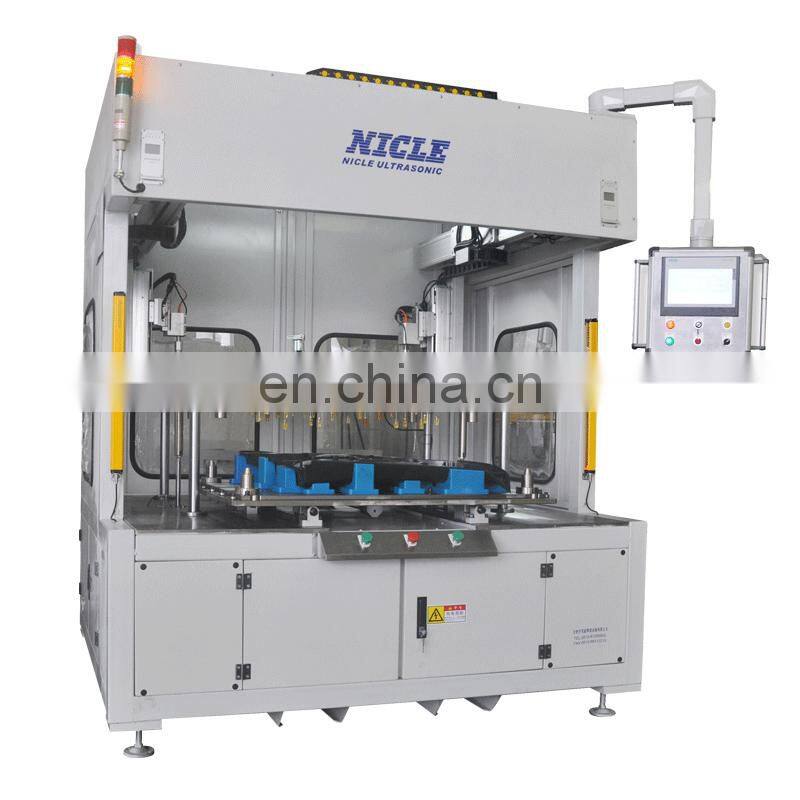

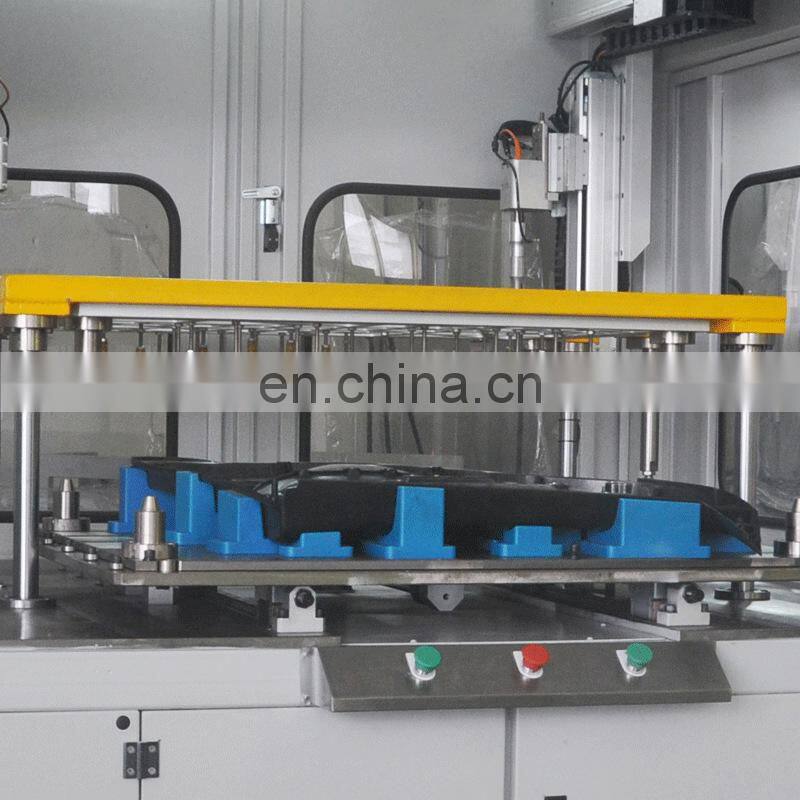

Details Images


Model | Punching + Welding | |
Power | 5KW | |
Maximum Product Size | 1900*1000*600 | |
Beat | 3min/ piece | |
Protected Mode | Infrared grating | |
Dimension of Equipment | 4500*2000*2500 | |
Weight | 3.5T | |
The parameters will change according to the custom-made machine | ||
Welding principle:
The end of the three-axis manipulator is installed with ultrasonic transducer and ultrasonic welding head for mobile welding products in three directions of XYZ. The bottom die is fixed when welding. The structure design is stable, the production efficiency is high, and the price is more favorable than that of the robot.
Product Feature:
1, According to the welding area of different car door panels, can design single point temperature control or integral temperature control mode of riveting;
2, PLC programmable microcomputer control system, man-machine interface window to adjust welding parameters;
3, The frame is welded by A3 square, which is stable and reliable overall.

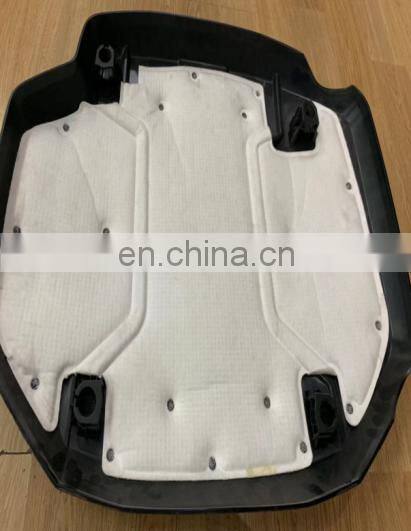

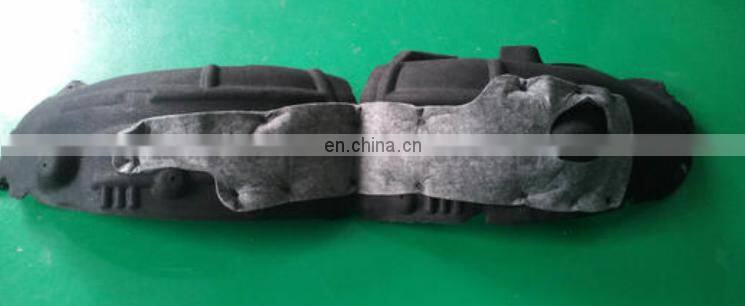

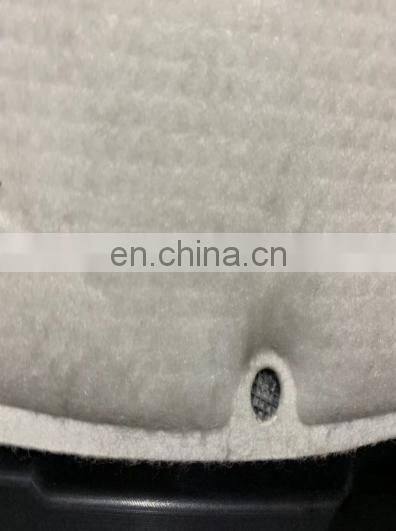

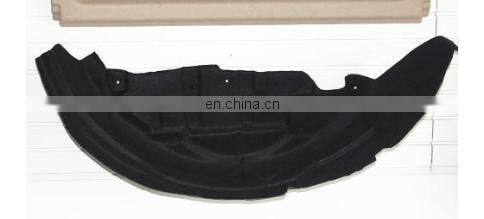

Product Welding Display :






Application:
1. Non-woven fabric for automobile sound insulation, heat insulation, vibration reduction, sealing and gap filling pad.
2, car trunk, coat rack, contour cover and other decorative non-woven fabric.
3, car door, back shelf substrate composite with non-woven fabric.
4, car seat non-woven fabric.
5, automobile air filter element non-woven fabric.
6, car ceiling, car floor leather, car interior carpet with enhanced finalization, anti-stick mold non-woven fabric.
Ralated Products

Company Profile





Q1: Are you a manufacturer? |
A1: For over 15 years DIZO have developed an expertise in plastic joining, we master the design, the manufacturing and the maintenance of molds. |
Q2: Where is your factory? Can I visit your factory? |
A2: Dizo located in the city of Wuxi. |
Q3: How to buy your machine? |
A3: Please advise specific by mail, after confirm with machine model and price, we will sign a PI for confirming when the first deposit was done, machine manufacture begins, When the balance is complete we will ship out and provide the tracking number. |
Q4: Are we still need to install the machine after we got? |
A4: All of the machines will be tested ready before shipping, video, and manual will attached for use and master the machine well. |
Q5: How about your warranty? |
A5: 1. All of our products for one year warranty; 2. 24-hour telephone service; 3. A large stock of components and parts, easily worn parts; 4. Toolkit will attach with Machine. |
Q6: How can you guarantee we receive a good performance product? |
A6: Dizo applied series inspection process during production When the machine was finished. QC will provide inspection video and pictures for double check the quality control, and we will send the troubleshoot and solutions if needed; Also third part or customers come to the factory have field inspection is welcome. |
Q7: How soon can you deliver the equipment? |
A7: Dizo will deliver your equipment by within 7 days(stock available); Customized equipment or no inventory machine normally need 15-30days. |
Q8: Who do I talk to when I want to start an application? |
A8: Dizo has experiences of sales engineers to provide the assistance and support you require. |
Q9: Can I get a discount or can you do something with the price? |
A9: Dizo sales contact or Key Account Manager can answer your cost-related questions. Please email us. Thank you in advance. |
Q10: Packaging & Shipping |
A10: Provide sturdy plywood case packaging machines, safety and meet the international export standard. |
