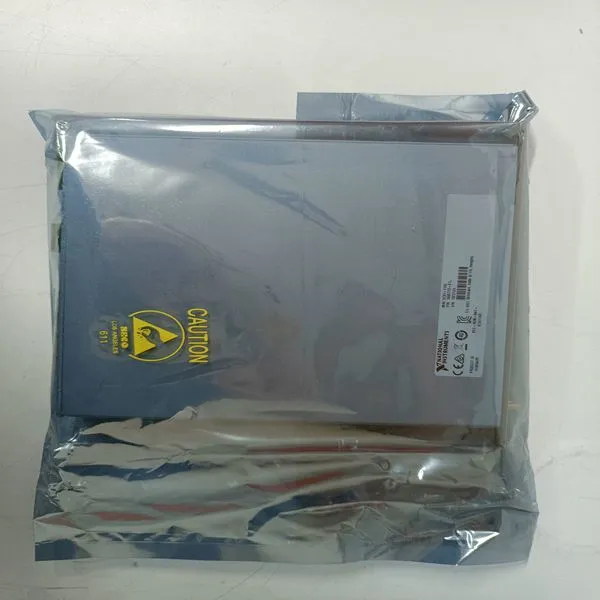

Help CenterSCXI-1193
Related Products
Brand:NI
Type:SCXI-1193
Origin: the United States
Warranty: 365 days
Colour: new/used
Shipping method: Courier delivery
Spare parts spare parts, the main DCS control system of PLC system and the robot system spare parts,
Brand advantage: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft etc. Various kinds of imported industrial parts
Changing Fuses – ModuleBus and CEX-Bus To change the TP830 internal ModuleBus and CEX-Bus fuses: 1. Using a blade screwdriver, release the two spring-loaded captive screws on the PM8xx cover. 2. Carefully remove the processor unit. 3. Identify both the ModuleBus and CEX-Bus fuse-holders to the right on the TP830 Baseplate. 4. Using a blade screwdriver, carefully unscrew the fuse-holder containing the defective fuse. Remove the fuse. 5. Insert a new fuse and replace the fuse holder. 6. Replace the processor unit and tighten the cover screws. 7. Check that the relevant LED lights up】The following sections describe elementary fault-finding procedures. For complete instructions contact ABB Support. PM8xx Processor Unit in Single CPU Configuration Table 26.
PM8xx – Fault-Finding Procedure Fault Possible Cause and Corrective Action F(ault) LED is ON Controller Re-start, (INIT), in progress. • Wait for Controller restart to finalize. Missing firmware. • Upgrade firmware. Firmware upgrade in progress. • Wait for FW upgrade to finalize. Firmware upgrade failure. • Use serial FW upgrade. Missing TB852 • Check TB852 connection (PM861, PM864, PM865). Other • Check controller log. F(ault) LED is flashing Firmware upgrade in progress: • Wait for FW upgrade to finalize. Other • Check controller log. R(un) LED is OFF No application loaded in the Controller. • Download application. Controller application failed. • Restart Controller (INIT push button). • Download application.
Battery voltage (Internal or External) is below 3.1 V or non-existent. • Install new battery. External battery cable disconnected. • Connect external battery cable. See Fault-Finding Table 30 on page 208
