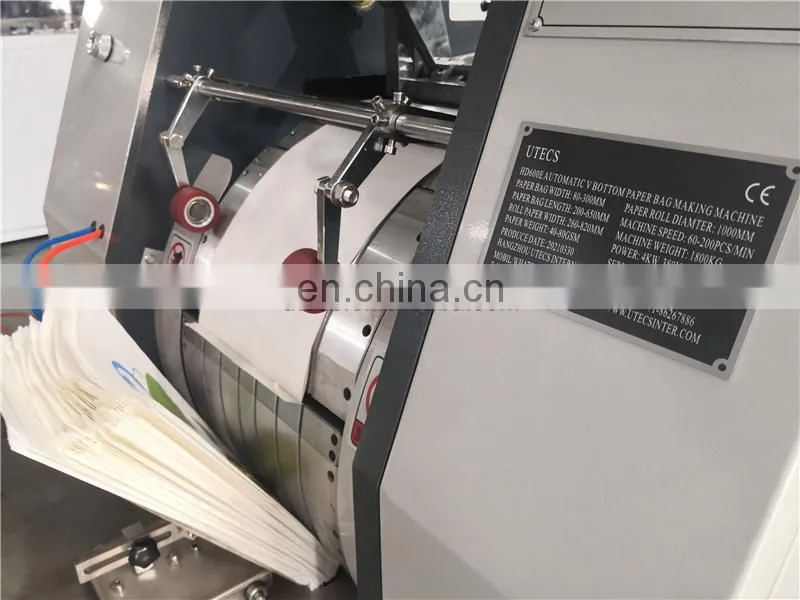

HD400E Automatic Degradable V-shaped Sharp Flat Bottom Paper Bag Making Machine photo-1

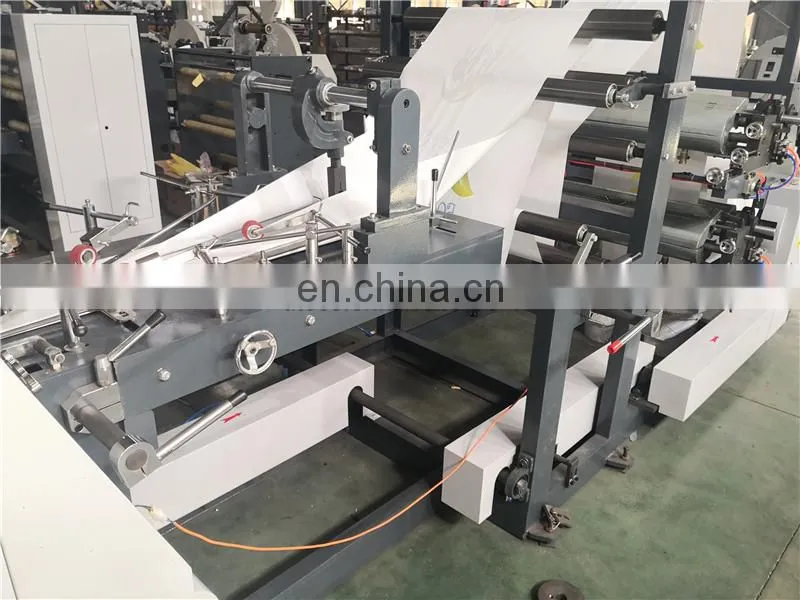

HD400E Automatic Degradable V-shaped Sharp Flat Bottom Paper Bag Making Machine photo-2

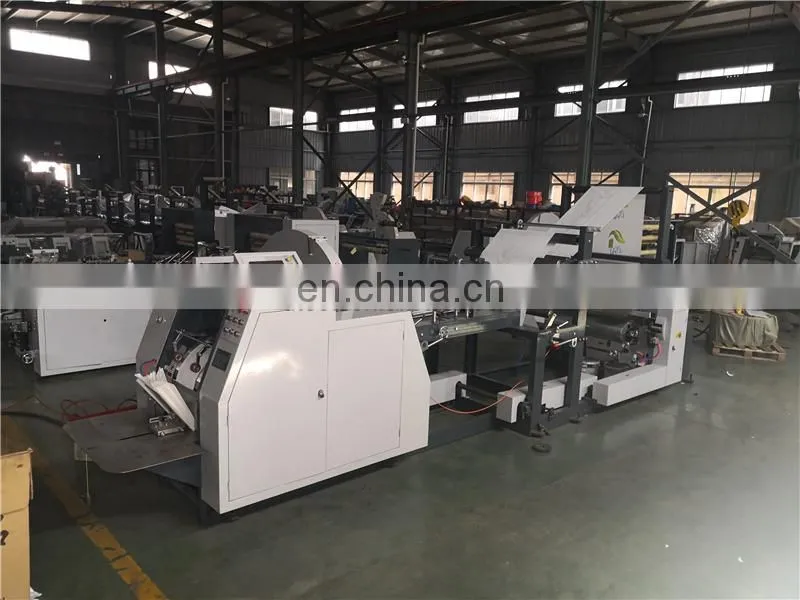

HD400E Automatic Degradable V-shaped Sharp Flat Bottom Paper Bag Making Machine photo-3

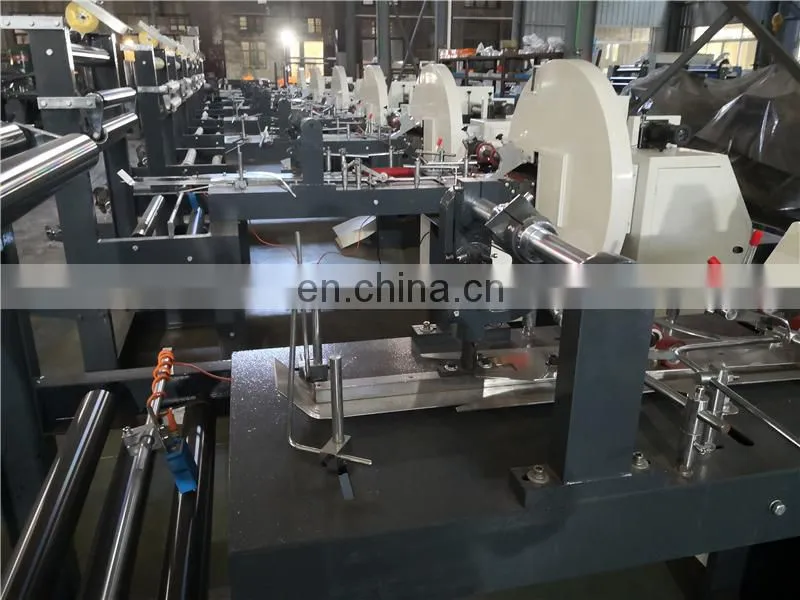

HD400E Automatic Degradable V-shaped Sharp Flat Bottom Paper Bag Making Machine photo-4

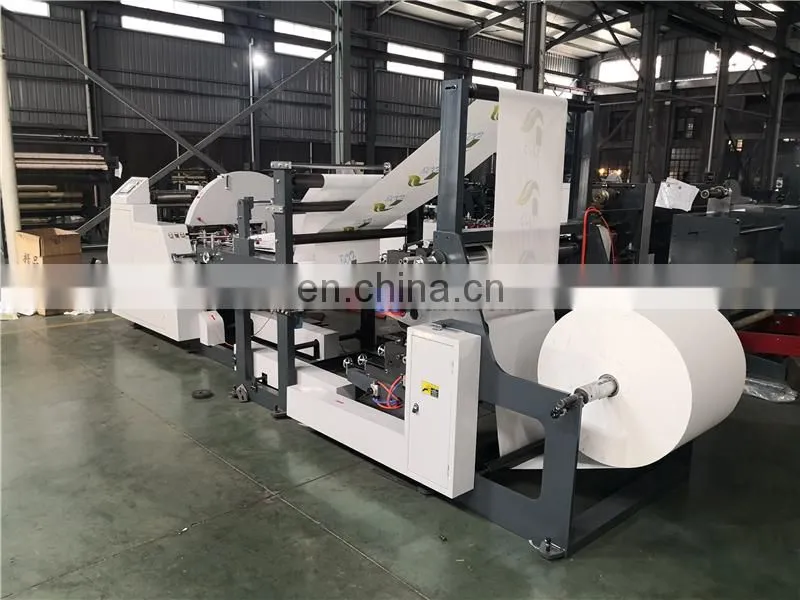

HD400E Automatic Degradable V-shaped Sharp Flat Bottom Paper Bag Making Machine photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Other
Year Established:
2006
Annual Export Value:
US$50 Million - US$100 Million
Contact Supplier Request Quote Chat Now
Hangzhou Utecs International Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us

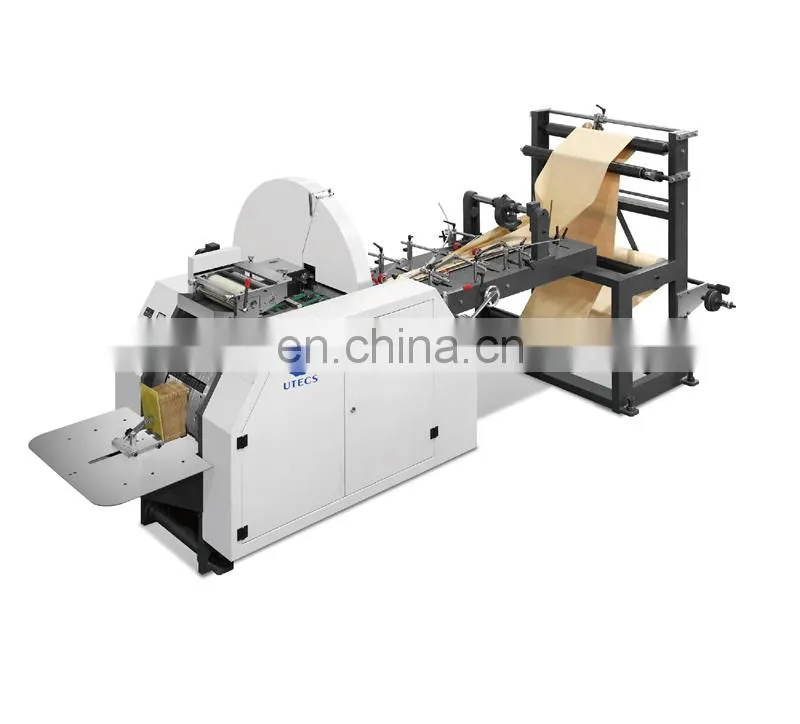

HD400E Automatic degradable v-shaped sharp flat bottom paper bag making machine

Videos

Video demonstration only for reference

Video: https://youtu.be/i7Hsh8Fmyf0

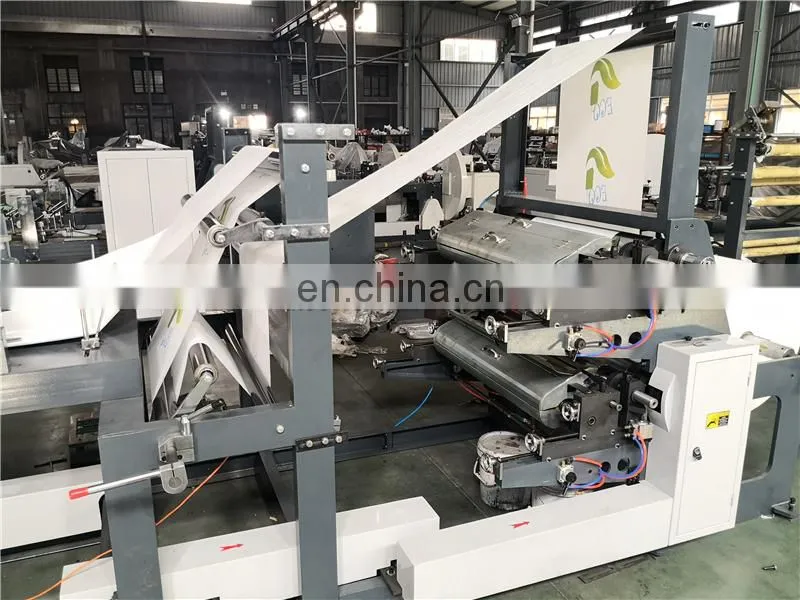

Video with 2 color printer: https://youtu.be/7kwvyWOfM_o



Product Description



Description:

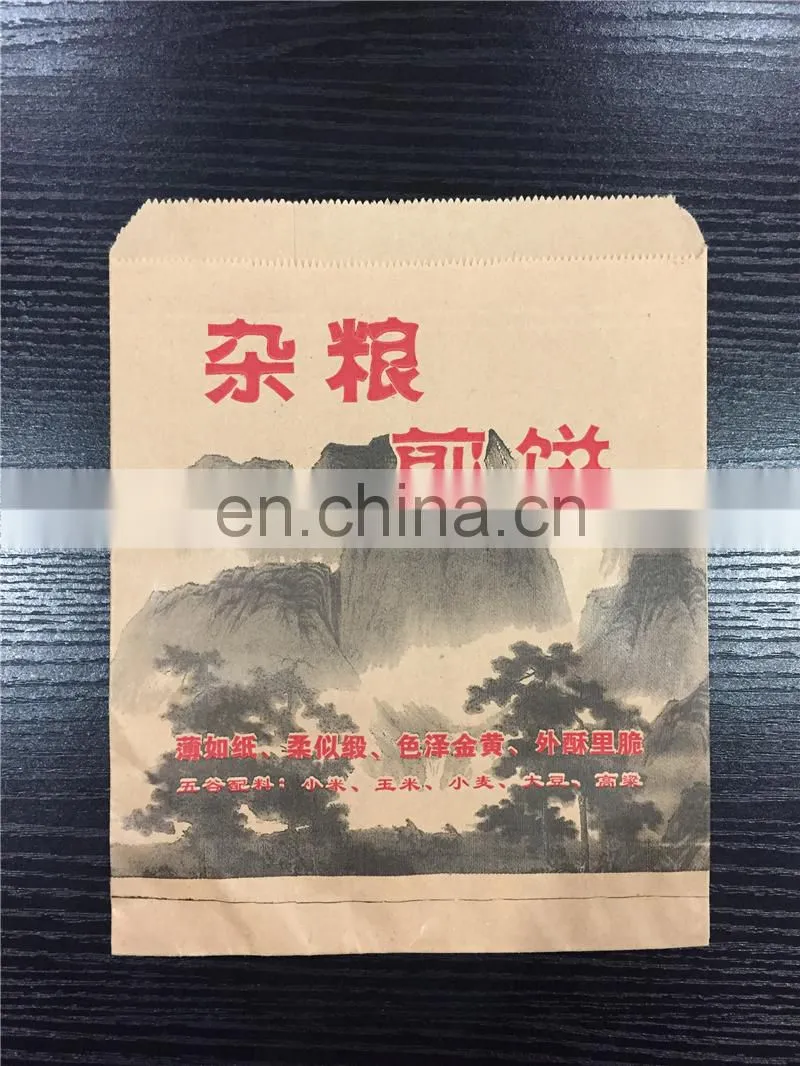

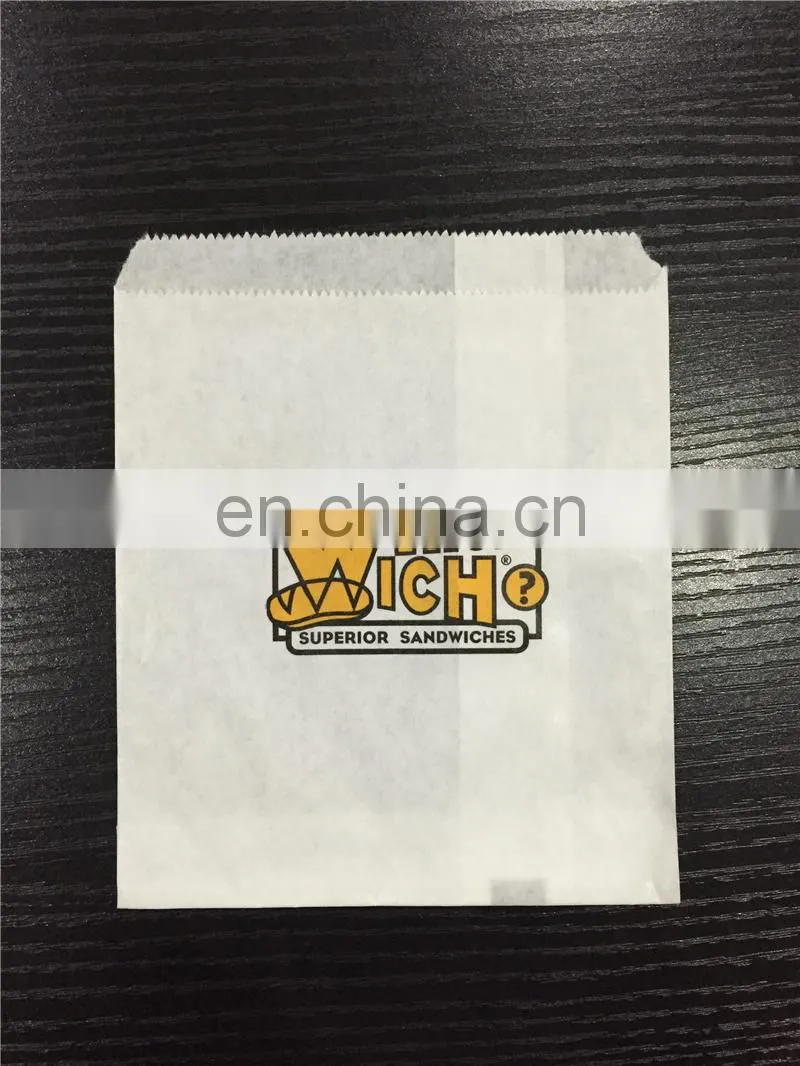

This machine forming the paper bag in one process from roll paper, edge folding, tube forming, cutting, gluing, bottom folding, bottom gluing and finishing bag. Easy operation, low power consumption, high efficiency. It is an ideal machine for producing food bags like bread bags, KFC bags and McDonald’s bags.



Features:

1. Controls bag length freely in a range through the human-machine interface

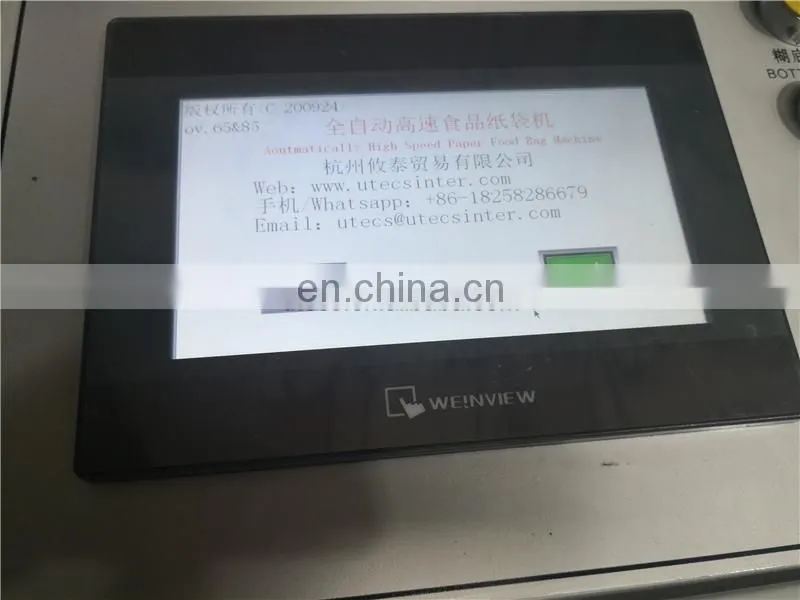

2. Adopt touch screen and PLC programmable control system, the work condition can be shown real time.
3. Equipped with an accurate photocell system for printed mark tracking
4. Color mark error stopping system
5. Double photoelectric sensor limit automatic correction control system
6. Material lifting adopt pneumatic lift structure.
7. Automatic lubrication system



Parameters:



Model

HD400E

HD600E

Bag length

160-400mm

220-650mm

Bag width

60-260mm

80-300mm

Side gusset

20-100mm

20-100mm

Paper thickness

40-80gsm

40-80gsm

Feeding mother roll width

260-720mm

260-900mm

Speed

60-400pcs/min

60-400pcs/min

Power

8kw

8kw

Weight

1500kgs

1800kgs

Dimension (L*W*H)

2850*2000*1750mm

3150*2550*1750mm





HD400E Automatic degradable v-shaped sharp flat bottom paper bag making machine

Detailed Images

HD400E Automatic degradable v-shaped sharp flat bottom paper bag making machine



HD400E Automatic degradable v-shaped sharp flat bottom paper bag making machine



HD400E Automatic degradable v-shaped sharp flat bottom paper bag making machine



HD400E Automatic degradable v-shaped sharp flat bottom paper bag making machine

 HD400E Automatic degradable v-shaped sharp flat bottom paper bag making machine



HD400E Automatic degradable v-shaped sharp flat bottom paper bag making machine







HD400E Automatic degradable v-shaped sharp flat bottom paper bag making machine



HD400E Automatic degradable v-shaped sharp flat bottom paper bag making machine



HD400E Automatic degradable v-shaped sharp flat bottom paper bag making machine



HD400E Automatic degradable v-shaped sharp flat bottom paper bag making machine



HD400E Automatic degradable v-shaped sharp flat bottom paper bag making machine



HD400E Automatic degradable v-shaped sharp flat bottom paper bag making machine



HD400E Automatic degradable v-shaped sharp flat bottom paper bag making machine



HD400E Automatic degradable v-shaped sharp flat bottom paper bag making machine



HD400E Automatic degradable v-shaped sharp flat bottom paper bag making machine



HD400E Automatic degradable v-shaped sharp flat bottom paper bag making machine

 HD400E Automatic degradable v-shaped sharp flat bottom paper bag making machine

Service Team

HD400E Automatic degradable v-shaped sharp flat bottom paper bag making machine

 Pre-sale Service                                               After-sale Service

A: Inquiry and consulting support                       A: English manuel and video instruction

B: Sample testing support.                                 B: Your technians can get trained in my factory

C: Invoice and Contract confirmation.                C: Engineers available for overseas if necessary



Certifications

HD400E Automatic degradable v-shaped sharp flat bottom paper bag making machine

FAQ

HD400E Automatic degradable v-shaped sharp flat bottom paper bag making machine1.Q: What information should i let you know if i want to get a quotation?

A: What is your Max and Min product size in mm?

B: What is your paper thickness in GSM?

C: Some photos of your finished products

2.Q: Are you a manufacturer?

A: Yes we have been manufacturing such machines over 20 years and also we are a professional exporter.

3.Q: What about the payment term?

A: Mostly 30%T/T in advanced, 60% when machine is finished after inspection and last 10% against copy of shipping documents..

4.Q: What is the warranty?

A: Two year warranty after sales (During the warranty period, we respond for free parts dispachment and the buyer is only required to cover the courier express once the machine has any problems. However we do not respond for the consumables and parts broken by mistakingly operation)

5.Q: What is your aftersale service?

A: Any questions will be responded within 24 hours by email, skype, phone call or Whatsapp/Wechat (+86-18258286679). In addtion, we have professional engineer available for overseas service..

6.Q:What is the delivery time?

A: Mostly it takes 10 to 30 workdays after receiving the deposit and confirming the drawing or samples as required.
