Home > Products > Ungrouped > UTM420 High Speed Automatic Adhesive Label Platen flatbed sticker die cutting machine
UTM420 High Speed Automatic Adhesive Label Platen flatbed sticker die cutting machine
- 1000 per Month
- T/T Credit Card
You May Like
-
UTM320/420 Automatic Flatbed single double side coated adhesive tape Label Die Cutting Machine, roll sticker die Cutter
-
PF250 Automatic Disposable Paper Paint Filter Cone Forming Machine funnel welding machinery
-
UTB650 high resolution ratio Flexo Photopolymer Plate Mounting machine, flexographic polymer printing cylinder roll Mounter
-
GDFG900 medium middle speed Automatic Crash Lock Bottom Folder Gluer, gift food packaging cardboard box folding gluing machine
-
GDFG900 Auto E F flute corrugated paper box Crash Lock Bottom Folder and Gluer, cosmetics medicine box gluing folding machine
-
UTS320 PVC OPP Sticker Label Automatic adhesive tape Cutting and rewinding machine with 3 inch air shaft
Product Description

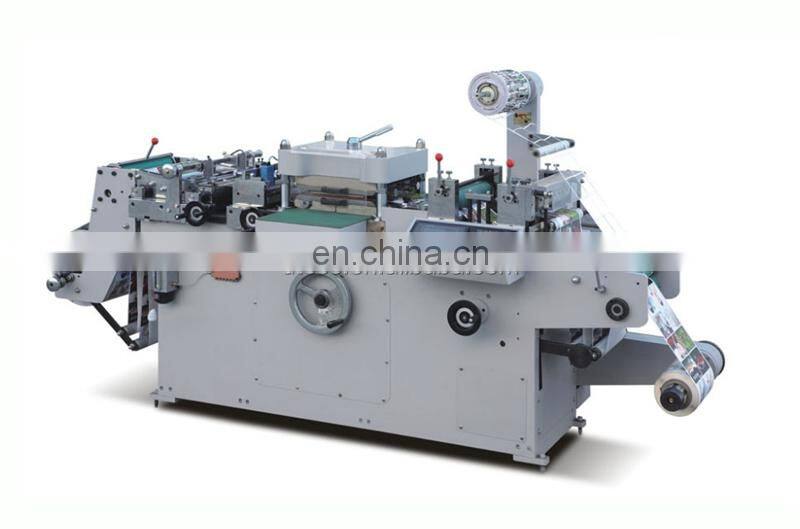

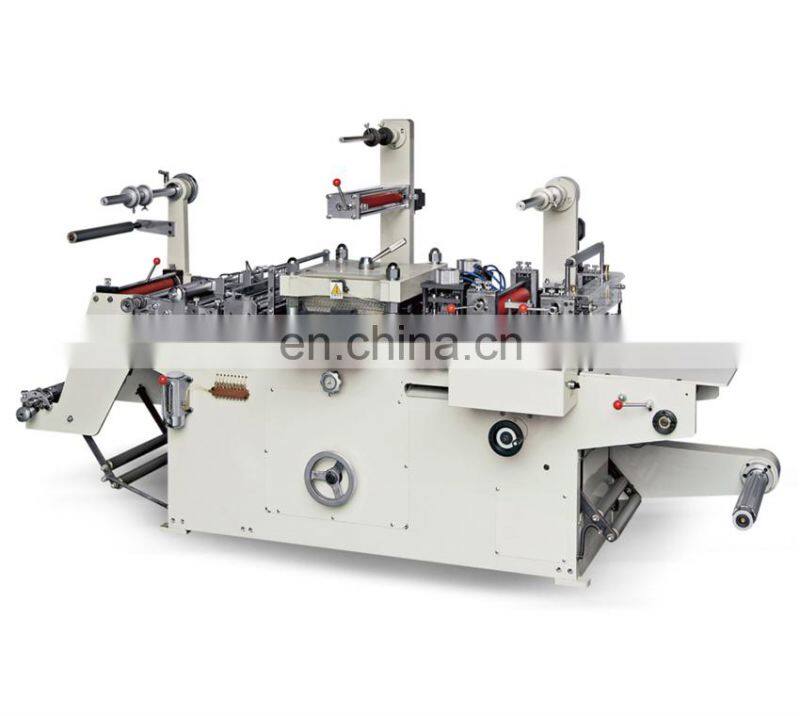

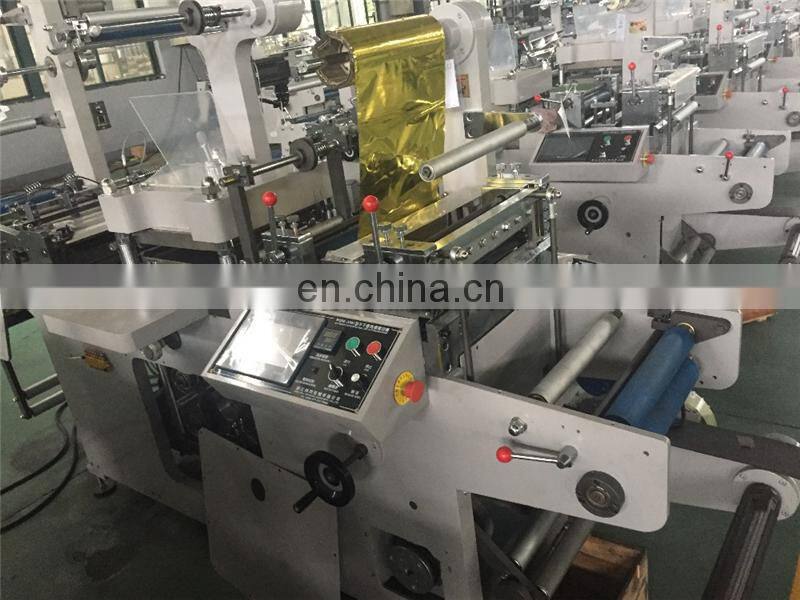

UTM420 High Speed Automatic Adhesive Label Platen flatbed sticker die cutting machine
Video demonstration only for reference
Video 01: /watch?v=N5EOlLQY07U
Video 02 (roll to sheet): /watch?v=WgZEGjFXW38
Standard Functions: unwinding, die cutting, waste discharging, label sheeting and label rewinding
Additional Functions: 1. hot stamping 2. hole punching 3. lamination
Features:
This is flatbed die punching machine in high precision. The paper feeding process is controlled by servo motor. Three photoelectric switchesequipped makes sure that process of web-guiding, die cutting, laminating, waste rewinding, paper sheeting or rewinding can be finished in the process. The machine is applicable to die cut self adhesive labels, film labels and laser anti-false labels etc. It is an ideal auxiliary of flexo press, screen printing machineand other printer etc.
Parameters:
|
Model |
UTM320 |
UTM420 |
|
Die Cutting speed |
200 cuts/min |
200 cuts/min |
|
Max Feeding Diameter |
650mm |
650mm |
|
Max Rewinding Diameter |
600mm |
600mm |
|
Max web width |
350mm |
450mm |
|
Max Die Cutting Width |
340mm |
440mm |
|
Max Die Cutting Length |
340mm |
440mm |
|
Positioning Precision |
±0.10mm |
±0.10mm |
|
Main Motor power |
2.2kw |
3.7kw |
|
Total Power |
3.5kw |
5.5kw |
|
Power Supply Voltage |
220v±10% |
380v±10% |
|
Weight |
(about)1500kg |
(about)1800kg |
|
Overall Dimension |
2800x950x1400mm |
2800x1050x1400mm |
Pre-sale Service After-sale Service
A: Inquiry and consulting support A: English manuel and video instruction
B: Sample testing support. B: Your technians can get trained in my factory
C: Invoice and Contract confirmation. C: Engineers available for overseas if necessary
1.Q: What information should i let you know if i want to get a quotation?
A: What is your Max and Min product size in mm?
B: What is your paper thickness in GSM?
C: Some photos of your finished products
2.Q: Are you a manufacturer?
A: Yes we have been manufacturing such machines over 20 years and also we are a professional exporter.
3.Q: What about the payment term?
A: Mostly 30%T/T in advanced, 60% when machine is finished after inspection and last 10% against copy of shipping documents..
4.Q: What is the warranty?
A: Two year warranty after sales (During the warranty period, we respond for free parts dispachment and the buyer is only required to cover the courier express once the machine has any problems. However we do not respond for the consumables and parts broken by mistakingly operation)
5.Q: What is your aftersale service?
A: Any questions will be responded within 24 hours by email, skype, phone call or Whatsapp/Wechat (+86-18258286679). In addtion, we have professional engineer available for overseas service..
6.Q:What is the delivery time?
A: Mostly it takes 10 to 30 workdays after receiving the deposit and confirming the drawing or samples as required.
Wooden Case Loading and Transport
YOU ARE WELCOME TO CONTACT US ANYTIME AVAILABLE.
Mobile/Whatsapp/Wechat: +86-18258286679
Email: utecs@ , utecsinter@ , danielsuer@
Skype: danielsuer
Web:
