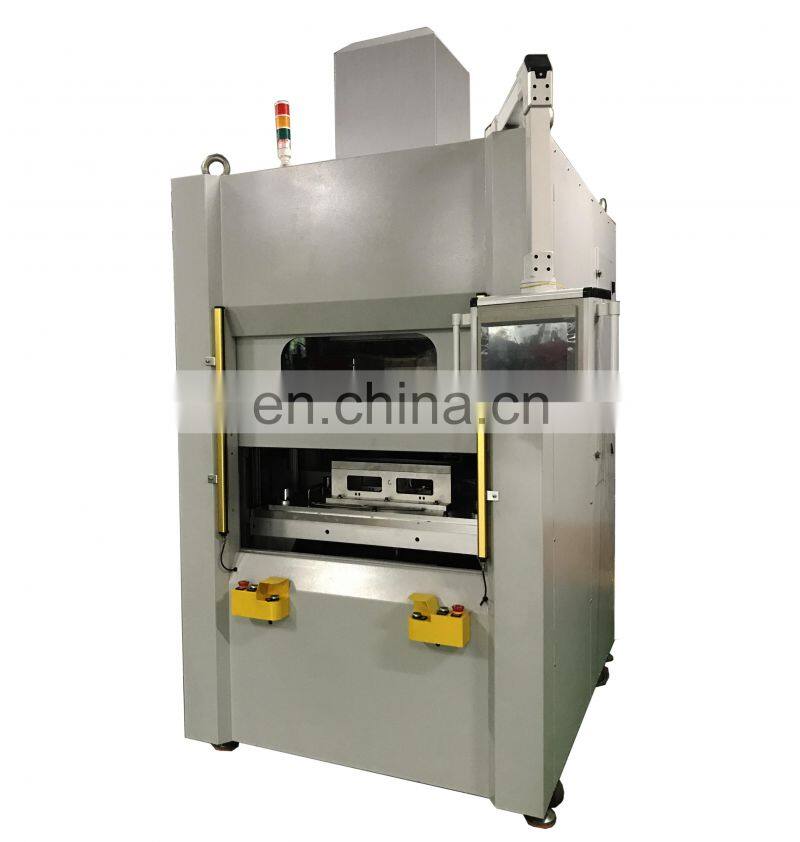

Servo Motor Control Box Hot Plate Plastic Welding Machine

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Description

This hot plate plastic welding machine use full Japan panasonic servo motor control , it's more precision when control the welding depth ,also we can digital view and set the welding depth .also we use quick change mold design ,it can save much time when change new mold .Of course if you have limit on budget ,we can also offer the pneumatic cylinder or hyualic control type .

Anyway BDS sonic can offer the different automatic hot plate welding and ultrasonic welding solution according to your budget .If you have the needs now ,please do not hesitate to contact with us

SPECIFICATIONS FOR SERVO HOT PLATE PLASTIC WELDING MACHINE

Model	BDS-640SMV
Voltage	380V
Frequency	50/60Hz
Power	8000W
Pressure	1-7 Bar
Weld time	0.01-9.99s
PLC control	Yes
Dimensions	170016002400mm
Weight	900KG

Main Features

1. PLC and touch-screen control system, easy operation, safety, using reliable.
2. Digital temperature control function, welding temperature stability.
3. With linear Guide , high-precision molds, guarantes product quality
4. Good watertight, airtight welding results after welding .
5. large or irregular workpieces welding, it'svery easy.

6.Just change the mold , it could be used for different producs welding

Product Application

Widely used in the automotive industry, electronic industry, medical industry, household appliances, woven apparel, office supplies, packaging industry, toy industry and so on.

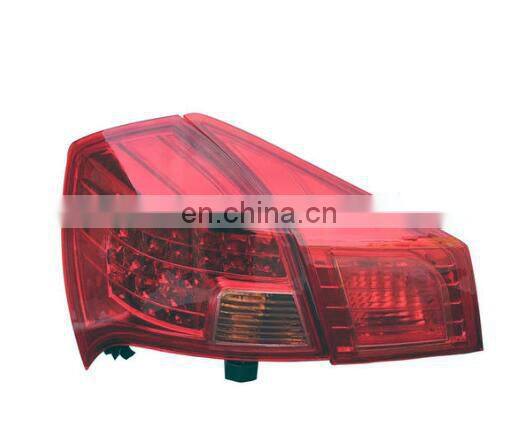

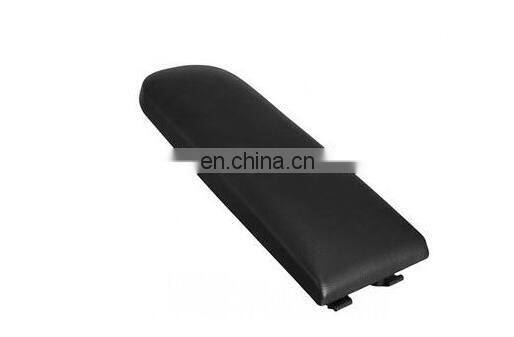

Such as plastic body parts, car doors, car dashboard,lights,mirrors, sun visor, interior parts, filters, reflective material, reflective spike,bumper, cable,motorcycle plastic filter, radiator , tanks,pallet plates.

Certifications

Detailed Images

Machine Parts

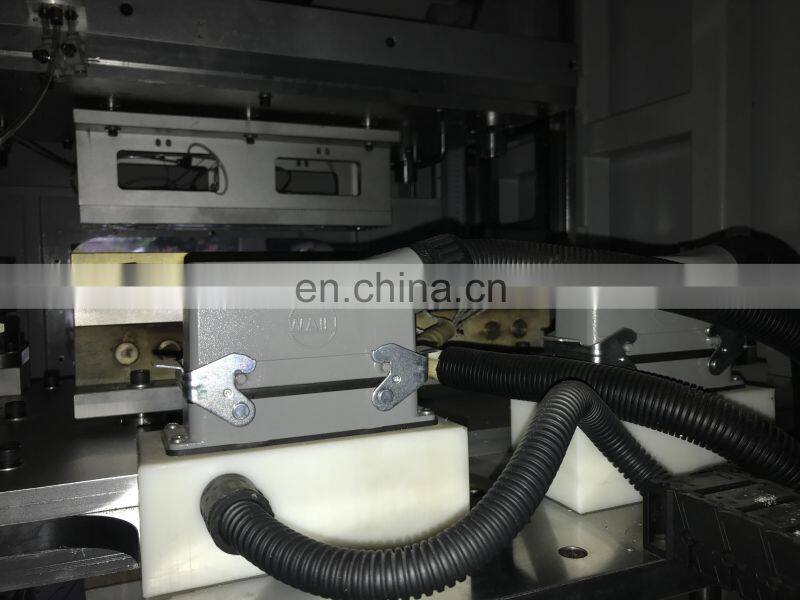

Name: Quick chang plug

Brand:/

Original: Taiwan

Use quick change military plug ,save much time when we need change the other mold .

Machine Parts

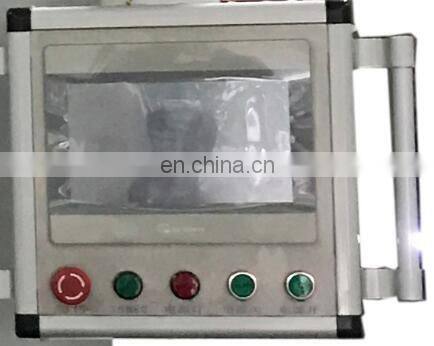

Name: Touch screen
Brand: Viewwein
Original: Taiwan
With Taiwan 10" touch screen interface ,it's more easy operation

Machine Parts

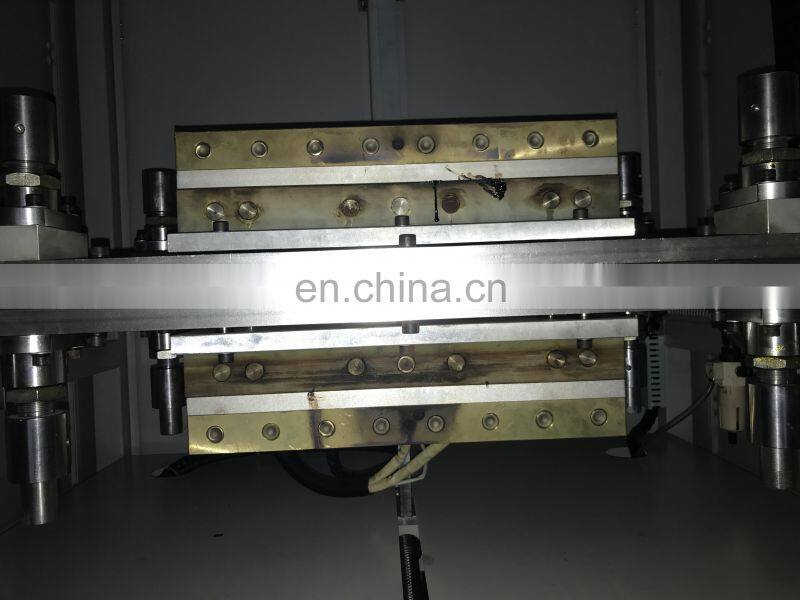

Name: Hot plate mould
Adopt the high quality brass material ,fast heating speed and life is long

Machine Parts

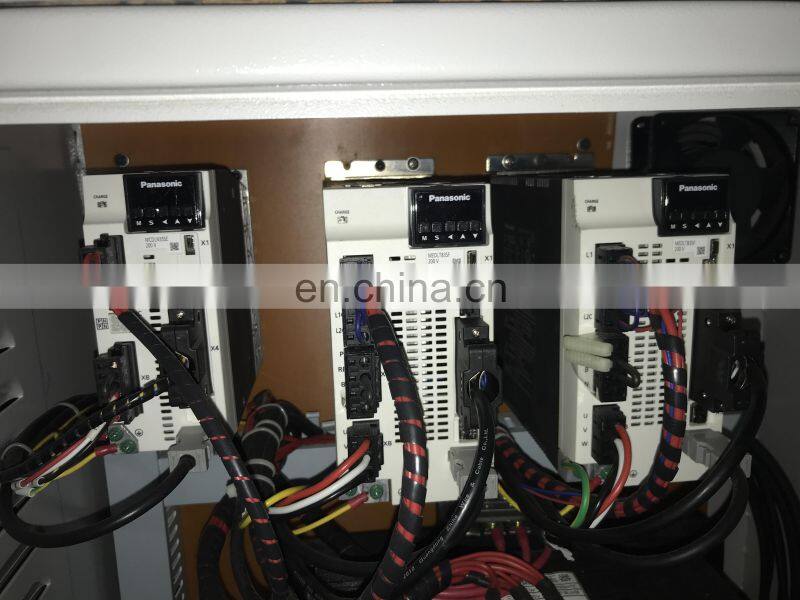

Name: PLC ,Servo motor driver
Brand:Panasonic
Original: Made in Jpan
Good quality ,more stable and preicsion control with servo motor control

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
