3D Plastic Glasses Frames Ultrasonic Welding Machine

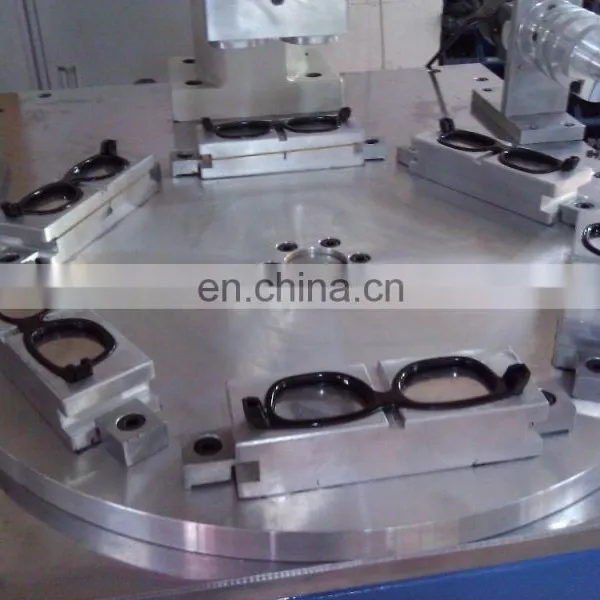

This ultrasonic welding machine is designed for welding the 3D glasses plastic frame . it's with 6 positions . just manual feed
the plastic glasses frame , then it will auto .run and weld and discharging with robot arm . it's fast and save time .
And about the column of ultrasonic welder , we enlarge the wall thickness of the column so that on shaking when horn down to
welding .
Also for protect the surface of plastic frame when welding , we add the film feeding protect device .
2. Special steel booster ,it's solid mount ,life is long
3. Levelling easy adjustable
4. the ultrasonics is average and stable
5. Especially suitable for large objects and waterproof precision plastic products welding.
6. Imported Aluminium 7075 material on horn ,titanium and steel horn optional
7.CE approved
8. We can according to your requirement to design the automatic machine with your production line
Model | OS005 | OS005 | OS005 | OS005 | OS005 |
(Desk Type) | |||||
Frequency | 20KHZ | 20KHz | 15KHZ | 15KHZ | 15KHZ |
Output Power | 1,500W | 2000W | 2,200W | 2,600W | 3200W |
Welding Capability | 130 m/m φ | 160 ~ 200 m/m φ | 160 ~ 200 m/m φ | 160 ~ 200 m/m φ | 200 ~ 250 m/m φ |
Dimension | 650X410X1100 mm | 650X410X1100 mm | 650X410X1100 | 650X410X1100 | 650X410X1100 |
mm | mm | mm | |||
Net Weight | 98 kg | 100 kg | 100 kg | 100 kg | 110 kg |
Line Source | 220V 10A 1P | 220V 10A 1P | 220V 10A 1P | 220V 10A 1P | 220V 5A 1P |
