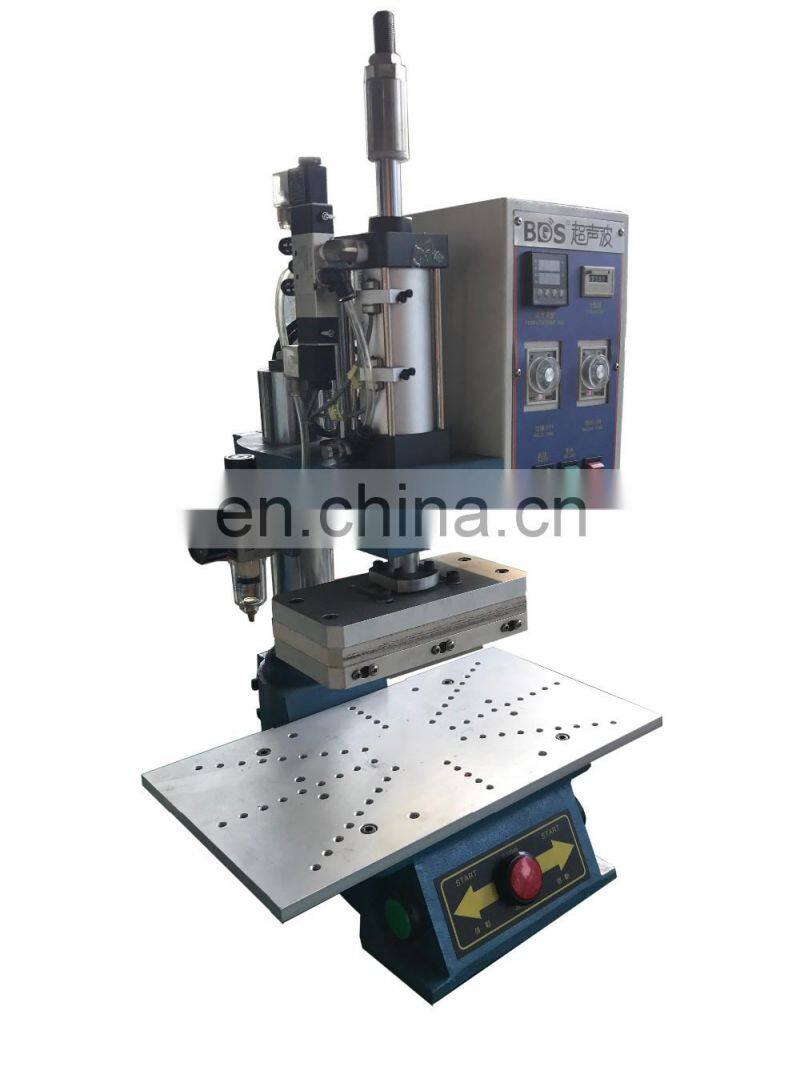

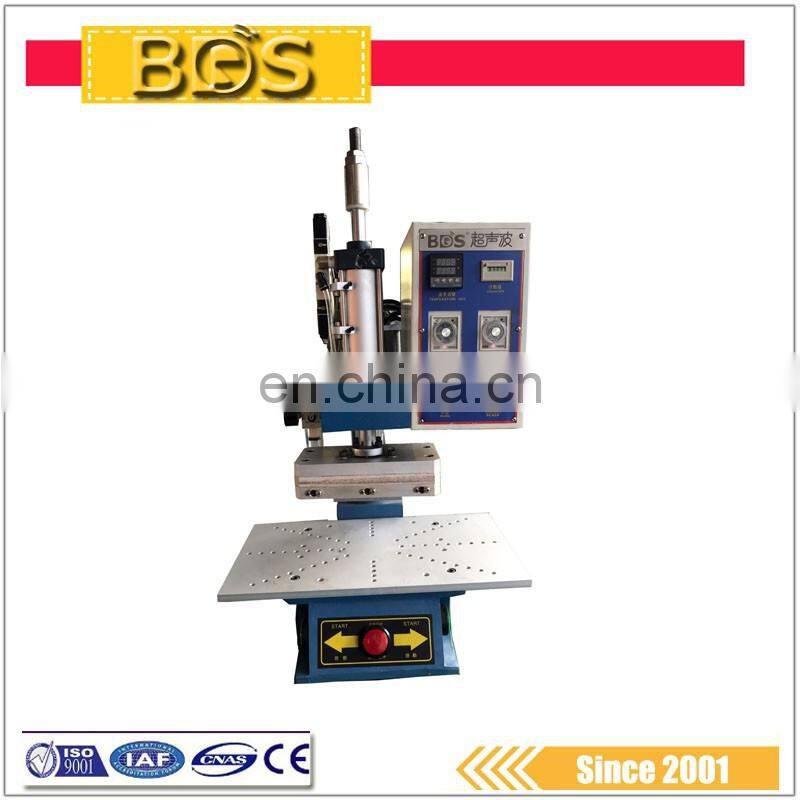

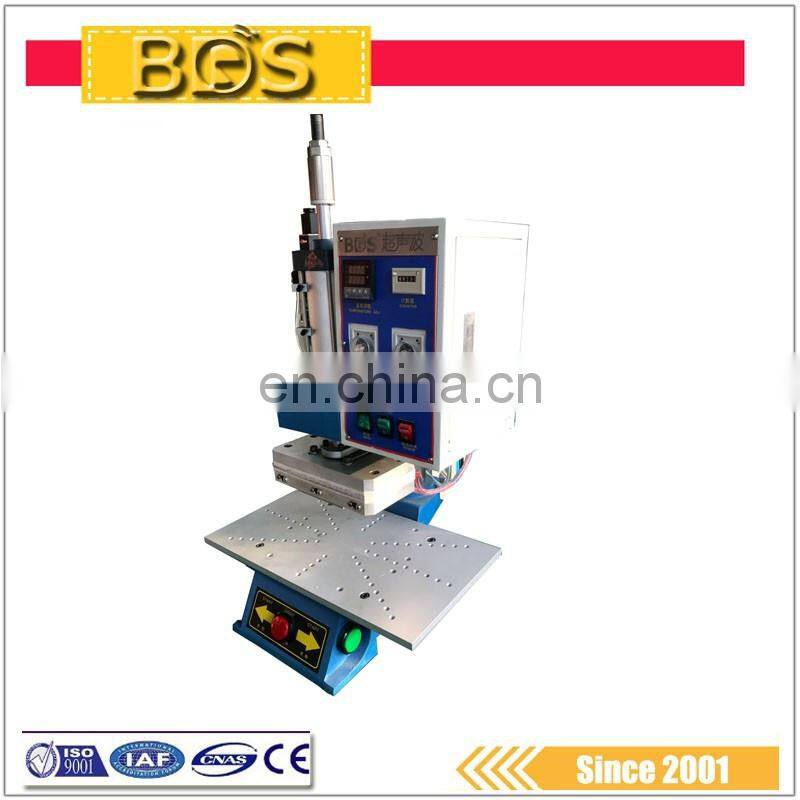

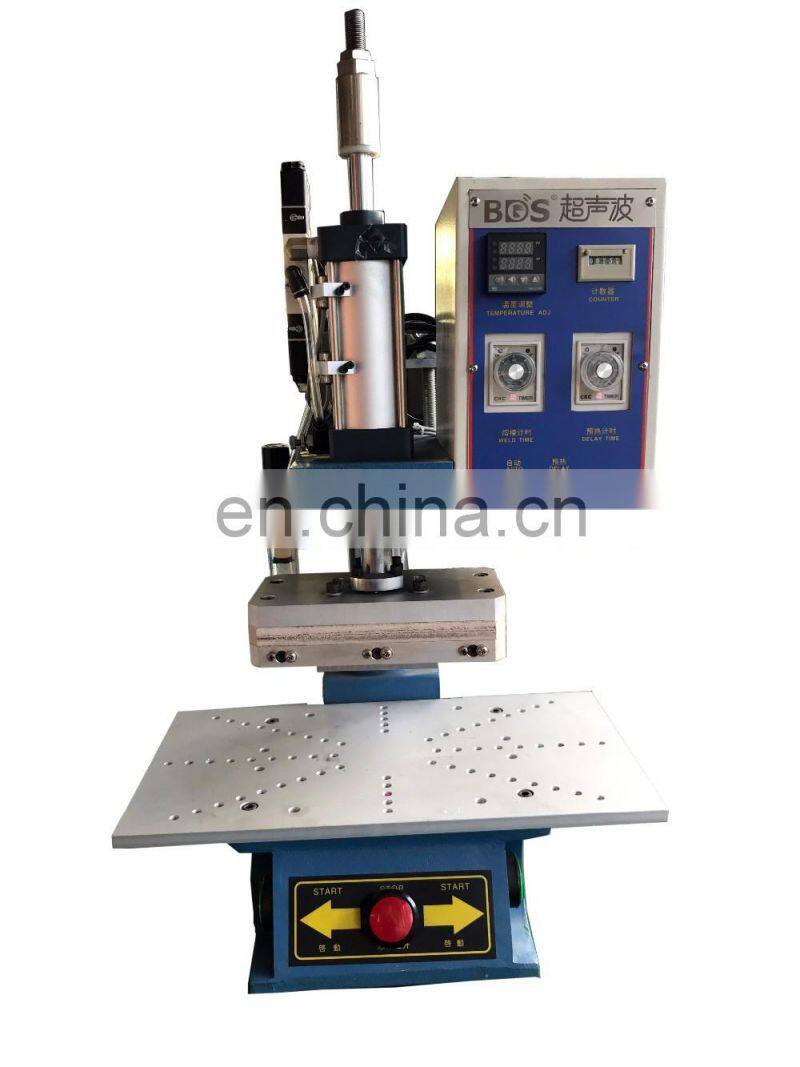

Pneumatic Cylinder Control Type Mini Hot Welding Machine For Plastic Welding

Product Application

The hot welding machine adopt the impluse type welding theory . and use the pneumatic cylinder to control the welding head up and down . the worktable size could be according to your product size to do relate design .This hot welding machine could be used for screw embedding to plastic hole , hot stake welding the plastic,fabric or film welding etc . Different application ,the welding tool and machine design would be different

Main Features

1. up and down cylinder stoke adjustable
2. Low-power heat up, precise temperature control temperature, so temperature does not exceed ± 0.3 degrees.
3. Auto. counting
4. Mini design , take smaller space
5. cold / hot head dual process structure, thermostatic heating, automatic feeding and out of the work platform
6. doulbe start button control ,it's more safety
7. imported high-precision heating tube and temperature sensor , ensure the welding temperature is highly accurate.

Machine Parts

Name:  Cylinder

Brand:AIRTAG

Original: TAIWAN

Taiwan airtag cylinder ,it's stable and durable

Main Features

* Double Start button

Design with doulbe start button , it's more safety for operation .

Machine Parts

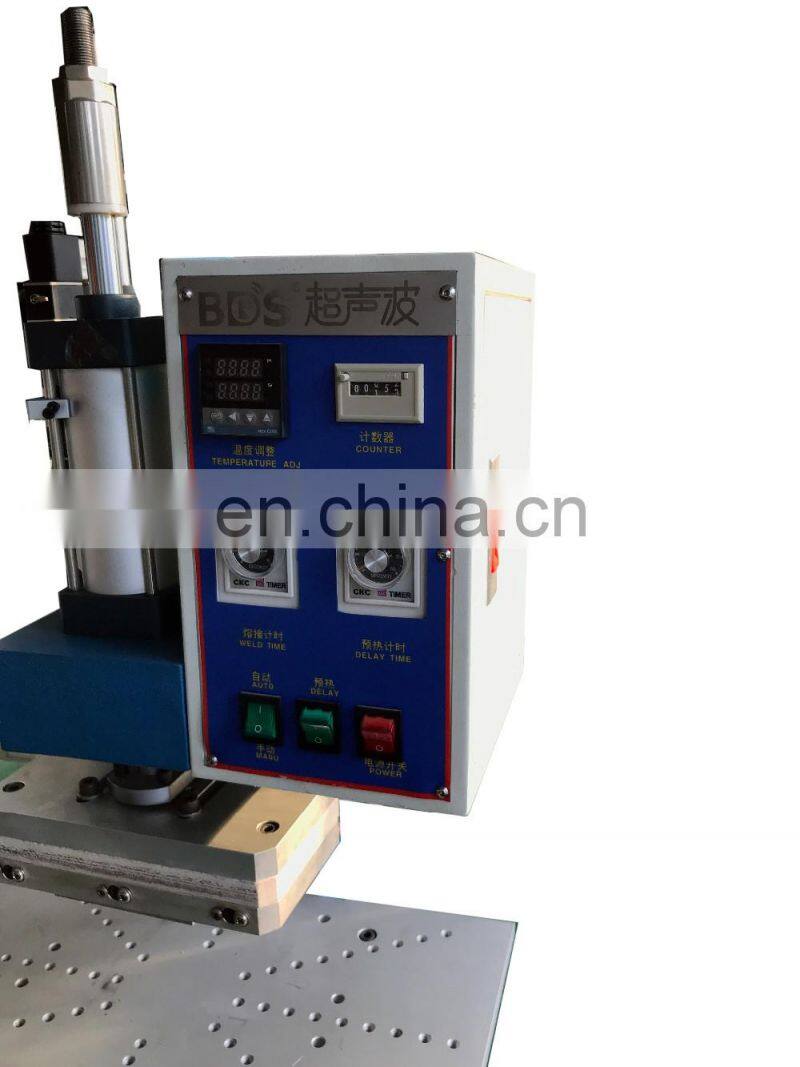

Name: Control box
Brand: BDS

This control box with auto. counting, manual /auto, temerapture set , time set etc function .

Main Features

* Stable Control ,Precision control

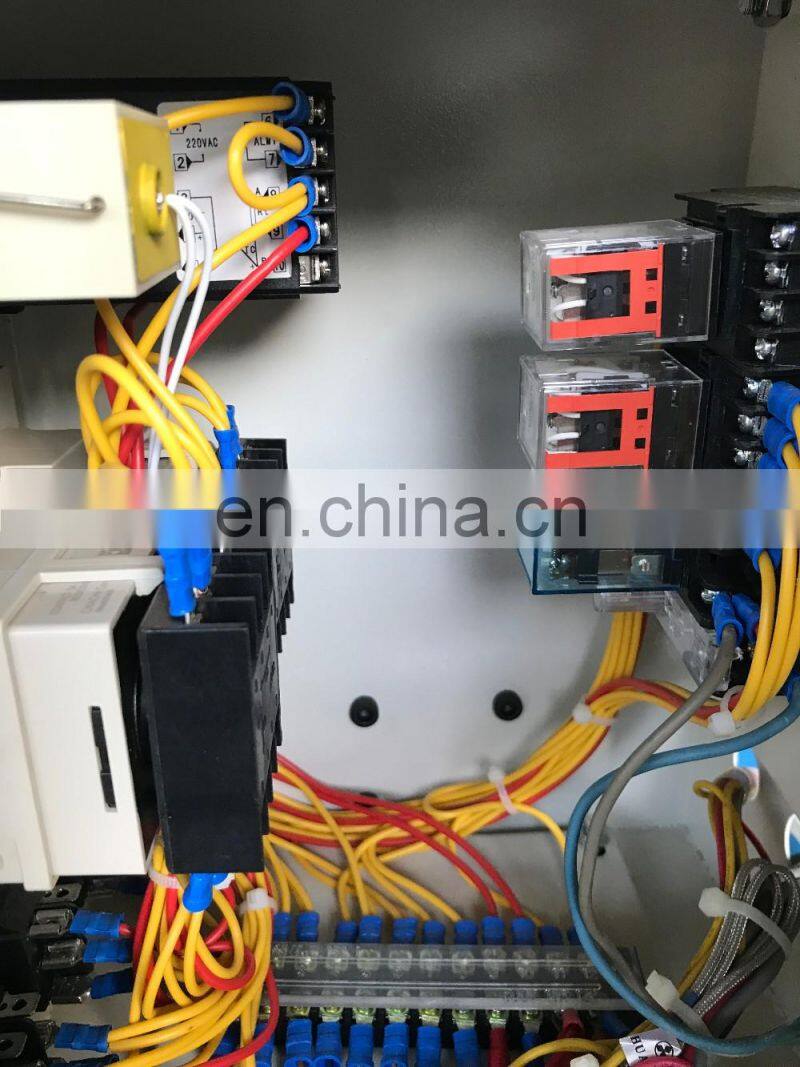

The inside control box  use the good quality brand electric components and import temperature sensor
