Medical Needle Tube Toughness Tester
The medical needle tube toughness tester is designed and manufactured according to the relevant provisions of GB18457-2015 (EQVISO 9626-1991) "Manufacturing stainless steel for Medical Use".Specially used to test the toughness of medical needle tubes.

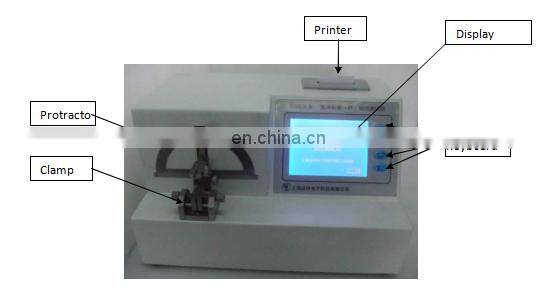

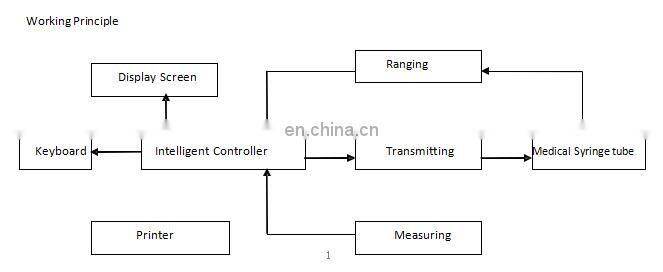

The medical needle toughness tester is composed of intelligent controller, positioning mechanism, swing mechanism, fixture and so on.The intelligent controller consists of CPU, motherboard, LCD display, power supply and other parts.
The whole tester has a high degree of automation. After the tested object is installed, the user can automatically complete all the operations by just pressing the unique operation key.
Environment:
| Working Temperature: | 5~40℃ |
| Relative Humidity: | 45-80% |
| Power Supply: | 220V ± 22V |
| Frequency : | 50 HZ ± 1HZ |
Display Method:
1.It adopts a four-digit high light LED LCD display
2. It uses a three-position switch to set the bending angle of the tested object.
3.Consumption Power:200VA
4. Testing Frequency:0.5HZ±0.025HZ.
5.Bending Angle:15º,20º,25º,the error should not be greater than ±2º
6.Apply 20 times forces in both directions.
