Medical Injection Needle (tube) Rigidity Tester for Disposable Syringe

Medical Injection Needle (tube) Rigidity Tester

The medical injection needle (tube) rigidity tester is designed and manufactured according to the relevant provisions of GB18457-2015 "Stainless steel needle for manufacturing Medical Devices".It is specially used to test the rigidity of medical injection needle (tube).

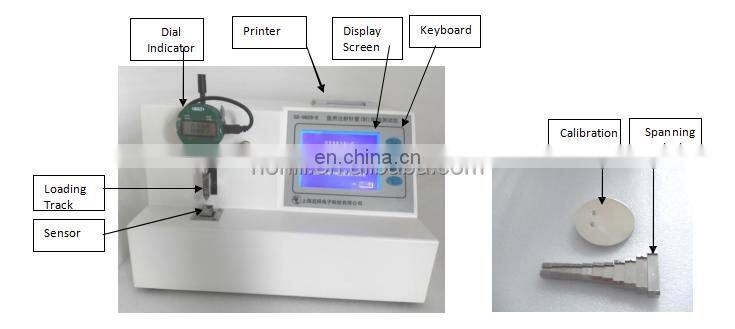

Medical injection needle (tube) rigidity tester is composed of intelligent controller, force measuring mechanism, ranging mechanism, printer and other parts.The intelligent controller consists of CPU, motherboard, LCD, keyboard, power supply and other parts.

The screen is displayed in Chinese/English window, and the keyboard controls the cursor to select, operate and set. You can follow the prompts without training.

 Environment:

Display Method:

1. It  uses  320×240  single  color  LCD  screen,  all  Chinese  or  English   window  display.

2. The keyboard is used to control the menu on the LCD screen and the analog keyboard on the LCD screen.

3. Consumption Power:200VA

4. Loading Range:5.5~60N, Precision:±1%

5. Needle stand span manufacturing accuracy:±0.1mm.

6. Measuring range of needle winding:0~0.8mm,Precision:±0.01mm.

7. Loading Rate:When loaded to the set value, the rate is<1mm/min
