Medical Needle Pricking Force Tester for Disposable Sterile Hypodermic Needle

Medical Needle Pricking Force Tester for Disposable Sterile Hypodermic Needle

The medical needle pricking force tester is designed and manufactured according to the relevant provisions of GB15811-2000 (EQVISO 7864-1993) "disposable sterile hypodermic needle".It is specially used to test the penetrating force of the needle point of medical injection needle.

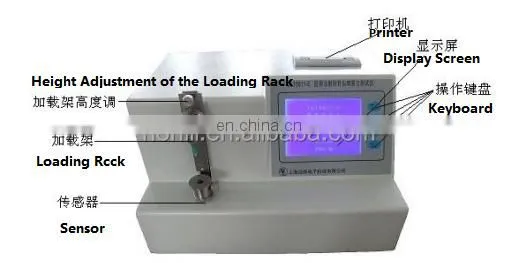

 The special instrument for needle penetrating force for medical injection needle is composed of intelligent controller, force measuring mechanism, ranging mechanism and printer, etc.The intelligent controller consists of CPU, motherboard, LCD, keyboard, power supply and other parts.

The screen is displayed in Chinese/English window, and the keyboard controls the cursor to select, operate and set. You can follow the prompts without training.

 Environment:

Display Method

1.  It adopts  320×240  single  color  LCD, all  Chinese/English  window  display.

2. The keyboard is used to control the menu on the LCD screen and the analog keyboard on the LCD screen.

3. Consumption Power:200VA

4. Loading Range:0~2.0N, Precision:±0.01N.

5.Loading Rate:100mm/min
