Home > Products > Car Park Barrier > Electric rising arm barrier / automatic car park arm barrier/ rising traffic barrier

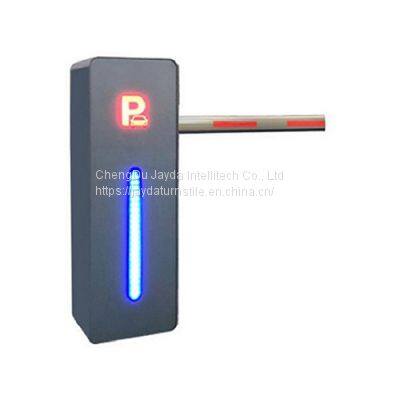

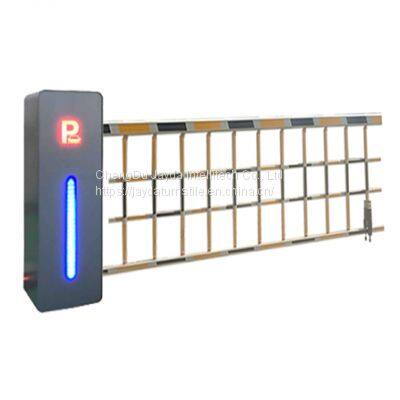

Electric rising arm barrier / automatic car park arm barrier/ rising traffic barrier
- 2000 Piece / Pieces per Month
- Shenzhen, China
- T/T L/C Other
- 7 days
- Electric rising arm barrier / automatic car park arm barrier/ rising traffic barrier
- Crash rated car park security barrier/ automatic car park gate/parking barrier gate
- Automatic tripod turnstile/ tripod turnstile boom barrier/ automatic tunstiles barrier
- Electronic tripod turnstile gate/ tripod barrier gate/ tripod turnstile system
- Access control tripod turnstile gate/ waist height turnstile/ pedestrian tripod turnstile gate
- Flap barrier turnstile / access control flap turnstile/ flap gate optical turnstile
Product Details
Brand Name: | Jayda | Place of Origin: | China | Model Number: | JDDZ-8 |
Product Description
0.6 ~ 6 seconds adjustable digital electric rising arm barrier, automatic car park arm barrier, rising traffic barrier is easy to use and maintain
Electric rising arm barrier JDDZ-8 is an effective automatic traffic barrier that can be used as parking barrier gate for car park and security control. Adopting advanced DC24V digital brushless motor and update control technology, it provides variabe speed ranging 0.6~6 seconds for different applications, ensuring rapid opening times, easy handling, great reliability and long life span. Equipped with standard interfaces, electric rising arm barrier JDDZ-8 is flexible integration various access control system, and also can be controlled by remote control and push button.In addition, the UV-resistant and environmental-friendly powder coating finish of the compact housing has amazing performance of corrosion resistent, dust-proof, rainproof and rustproof.
Features
1. Programmable open & close gate arm speeds
2. Direct drive motor auto-reverses upon contacting obstruction
3. Reliability for high usage
4. Accurate and safe system operation with encoder
5. Auto-close function upon departure of the vehicle
6. Auto reverse feature in case an object has been hit
7. Quality product resistant to weather conditions
8. Low power consumption for economical operation
9. Easy to use and maintain
10. None corrosive housing made of powder coated cold-roll sheet
Applications
Car parks
Company grounds
Residential building
Toll stations
Large business complexes
Airports
Parameters
Power Supply | AC220V/ AC110V±10%, 50/60hZ | |
Rated Power | 140W | |
Motor Type | DC 24V brushless digital motor | |
Motor Speed | 1500RPM | |
Open Time & Boom Length | 1.0~1.2 seconds | 2.5 meter straight boom |
1.5~2.0 seconds | 3.0 meter straight boom | |
2.0~2.5 seconds | 3.5 meter straight boom | |
2.5~3.0 seconds | 4.0 meter straight boom | |
3.0~3.5 seconds | 4.5 meter straight boom | |
3.5~4.0 seconds | 5.0 meter straight boom | |
4.0~4.5 seconds | 5.5 meter straight boom | |
5.0~6.0 seconds | 6.0 meter straight boom | |
Noise | ≤60dB | |
Error Action | ≤0.001% | |
Interfaces | IR sensor, vehicle detector, RS485, open/ close/stop | |
Output | Relay output, max AC240V, 5A bearable | |
Life Cycle | ≥4.5 million times | |
Work Temperature | -35℃~60℃, Relative humidity:≤90%, no condensation |
Electric Rising Arm Barrier Design
Electric Rising Arm Barrier Mechanism
Electric Rising Arm Barrier System Diagram
The Right & Left type definition of Electric Rising Arm Barrier
Project Cases for Electric Rising Arm Barrier
