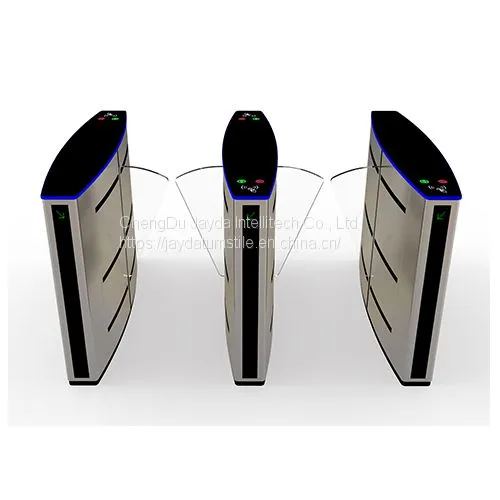

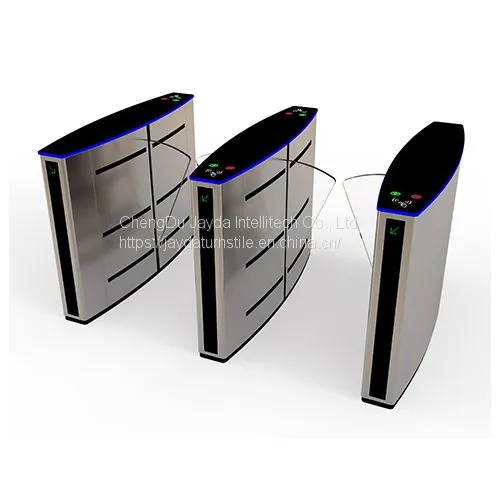

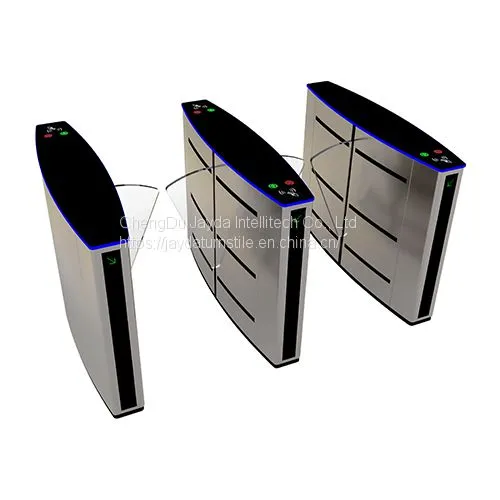

Automatic flap barrier gate turnstile/ flap turnstile gate/ flap barrier gate
- 2000 Piece / Pieces per Month
- Shenzhen, China
- T/T L/C PayPal Other
- 7 days
- Retractable barrier wing optical turnstile/ automatic flap turnstile gate/ flap gate optical turnstile
- Swing barrier optical turnstile/ swing arm turnstile/ optical swing turnstile
- Automatic swing pedestrian turnstile gate/ security swing turnstile gate/ barrier optical turnstile
- Swing arm optical turnstile/ swing barrier gate turnstile/ optical swing gate turnstile
- Access control system speed gate turnstile/ security speed gate turnstile/ high speed gate turnstile
- Fastlane speedgate turnstile/ fastlane optical turnstile speed gate/ speed gate turnstile
Product Details
Brand Name: | Jayda | Place of Origin: | China | Model Number: | JDYZ-24 |
Product Description
Beautiful automatic flap barrier gate turnstile, flap turnstile gate, flap barrier gate offers stable and efficient operation with low noise
Automatic flap barrier gate turnstile JDYZ-24 is an effective pedestrian access control solution for the applications requiring ultra high speed access and medium levels of security, coming with infrared sensors to detect the passage and providing single dirtectional or bi-directional access. It is supplied with green and red LED lights to indicate lane directions. Green lights signify that passage from that direction is allowed while red lights signify no passage in that direction. In addition, flap barrier gate automatic turnstile JDYZ-24 operates in a reliable, fast, quite and smooth way with low power consumption.
Features
1. Single directional or bi-directional access available
2. Ensure only one person enters for each authorized credential by tailgate detection
3. Wide integration of all types of identification systems.
4. High detection accuracy effectively prevents clipping and collision
5. Stable and efficient operation with lower noise
6. Create a seamless and nice entrance system to blend into most indoor environments
7. Provides flexibility and allows lanes to be handicap accessible.
8. Any illegal intrusion and reverse intrusion will trigger a sound alarm
9. Forcibly enter or tailgating attempts will be prompted by audible & visible alerts
10. High performance and robustness
Applications
Corporate lobbies
Office buildings
Data centers
Government facilities
Stadiums
Subways
Parameters
Housing Material | 1.5mm~2.0mm #304 stainless sheet |
Dimension | 1400 x 300 x 980mm |
Power Supply | AC220V / AC110V, 50/ 60 Hz |
Channel Width | 550mm |
Drive Motor | DC 24V brush motor |
Pass Speed | 35~40 persons per minute |
Input signal optional | Dry contact signal or +12V level signal or DC12V pulse signal |
Rotating Direction | Bi-directional |
Communication interface | RS485 |
Arm drop when power failure | Yes |
Open Time | 0.2 second |
Life Cycle | 3 million times |
Working Temperature | -30°C~+70°C |
Working Environments | Indoor, outdoor (with shelter) |
Automatic Flap Barrier Gate Turnstile Design
Automatic Flap Barrier Gate Turnstile System Diagram
Project Cases for Automatic Flap Barrier Gate Turnstile
What is automatic flap barrier gate turnstile used for?
Automatic flap barrier gate turnstile is perfect crowd control management for controlling access to secured areas, enhancing perimeter security. We offer high quality turnstile gates with multiple designs, which are used to control the flow of pedestrian enter into and out of secured areas. They are implemented to make entry control management easier for security personnel, also more comfortable for users . The security turnstiles are applicable to outdoor and indoor.
Benefits of automatic flap barrier gate turnstile and contactless entrances
1.Reduce virus spread: automatic flap barrier gate turnstile is touchless type turnstile, it is very helpful to eliminate the need to touch the turnstiles by using it, which effectively prevent cross-contamination at high trafficked areas.
2.Improves entrance security:automatic flap barrier gate turnstile provides the hands-free operation which is helpful to reduce cross-contamination meanwhile ensure entrance security. They are supplied with optical beams to detect passage and prevent passage with physical barriers made of glass, metal, and other comparable materials.
3.Increase throughput efficiency: automatic flap barrier gate turnstile is very efficient as they provide the transit speed rate, preventing traffic buildups, confusion, and ultimately an inefficient entryway.
Can automatic flap barrier gate turnstile be integrated with 3rd party access control systems ?
Off course, automatic flap barrier gate turnstile is comptiable with a wide variety of access control systems by dry contact. Card pass, fingerprint / handprint reader, face recognition, barcode reader, thermal camera and token applications can integrate with such access control turnstiles.
What will happen when power off and in emergency situation?
Automatic flap barrier gate turnstile instantly automatically unlocks for free passage under emergency situations (power outages, fire, etc)
Can automatic flap barrier gate turnstile be used indoor and outdoor?
Off course, automatic flap barrier gate turnstile is made for indoor or outdoor situations. For outdoor applications, there is should be shelter above.
Can automatic flap barrier gate turnstile be operated manually or remotely?
Automatic flap barrier gate turnstile is to be operated by the user at the turnstile. You can have a person who monitors the security turnstile from the surveillance terminal.
