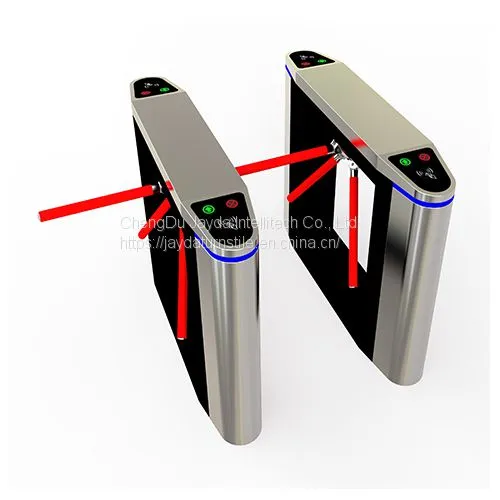

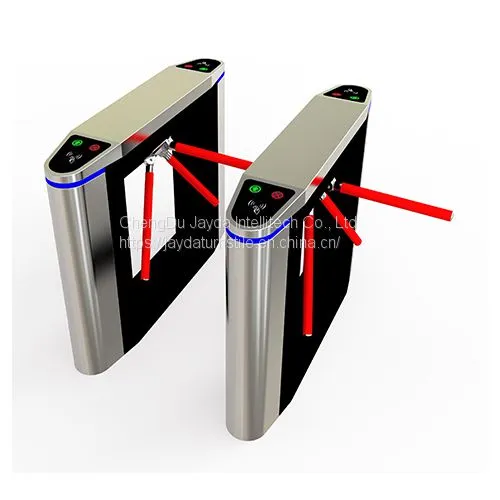

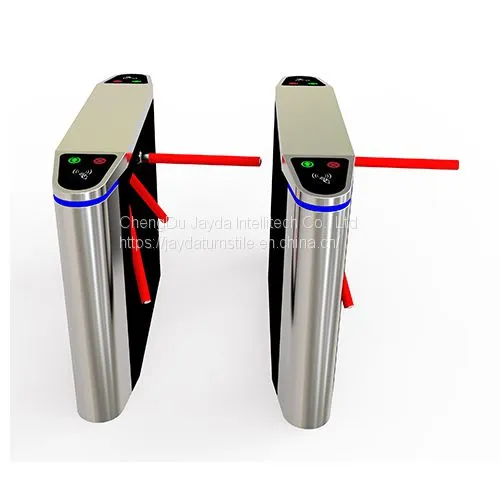

Access control tripod turnstile gate/ waist height turnstile/ pedestrian tripod turnstile gate
- 2000 Piece / Pieces per Month
- Shenzhen, China
- T/T PayPal Other
- 7 days
- Flap barrier turnstile / access control flap turnstile/ flap gate optical turnstile
- Automatic flap barrier gate turnstile/ flap turnstile gate/ flap barrier gate
- Retractable barrier wing optical turnstile/ automatic flap turnstile gate/ flap gate optical turnstile
- Swing barrier optical turnstile/ swing arm turnstile/ optical swing turnstile
- Automatic swing pedestrian turnstile gate/ security swing turnstile gate/ barrier optical turnstile
- Swing arm optical turnstile/ swing barrier gate turnstile/ optical swing gate turnstile
Product Details
Brand Name: | Jayda | Place of Origin: | China | Model Number: | JDGD-21A |
Product Description
Access control tripod turnstile gate, waist height turnstile, pedestrian tripod turnstile gate easily configure with low maintenance
Access control tripod turnstile gate JDGD-21A is the aesthetically pleasing and rugged waist height access control turnstile for a variety of applications ranging from athletic facilities, cafeterias, and schools, to amusement parks, stadiums, and office buildings. Access control tripod turnstile gate JDGD-21A can be configured to allow access in a single direction or bi-directionally depending the actual requirements, and simplified integration to access control and visitor management systems. In the event of an emergency situation, the horizontal turnstile arm drops, providing a free passage path for exiting patrons.
Features
1. Simplified integration to access control and visitor management systems
2. Precisely control the movement position of the barrier, ensure it runs more accurately and stably.
3. Unique drive system and mechanical structure reduces the impact of external force greatly.
4. Single direction or bi-directional passage
5. Easy configuration and low maintenance
6. In case of emergency or power failure, centre arm will collapse to allow a clear passage
7. Strong and durable to last a lifetime of use
8. Smooth, precise, quiet, controlled, fast arm rotation
9. Easy configuration and low maintenance
10. Aesthetically pleasing and functional design for secure operations
Applications
Office buildings
Administrative buildings
Industrial installations
Banks
Authorities
Sports stadiums
Amusement parks
University facilities
Parameters
Housing Material | 1.2mm~2.0mm 304 stainless sheet |
Dimension | 1400 x 280 x 980mm |
Power Supply | AC220V / AC110V, 50/ 60 Hz |
Channel Width | 550mm |
Arm Turning Angle | 120° |
Pass Speed | 35~40 persons per minute |
Input signal optional | Dry contact signal or +12V level signal or DC12V pulse signal |
Rotating Direction | Bi-directional |
Communication interface | RS485 |
Arm drop when power failure | Yes |
Open Time | 0.2 second |
Life Cycle | 5 million times |
Working Temperature | -30°C~+70°C |
Working Environments | Indoor, outdoor |
G.W | 65 kgs |
Package | export standard carton |
Electronic Tripod Turnstile Gate Design
Electronic Tripod Turnstile Gate System Diagram
Project Cases for Electronic Tripod Turnstile Gate
What are electronic tripod turnstile gates?
Electronic tripod turnstile gates, also called waist high turnstiles, are three-arm turnstiles which come with waist height, which are designed to control access into or out of a point of entry by only allowing a single person access at a time. Such security turnstiles allow for management of one way traffic without constant control from security or staff. Electronic tripod turnstile gates are usually used to manage traffic to sporting events or transit with subway stations and city buses. In addition, they are compatible with card reader, biometric device., etc
Electronic tripod turnstile gates variations:
Electronic tripod turnstile gates, typical waist high security turnstiles, are different among different models in finish, shape, and functionality. Such access control turnstiles have sleek stainless steel or rugged powder coated finishes. The housing designs of electronic tripod turnstile gate are big different from different models
Electronic tripod turnstile gates applications:
Electronic tripod turnstile gates are used to control pedestrian entering or exiting secured areas. As a great solution for controlling access without seeming too intense, they are often used in customer service environments and at stadiums, sports and entertainment venues.
Can electronic tripod turnstile gates be integrated with 3rd party access control systems ?
Off course, our electronic tripod turnstile gates are comptiable with a wide variety of access control systems by dry contact. Card pass, fingerprint / handprint reader, face recognition, barcode reader, thermal camera and token applications can integrate with such access control turnstiles.
What will happen when power off and in emergency situation?
Electronic tripod turnstile gates instantly automatically drop off their central arm for free passage under emergency situations (power outages, fire, etc)
Can electronic tripod turnstile gates be used indoor and outdoors?
Electronic tripod turnstile gates are made for indoor or outdoor situations. For all outdoor applications, we use 304 stainless steel to prevent corrosion.
