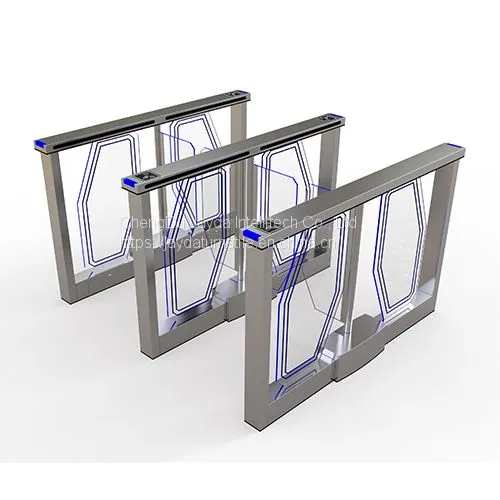

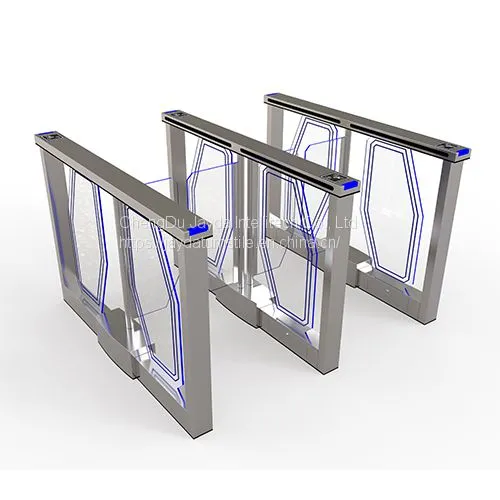

Automatic Swing Pedestrian Turnstile Gate/ Security Swing Turnstile Gate/ Barrier Optical Turnstile
- Shenzhen, China
- T/T L/C PayPal Other
- 7 days
You May Like
-
Swing Arm Optical Turnstile/ Swing Barrier Gate Turnstile/ Optical Swing Gate Turnstile
-
Access Control System Speed Gate Turnstile/ Security Speed Gate Turnstile/ High Speed Gate Turnstile
-
Fastlane Speedgate Turnstile/ Fastlane Optical Turnstile Speed Gate/ Speed Gate Turnstile
-
Automatic Speed Turnstile Gate/ Speed Gate Optical Turnstile/ Speed Gate Contactless Turnstile
-
Sliding Gate Optical Turnstile/ Sliding Turnstile Gate/ Opticla Sliding Turnstile
-
Entrance Control Sliding Gate Turnstile/ Optical Sliding Gate Turnstile/ Sliding Gate Glass Turnstile
Product Details
| Brand Name | Jayda | Place of Origin | China | |
| Model Number | JDBZ-24 |
Product Description
Automatic swing pedestrian turnstile gate, security swing turnstile gate, barrier optical turnstile is perfectly suited to any type of architecture
Automatic swing pedestrian turnstile gate JDBZ-24 is controlled by logic sensors and a matrix of detection beams, by which any tailgating attempt, unauthorized entry or revese entry will be detected by the senosor and trigger a sound alarm, and deny illegal access effectively. The rapid throughput, effectivness and reliable operation enables automatic swing pedestrian turnstile gate JDBZ-24 to be used widely to various applications such as company foyers, data centers, government buildings and fitness centers. In case of power failure or emgergency, the security turnstile lanes will open and release the passage automatically to creat a free passage.
Features
1.Slim cabinet design for a smaller footprint
2. Detects tailgating and exact position of users
3. Intelligent drive system and pinpoint control of moving panels
4. Multiple operational modes including controlled passage, free passage and visitor
5. Supports very rapid throughput
6. Superior unauthorized passage and unauthorized presence detection
7. Standard and handicapped width lanes have same cabinet dimensions
8. Perfectly suited to any type of architecture
9. Fault visualization for easy to check on site
10. Widely used in various indoor and outdoor environments
Applications
Industrial parks
Commercial buildings
Fitness center
Universities
Public transportation systems
Government facilities
Parameters
| Housing Material | 1.5mm~2.0mm #304 stainless sheet |
| Dimension | 1400 x 160 x 980mm |
| Power Supply | AC220V / AC110V, 50/ 60 Hz |
| Channel Width | 600~900mm |
| Drive Motor | DC 24V brushless motor |
| Pass Speed | 30 ~35 persons per minute |
| Input Interface | Dry contact signal or +12V level signal or DC12V pulse signal |
| Rotating Direction | Bi-directional |
| Communication interface | RS485 |
| Gate open when power failure | Yes |
| Open Time | 0.2 second |
| Life Cycle | 3 million times |
| Working Temperature | -30°C~+70°C |
| Working Environments | Indoor, outdoor (with shelter) |
Automatic Swing Pedestrian Turnstile Gate Design
Automatic Swing Pedestrian Turnstile Gate System Diagram
Project Cases for Automatic Swing Pedestrian Turnstile Gate
What is automatic swing pedestrian turnstile gate?
Automatic swing pedestrian turnstile gate, a typical optical turnstile, utilizes the internal infrared technology coupled with a physical barrier to provide added security against unwanted entry. Swing barrier optical turnstile cabinets can be installed as close to or as far apart from each other as needed. This provides flexibility and allows lanes to be handicap accessible.
How does automatic swing pedestrian turnstile gate work?
Automatic swing pedestrian turnstile gate, functions by fixing in pairs, by which it is important to choose the right number of these turnstiles for specific projects. Meanwhile, considering the quantity for pedestrian traffic and for access for the disabled is also very important. Take swing gate turnstile JDBZ-25 as example, which include single-wing type and dual-wing type. 2 single-wing type are required for a single-lane pass, and a 2-lane passage includes 2 singe-wing type JDBZ-25 fixed on each side of a dual-wing type JDBZ-25. In addition, most of our touchless turnstiles provide wide lane up to 900mm width for disabled access.
Can automatic swing pedestrian turnstile gate be integrated with 3rd party access control systems ?
Off course, automatic swing pedestrian turnstile gate is comptiable with a wide variety of access control systems by dry contact. Card pass, fingerprint / handprint reader, face recognition, barcode reader, thermal camera and token applications can integrate with such access control turnstiles.
What will happen when power off and in emergency situation?
Automatic swing pedestrian turnstile gate instantly automatically unlocks for free passage under emergency situations (power outages, fire, etc)
Can automatic swing pedestrian turnstile gate be used indoor and outdoor?
Off course, automatic swing pedestrian turnstile gate is made for indoor or outdoor situations. For all outdoor applications, we use 304 stainless steel to prevent corrosion.
Does automatic swing pedestrian turnstile gate give access to ADA pedestrians?
Yes, automatic swing pedestrian turnstile gate provides wide lane up to 900mm for the disabilities to allow for wheelchairs.
