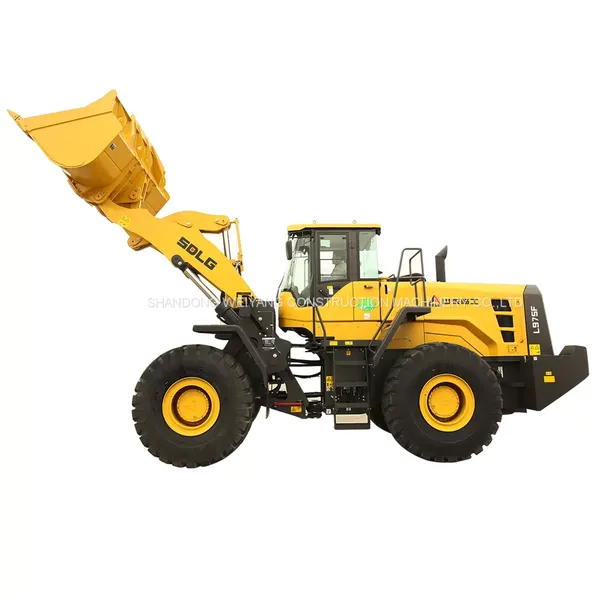

SDLG 7ton Wheel Loader L975F Pay Loader With 4.2m3 Bucket

SDLG 7ton Wheel Loader L975F Pay Loader With 4.2m3 Bucket thumbnail-1
SDLG 7ton Wheel Loader L975F Pay Loader With 4.2m3 Bucket photo-1
US$ 100000 - 110000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
SDLG
Place of Origin:
China
Model Number:
L975F
Contact Supplier Request Quote Chat Now
Shandong Weiyang Construction Machinery Co.,ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
20 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name SDLG
Place of Origin China
Model Number L975F
Type Front Loader
Certification ISO900
After-sales Service Provided Engineers available to service machinery overseas
Warranty 12 months
Condition New
Dimension(Long * Breadth * High) 8680*3038*3470mm
Moving Type Wheel Loader
Rated Load 7000kgs
Overall dimension



L*W*H
9525*3320*3620mm



Wheel base
3550mm



Min. ground clearance
506mm



Max. dumping height
3600mm



Lifting height
4695mm



Dumping distance
1300mm



Dumping angle
45



wheel tread
2350mm



steering angle
38



horizontal crossing radius
7550mm



Min. turning radius
6330mm



Overall parameters
Backet capacity
4.2m3



Rated load
7000kg



operating weight
24900kg



Max. tractive force
226kN



Max. breakout force
195kN



Tipping load
140kN



Engine



Model
WD10G270E341



Type
Inline, watercooled, dry cylinder liner, direct injection



Rated power
199kW



Rated speed
2200r/min



Engine displacement
9726ml



Max. torque
1300N.m



Emission standard
GB 20891-2014(China Phase III)



Min. fuel-consume ratio
215g/kw.h



Transmission system



Torgue converter
single-stage three-element
single-turbine hydraulic torque converter



Transmission type
Axis-fixed electro-hydraulic transmission



Gears
Forward 4 reverse 4



Hydraulic system of working device



Type
Double ball head handle hydraulic pilot control



total time
10.9s



Brake system



Service brake type
Full hydraulic dry brake



Parking brake type
Pressure release caliper disc type



Steering system



Type
Load sensing full hydraulic articulated steering



System pressure
21 Mpa



Fill capacity



Fuel
380L



Hydraulic oil
230L



Engine
20L



Transmission
55L



Drive axle
Forward 44L+ reverse 37L
