Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Loader > XCMG 3ton Wheel Loader LW300FN Pay Loader With 1.8m3 Bucket

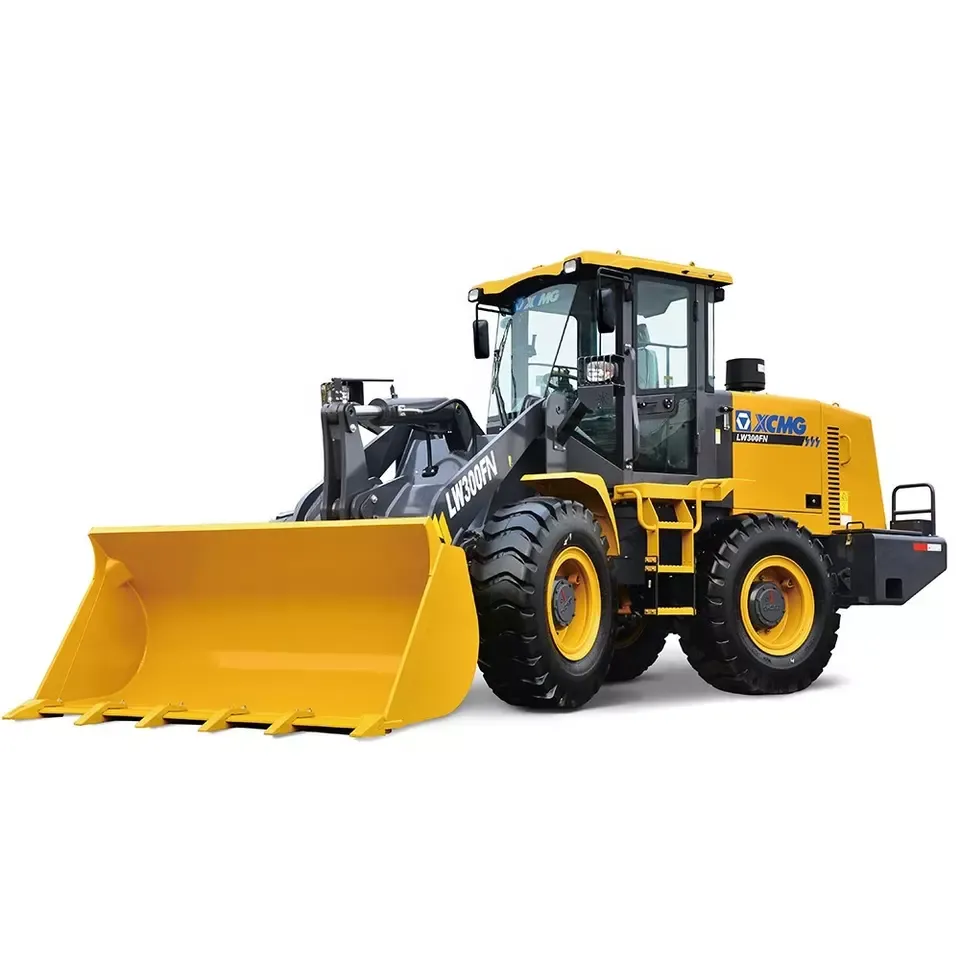

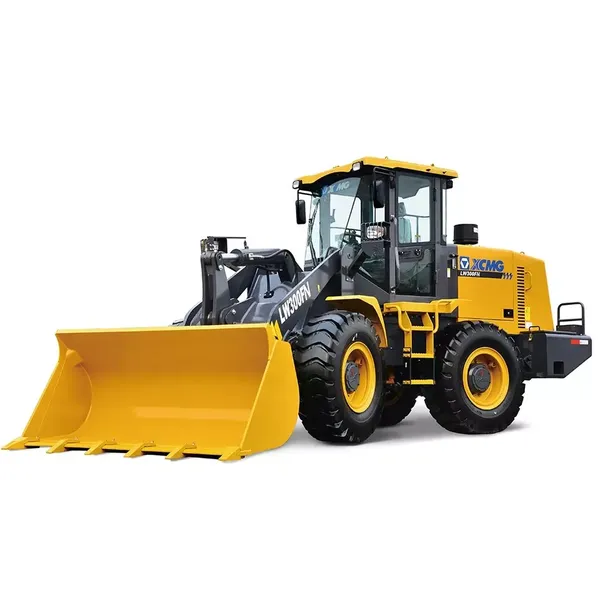

XCMG 3ton Wheel Loader LW300FN Pay Loader With 1.8m3 Bucket
US$ 29000 - 33000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
XCMG
Place of Origin:
China
Model Number:
LW300KN
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
20 days
Related Products
-
XCMG 5ton Wheel Loader ZL50GN Payloader With 3.0m3 BucketUS$ 46000 - 50000MOQ: 1 Piece -
XCMG 4ton Wheel Loader LW400KN Payloader With 2.4m3 BucketUS$ 46000 - 50000MOQ: 1 Piece
-
XCMG 3ton Wheel Loader LW300KN Pay Loader With 1.8m3 BucketUS$ 29000 - 33000MOQ: 1 Piece
-
SDLG G9138 G9138F Motor Grader With 138HP EngineUS$ 53000 - 58000MOQ: 1 Piece
-
SDLG G9165 G9165F Motor Grader With 165HP EngineUS$ 58000 - 62000MOQ: 1 Piece
Brand Name
XCMG
Place of Origin
China
Model Number
LW300KN
Type
Front Loader
Certification
ISO900
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
12 months
Condition
New
Dimension(Long * Breadth * High)
7245*2482*3320mm
Moving Type
Wheel Loader
Rated Load
3000kgs
As an outstanding representative of the industry's super-heavy-duty models, LW300KN boasts remarkable advantages in terms of “High
energy-conservation, efficiency, reliability, and comfort” compared with industry’s like products and is extensively applicable
for earthmoving projects, aggregate yards, municipal constructions, and other bulk material transports.
| Item | Specifications |
|
Rated operating load |
3000Kg |
|
Bucket capacity |
1.5~2.5m³ |
|
Machine weight |
10900±200Kg |
|
Dump clearance at maximum lift |
2770~3260Mm |
|
Reach at maximum lift |
1010~1210mm |
|
Wheel base |
2900mm |
|
Tread |
1850mm |
|
Height of hinge at maximum lift height |
3830mm |
|
Working height(fully lifted) |
4870mm |
|
Max.breakout force |
130Kn |
|
Max.horse power |
95Kn |
|
Hydraulic cycle time-raise |
5.5s |
|
Total hydraulic cycle time |
10s |
|
Min. turning radius over tyres |
5165mm |
|
Articulation angle |
35±1 |
|
Gradeability |
28° |
|
Tyre size |
17.5-25-12PR |
|
L×W×H |
7245×2482×3320mm |
|
Engine Model |
Weichai |
|
Rated Power/Speed |
92/2300 kw/rpm |
