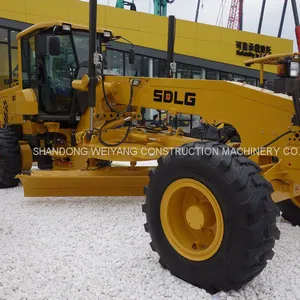

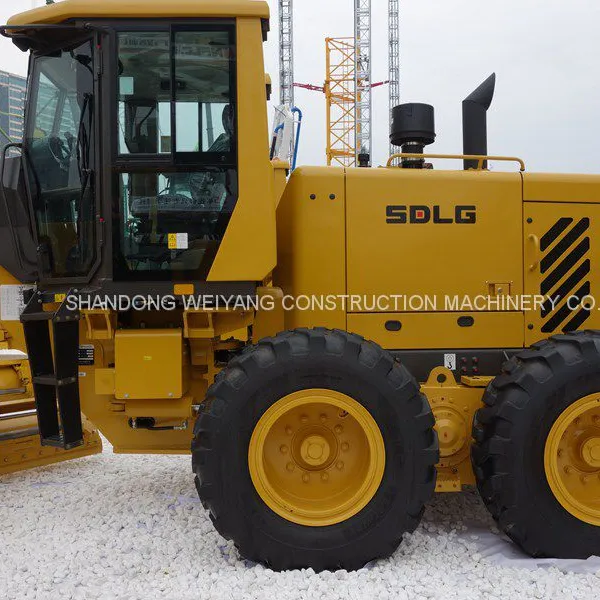

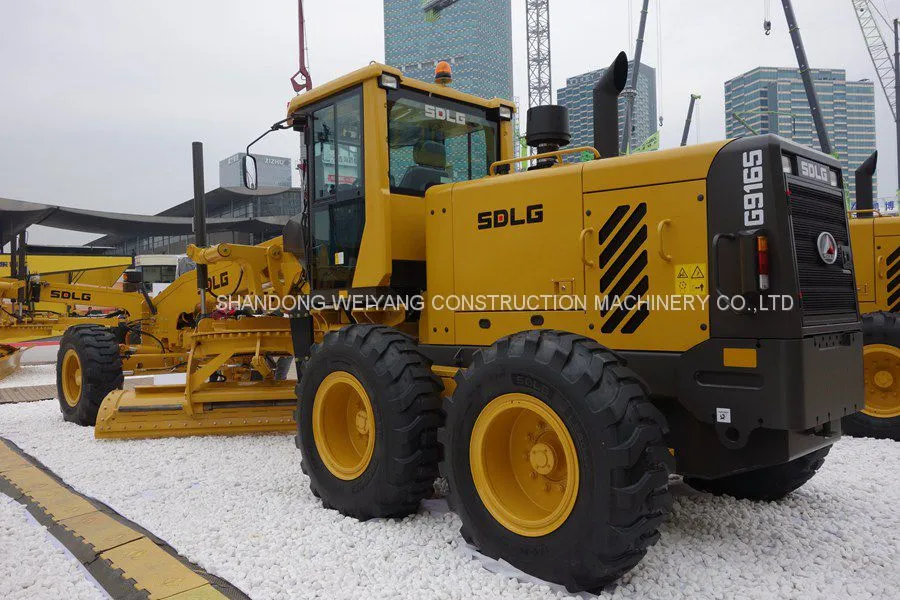

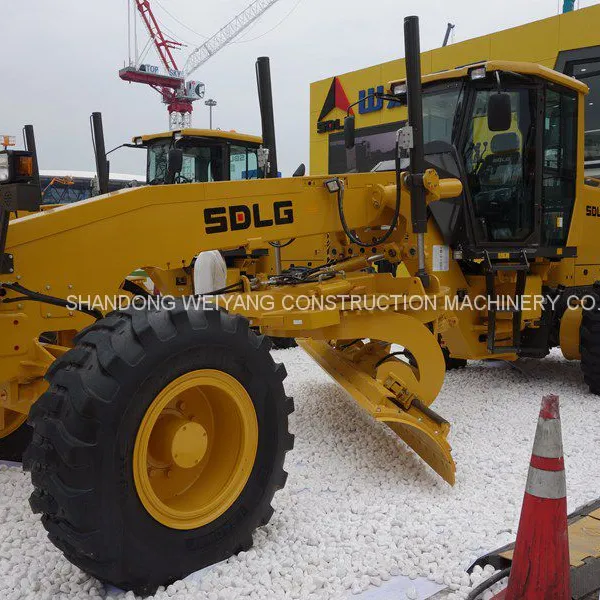

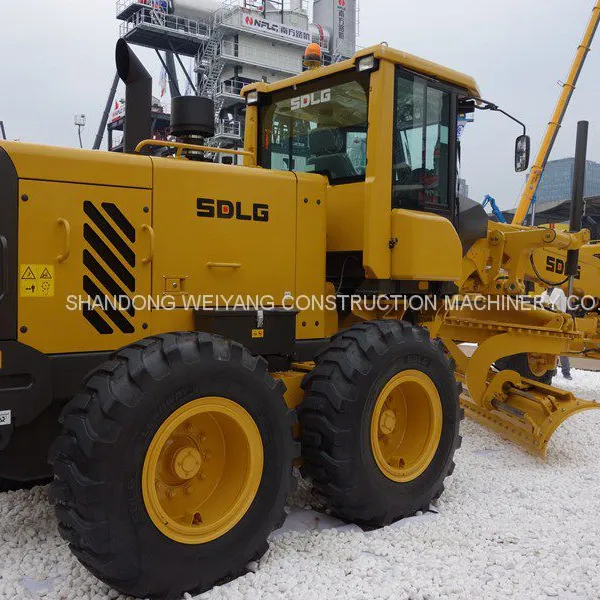

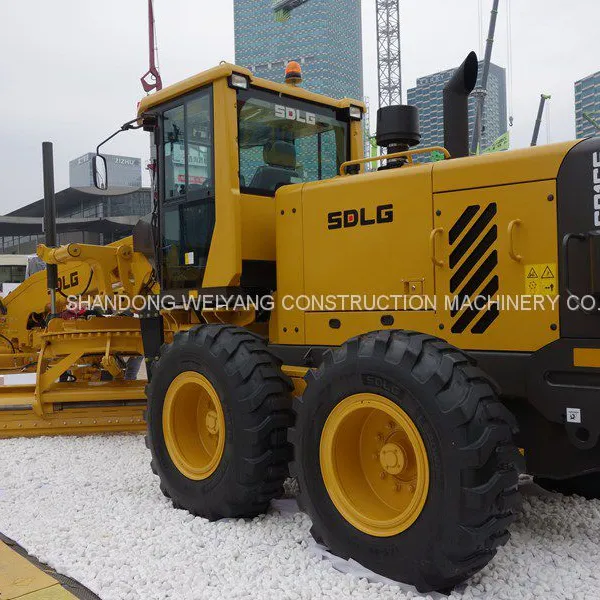

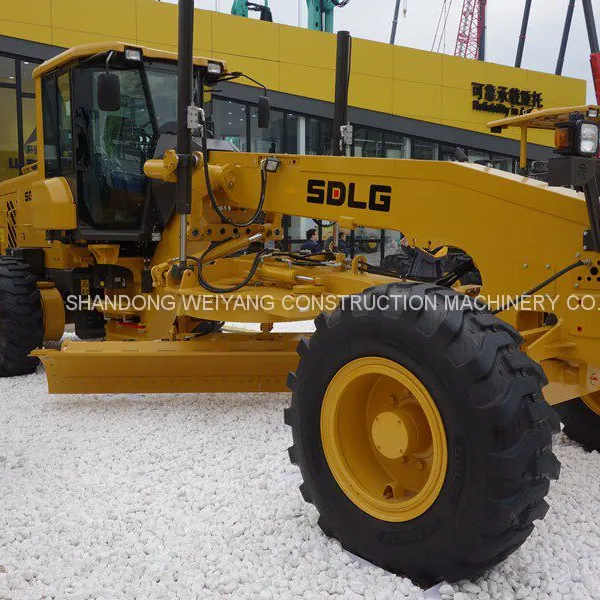

SDLG G9165 G9165F Motor Grader With 165HP Engine
US$ 58000 - 62000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
SDLG
Place of Origin:
China
Model Number:
G9138
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
20 days
Related Products
-
SDLG G9190 G9190F Motor Grader With 190HP EngineUS$ 80000 - 90000MOQ: 1 Piece -
SDLG G9200 G9200F Motor Grader With 200HP EngineUS$ 65000 - 75000MOQ: 1 Piece
-
SDLG G9220 G9220F Motor Grader With 220HP EngineUS$ 70000 - 90000MOQ: 1 Piece
-
SDLG G9138 G9138F Motor Grader With 138HP EngineUS$ 53000 - 58000MOQ: 1 Piece
-
SDLG 4130001126 ECU VRT200 Transmission for L958F L968F Wheel LoadersUS$ 900 - 1050MOQ: 1 Piece
Brand Name
SDLG
Place of Origin
China
Model Number
G9138
Certification
ISO900
After-sales Service Provided
Engineers available to service machinery overseas
Weight
12100KGS
Dimension(L*W*H)
8120X2410X3200MM
Condition
New
Reverse Speed(km/h)
34
Forward Speed(km/h)
24
G9165 is a product of high speed, high efficiency, high accuracy and multiple purposes developed by SDLG on the European advanced technology, can be used for ground leveling and grooving, scraping slope, bulldozing, ploughing snow, loosening, compacting, material arrangement and mixing works, and is widely used in construction operating condition of road, airport, defence engineering, mine construction, road construction, water conservancy construction and farmland Improvement and so on.
| Item | Specifications |
|
Operation mass of complete machine |
14600kg |
|
Dimensions(LXHXH) |
8975X2710X3240MM |
|
Max.angle of inclination of front wheel |
±18° |
|
Max.swing angle of front wheel |
±16° |
|
Max.steering angle of front wheel |
±50° |
|
Steering angle of frame articulation |
±23° |
|
Cutter diameter |
1626mm |
|
Cutter specifications(LXHXT) |
3658X635X25mm |
|
Rotation angle of balde |
360° |
|
Ground clearance of balde |
445mm |
|
Cutting depth of blade |
787mm |
|
Sliding range of balde |
673mm |
|
Max.traction(f=0.75) |
75kn |
|
Engine power |
129kw |
|
Max.speed(forwader/backwarder) |
40/30km/h |
