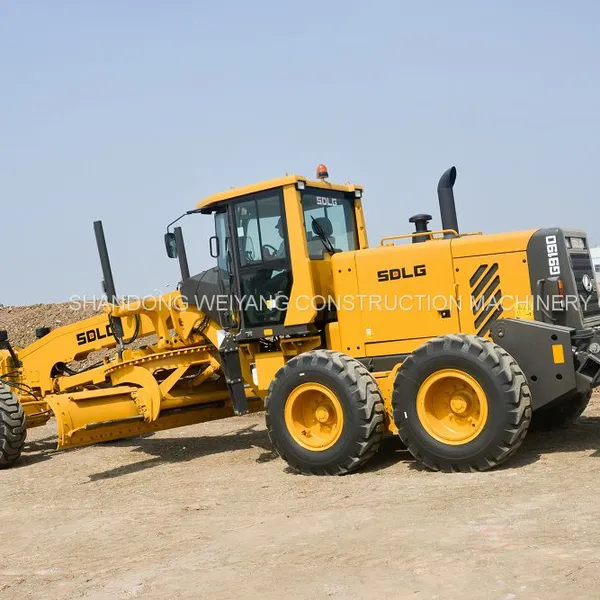

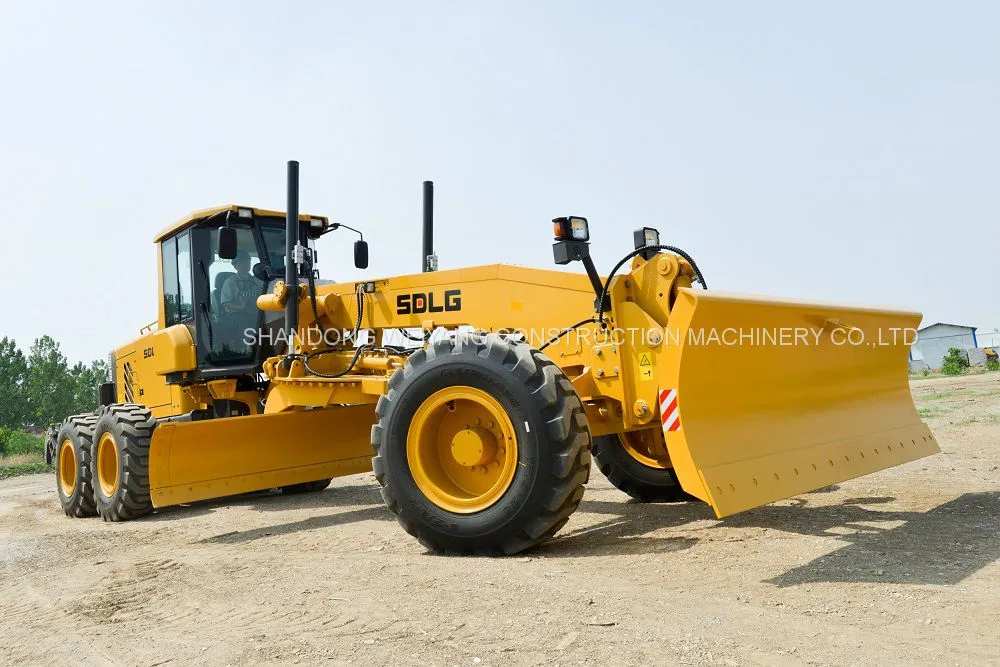

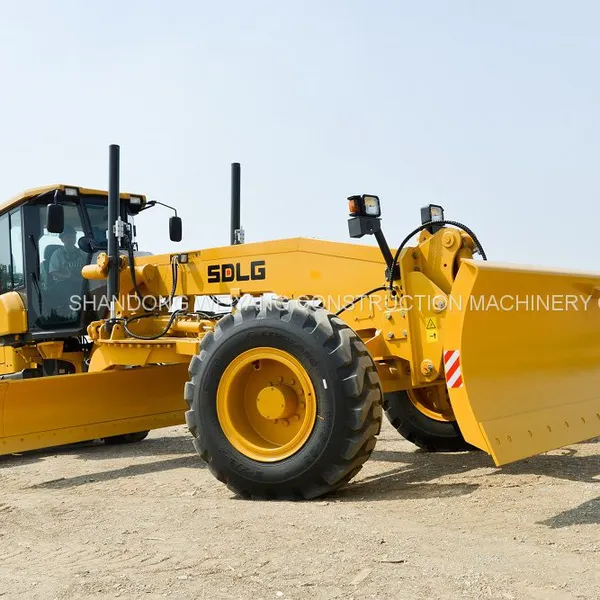

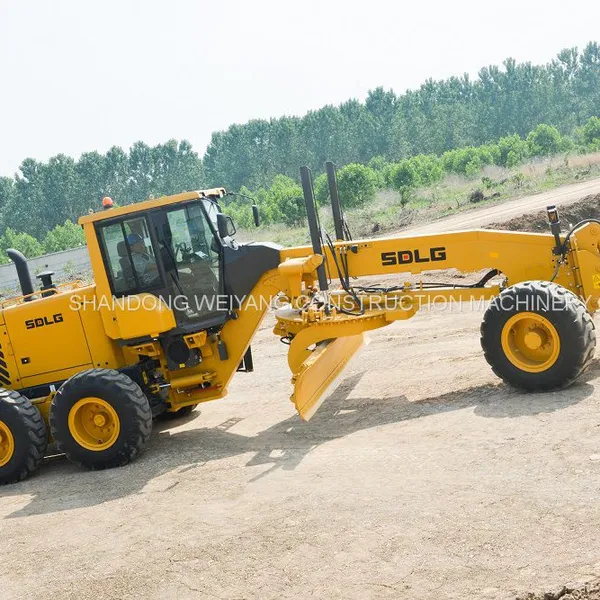

SDLG G9190 G9190F Motor Grader With 190HP Engine
US$ 80000 - 90000
/ Piece
1 Piece(Min. Order)
- Qingdao
- T/T Cash
- 20 days
You May Like
-
SDLG G9200 G9200F Motor Grader With 200HP Engine
-
SDLG G9220 G9220F Motor Grader With 220HP Engine
-
SDLG 4130001126 ECU VRT200 Transmission for L958F L968F Wheel Loaders
-
XGMA Air Brake Booster 55C0249 for XG935H Wheel Loader Spare Part
-
SEM CBG2040 Gear Pump W060600000 for SEM650B Wheel Loader
-
SDLG Hydraulic Excavators E6210F With 0.9M3 Bucket Good Price
Product Details
| Brand Name | SDLG | Place of Origin | China | |
| Model Number | G9190 G9190F | Certification | ISO900 | |
| After-sales Service Provided | Engineers available to service machinery overseas | Weight | 15800KGS | |
| Dimension(L*W*H) | 8975X2710X3240MM | Condition | New | |
| Reverse Speed(km/h) | 34 | Forward Speed(km/h) | 24 |
Product Description
G9190 is a product of high speed, high efficiency,high accuracy and multiple purposes developed by SDLG on the European advanced technology, can be used for ground leveling and grooving, scraping slope, bulldozing, ploughing snow, loosening,compacting, material arrangement and mixing works,and is widely used in construction operating condition of road, airport, defence engineering, mine construction, road construction， water conservancy construction and farmland improvement and so on.
| Item | Specifications |
| Operation mass of complete machine | 15800kg |
| Dimensions(LXHXH) | 8975X2710X3240MM |
| Max.angle of inclination of front wheel | ±18° |
| Max.swing angle of front wheel | ±16° |
| Max.steering angle of front wheel | ±50° |
| Steering angle of frame articulation | ±23° |
| Cutter diameter | 1626mm |
| Cutter specifications(LXHXT) | 3962X635X22mm |
| Rotation angle of balde | 360° |
| Ground clearance of balde | 445mm |
| Cutting depth of blade | 787mm |
| Sliding range of balde | 673mm |
| Max.traction(f=0.75) | 82kn |
| Engine power | 146kw |
| Max.speed(forwader/backwarder) | 38/23km/h |
