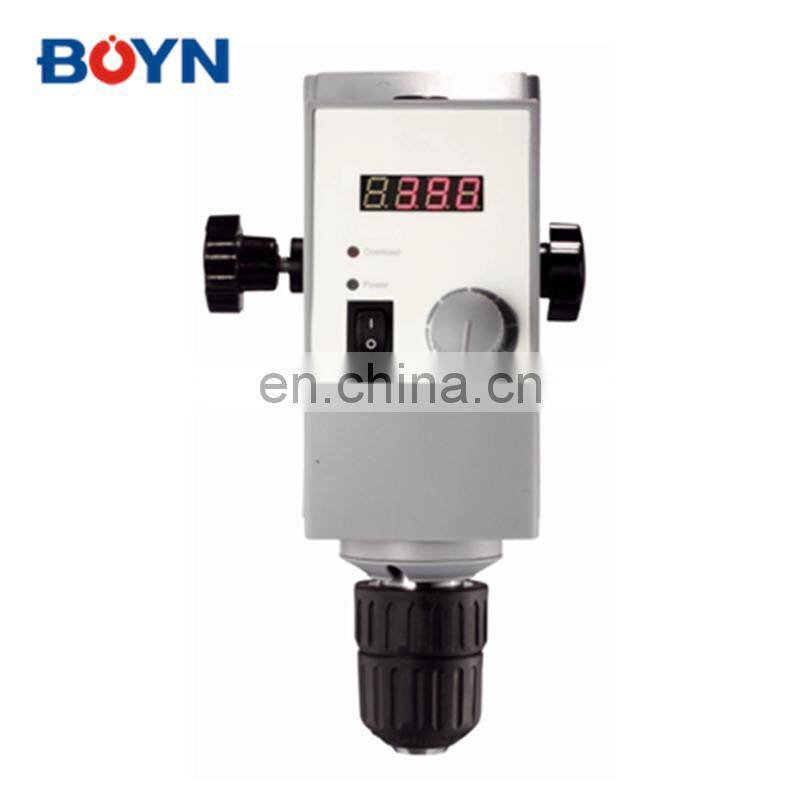

Home > Manufacturing & Processing Machinery > Pharmaceutical Equipment & Machinery > Pharmaceutical Injection Equipment > OS20-S LED Overhead Stirrer
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
1994
Annual Export Value:
US$5 Million - US$10 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
DK-2000-IIIL Series 3.4L-22.5L Thermostatic Water BathNegotiableMOQ: 1 -
BT101L Intelligent Flow Peristaltic PumpNegotiableMOQ: 1
-
HT6510 Series Shore Hardness Tester With USB and Blue Tooth SoftwareNegotiableMOQ: 1
-
Bante900P Portable Multiparameter Water Quality MeterNegotiableMOQ: 1
-
Quartz Tube Electric Heating Auto Water Distiller for LaboratoryNegotiableMOQ: 1
Product Description
Product Features
High reliability and outstanding performance
* A wide range of speed from 50 to 2200rpm
* Brushless DC motor for long life, maintenance free and
* explosion proof
* LED screen for monitoring actual speed
Safety circuits allow for safe stop function in anti-stall or
overload condition
* A wide range of speed from 50 to 2200rpm
* Brushless DC motor for long life, maintenance free and
* explosion proof
* LED screen for monitoring actual speed
Safety circuits allow for safe stop function in anti-stall or
overload condition
Product Paramenters
Model | OS40-S | OS20-S | OS40-Pro | OS20-Pro | ||||
Max. stirring quantity [H2O] [L] | 40 | 20 | 40 | 20 | ||||
Motor rating input [W] | 120 | 60 | 120 | 60 | ||||
Motor rating output [ W] | 100 | 50 | 100 | 50 | ||||
Power supply | 110/220V, 50/60Hz | 110/220V, 50/60Hz | 110/220V, 50/60Hz | 110/220V, 50/60Hz | ||||
Power [W] | 130 | 70 | 130 | 70 | ||||
Speed range [rpm] | 0-2200 | 0-2200 | 50-2200 | 50-2200 | ||||
Speed display accuracy [rpm] | - | - | ±3 | ±3 | ||||
Speed display | LED | LED | LCD | LCD | ||||
Speed display resolution [rpm] | ±1 | ±1 | ±1 | ±1 | ||||
Max. torque [Ncm] | 60 | 40 | 60 | 40 | ||||
Torque display | - | - | LCD | LCD | ||||
Overload protection | LED lights, motor automatic stops | LED lights, motor automatic stops | ||||||
Motor protect | LED lights, motor automatic stops | LED lights, motor automatic stops | ||||||
Viscosity max. [mPas] | 50000 | 10000 | 50000 | 10000 | ||||
Chuck range diameter [mm] | 0.5-10 | 0.5-10 | 0.5-10 | 0.5-10 | ||||
Dimension [W x H x D] [mm] | 83*220*186 | 83*220*186 | 83*220*186 | 83*220*186 | ||||
Weight [kg] | 2.8 | 2.6 | 2.8 | 2.6 | ||||
Protection class acc. to DIN/EN 60529 | IP42 | IP42 | IP42 | IP42 | ||||
Temperature [oC] | 5-40 | 5-40 | 5-40 | 5-40 | ||||
Permission relative humidity [%] | 80 | 80 | 0 | 80 | ||||
Remote control [RS232 interface] | N/A | N/A | Yes | Yes | ||||
