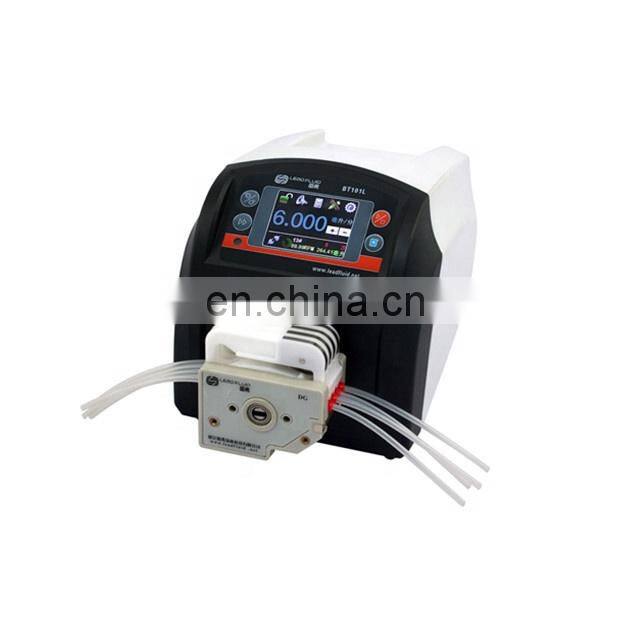

Home > Instruments & Meters > Test Instrument > Test Machine > BT101L Intelligent Flow Peristaltic Pump
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
1994
Annual Export Value:
US$5 Million - US$10 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HT6510 Series Shore Hardness Tester With USB and Blue Tooth SoftwareNegotiableMOQ: 1 -
Bante900P Portable Multiparameter Water Quality MeterNegotiableMOQ: 1
-
Quartz Tube Electric Heating Auto Water Distiller for LaboratoryNegotiableMOQ: 1
-
Portable Home Using Stainless Steel 750W 4L Capacity Electric Heating Automatic Distilled Water MachineNegotiableMOQ: 1
-
20L/H Stainless Steel Electric Heating Automatic Water DistillerNegotiableMOQ: 1
Product Description
Product Features
* Color LCD display, touch screen and keypad for operating.
* Reversible direction, start/stop control and adjustable speed.
* Flow rate calibration.
* Flow rate display and control; Cumulative dispense volume display.
* Anti-drip function ensures dispense accuracy.
* 0.2% high precision rotating speed control with 0.1 rpm speed resolution.
* Precise motor control technology improves dispense accuracy compared to the traditional dispense mode.
* Professional operating system, configure system with setup wizard.
* Intelligent temperature control to minimize working noise.
* Logic level signal can control start/stop, direction and easy dispense functions; external analog signal can adjust the
rotating speed. Control signal is optically isolated.
* With RS485 MODBUS interface, easy to communicate with external device.
* Internal double-layer isolation structure; circuit board with conformal coating makes the pump dust-proof and moisture proof.
* Anti-electromagnetic interference feature, wide input voltage range for complex power environment.
* ABS plastic housing, streamlined shape.
* Drive multi-channels and various types of pump heads.
* Optional footswitch and remote infrared control.
Specifications
* Flow range: 0.0001-720 mL/min
* Speed range: 0.1-150 rpm
* Speed resolution: 0.1rpm
* Speed accuracy: 0.2%
* Power supply: AC100-240V 50Hz/60Hz
* Power consumption: < 30W
* External logic level control signal: 5V, 12V (standard), 24V (optional)
* External analog control signal: 0-5V (standard), 0-10v, 4-20mA (optional)
* Communication interface: RS485 MODBUS interface
* Operating condition: Temperature 0-40 °C; Relative humidity < 80%
* IP grade: IP31
* Dimensions (L x W x H): 257 x 198 x 197mm (10.12 x 7.80 x 7.17 inch)
* Weight: 4.5 kg (10.6 lbs)
* Reversible direction, start/stop control and adjustable speed.
* Flow rate calibration.
* Flow rate display and control; Cumulative dispense volume display.
* Anti-drip function ensures dispense accuracy.
* 0.2% high precision rotating speed control with 0.1 rpm speed resolution.
* Precise motor control technology improves dispense accuracy compared to the traditional dispense mode.
* Professional operating system, configure system with setup wizard.
* Intelligent temperature control to minimize working noise.
* Logic level signal can control start/stop, direction and easy dispense functions; external analog signal can adjust the
rotating speed. Control signal is optically isolated.
* With RS485 MODBUS interface, easy to communicate with external device.
* Internal double-layer isolation structure; circuit board with conformal coating makes the pump dust-proof and moisture proof.
* Anti-electromagnetic interference feature, wide input voltage range for complex power environment.
* ABS plastic housing, streamlined shape.
* Drive multi-channels and various types of pump heads.
* Optional footswitch and remote infrared control.
Specifications
* Flow range: 0.0001-720 mL/min
* Speed range: 0.1-150 rpm
* Speed resolution: 0.1rpm
* Speed accuracy: 0.2%
* Power supply: AC100-240V 50Hz/60Hz
* Power consumption: < 30W
* External logic level control signal: 5V, 12V (standard), 24V (optional)
* External analog control signal: 0-5V (standard), 0-10v, 4-20mA (optional)
* Communication interface: RS485 MODBUS interface
* Operating condition: Temperature 0-40 °C; Relative humidity < 80%
* IP grade: IP31
* Dimensions (L x W x H): 257 x 198 x 197mm (10.12 x 7.80 x 7.17 inch)
* Weight: 4.5 kg (10.6 lbs)
Product Paramenters
ive type | Pump heads | Ch | Tubing size (mm) | Flow rate per channel (mL/min) |
BT101L (ABS plastic case) | DG6-1 (6rollers) | 1 | Wall:0.8~1, ID:≤3.17 | 0.0002-49 |
DG10-1 (10rollers) | 1 | Wall:0.8~1, ID:≤3.17 | 0.0001-41 | |
DG6-2 (6rollers) | 2 | Wall:0.8~1, ID:≤3.17 | 0.0002-49 | |
DG10-2 (10rollers) | 2 | Wall:0.8~1, ID:≤3.17 | 0.0001-41 | |
DG6-4 (6rollers) | 4 | Wall:0.8~1, ID:≤3.17 | 0.0002-49 | |
DG10-4 (10rollers) | 4 | Wall:0.8~1, ID:≤3.17 | 0.0001-41 | |
DT10-18 | 1 | 13# 14# , Wall:0.8~1, ID:≤3.17 | 0.0002-82 | |
DT10-28 | 2 | 13# 14# , Wall:0.8~1, ID:≤3.17 | 0.0002-82 | |
YZ15 | 1 | 13# 14# 16# 19# 25# 17# | 0.006-420 | |
YZ25 | 1 | 15# 24# | 0.16-420 | |
YT15 | 1 | 13# 14# 16# 19# 25# 17# 18# | 0.006-570 | |
YT25 | 1 | 15# 24# 35# 36# | 0.17-720 |
