Product Description
Professional NDT Detector Ultrasonic Flaw Crack Inspection Price
1.Feature and Description
The 5100 digital ultrasonic flaw detector offers state-of-the-art technology in a package that is compact and lightweight 1.28kg. It is a full-featured and reliable instrument which can be used in various industries. suitable for various detection demands of forged pieces, welding lines, airplane parts
The 5100 adopts an embedded computer system and a super large-scale field programmable IC design, which combine all good performance of a large ultrasound system in a very small space: at least 65dB detection sensitivity surplus will meet detection demand for large forged pieces or coarse-crystal material; LAN Ethernet port for real-time communication with a PC (Host) and remote control; Cine loop function for recording the dynamic scanning process; The new-type color TFT LCD results in optimize read & measure effect and visual comfort; The simple but convenient surface wave tracking function is good for immersion detection; Together with new techniques and new functions such as DAC, RF echo display, large memory and USB port, the OND-3600 becomes a handy ultrasonic flaw detector with excellent performance. Furthermore, the fast response time of the color TFT LCD enables display of fast scanning echoes; the touch keypad is reliable and comfortable for use; Its outstanding EMC design significantly increases field anti-interference of the system.
Advantages
Small dimension, lightweight, portable, fully-sealed, highly-reliable design especially suitable for working outdoors
Up to 640MHz sampling frequency, measurement resolution of 0.1mm with minimum range of 3mm
Operating Frequency: 0.5 – 20MHz, surplus sensitivity up to 65dB
Bright, high resolution (640×480) color TFT display realizing the best measurement result in similar products
High performance square wave pulser with tuning option allows the operator to tune the pulse width of the square wave pulser to optimize transducer performance. This maximizes signal-to-noise and penetration in difficult materials such as highly-attenuated materials or thin work-pieces
LAN port allows remote data transfer and management. It provides management to instrument parameters when the instrument is used as independent square wave pulser
High-speed USB interface allows data storage on USB drive and PC communication. To interface with a mouse to secure accurate analysis on report with A-scan
Internal charger, auto switch between “charge” and “work”. Power supplied by battery or AC mains. The operating time of onboard Li battery is more than 6 hours
Multi-software functions to meet all inspection needs, unique keypad organization and rotary knob operation, user-friendly design for menu, English/Chinese language menu options, English/Chinese input and edit functions make the inspection much easier
Automatically test the transducer frequency, tune the pulse width of square wave pulse to optimize transducer performance
Thickness alarm function, continuous storage function of waveform and various measurement modes of waveforms
Automatically calibrate instrument specifications and search the peak value

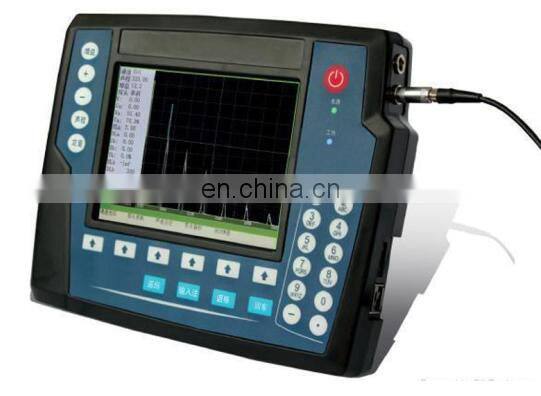

2.Picture for Our product
3.Usage and Application
Ultrasonic flaw detector is a portable industrial non-destructive testing equipment, it can quickly, easily, without damage, accurate inside the workpiece a variety of defects (cracks, loose, pores, inclusions, etc.) detection, positioning, assessment and diagnosis. Can be used in the laboratory, can also be used for engineering site. Widely used in the boiler, pressure vessel, aerospace, aviation, electricity, petroleum, chemical, offshore oil, pipeline, shipbuilding, automobile, machinery manufacturing, metallurgy, metal processing industry, steel structure, railway transportation, nuclear power, universities industry.
4.Technical data
| Transmitter Pulse | Square Wave Pulser |
| Transmitter Pulse Voltage | 25 ~ 400V, continuously |
| Test Modes | Pulse echo and dual transmission |
| Damping | 400, 80 Ohm |
| Frequency | 0.5 ~ 20MHz. Broadband / narrowband optional |
| Gain | 0.0~ 120.0dB. Steps as 0.1, 1.0, 2.0, 6.0 dB |
| Material Velocity | 1000 ~ 15000m/s continuously adjustable. 30 common material velocities selectable |
| Range | 0.0~ 10000mm longitudinal wave at steel velocity. Range continuously variable with minimum 0.1mm increments |
| Rectification | Positive halfwave, negative halfwave, full wave, RF |
| Alarm | Real-time alarm signal indicated by horn or LED indicator |
| Display | 5.7" high-brightness TFT color LCD |
| Pulse Shift | -20 ~ 3400μs |
| Probe Zero Offset | 0 ~ 999.9μs |
| Pulse Repetition Frequency (PRF) | 25 ~ 1000Hz, auto and manual adjustment modes optional |
| Vertical Linearity Accuracy | ≤2% |
| Horizontal Linearity Accuracy | ≤0.1% |
| Surplus Sensitivity | ≥65dB |
| Resolutions | ≥45dB |
| Dynamic Range | ≥32dB |
| Reject (suppression) | 0 ~ 99% |
| Electric Noise Level | <10% |
| Interface | C6 transducer connections, USB HOST, LAN, RF OUT, Two-dimensional encoder interface |
| Power Supply | Large-capacity Li Battery, no memory effect; Battery Operating time: More than 6 hours |
| Environmental Temperature | -20 ~ 50℃ |
| Relative Humidity | 20% ~ 95%RH |
| Weight | 1 Kg (with battery) |
5.Related Product
| Ultrasonic thickness gauge | |
![]() |
![]() |


Warranty and After-sale service
♥♥We Supply 1 Year Warranty , And Lifelong Free Technical Guiding And Training♥♥

1. How can I choose the suitable one?
Dear customer, please tell us your detailed requirements by mail or online, we will recommend the suitable one as your request.
2. Does your price is competitive?
Dear customer, we make sure to offer you the best quality with competitive price.
3. How can I pay?
Dear customer, we accept many payment term, such as T/T, Western Union…
4. When I receive it after pay?
Dear customer, normal models can be delivered with 5-7days, please contact us to check transport time to your address.
5. How to deliver?
Dear customer, we can send by Express, by Sea and by Air.
6. Is will be broken during transport?
Dear customer, please do not worry, we do standard export package.
7. What should I do if I do not know how to use?
Dear customer, please do not worry, manual user will be sent together, you can also contact us with more technological support.
8. What should I do if some parts broken?
Dear customer, please do not worry, we have 12months warranty except wear parts. You can also buy parts from us after 12months.
