Essential Oil Distiller 50l Distillation Equipment Rotary Evaporator With Water Chiller

Nanbei Instrument Limited
Essential Oil Distiller 50l Distillation Equipment Rotary Evaporator With Water Chiller thumbnail-1
Essential Oil Distiller 50l Distillation Equipment Rotary Evaporator With Water Chiller thumbnail-2
Essential Oil Distiller 50l Distillation Equipment Rotary Evaporator With Water Chiller thumbnail-3
Essential Oil Distiller 50l Distillation Equipment Rotary Evaporator With Water Chiller thumbnail-4
Essential Oil Distiller 50l Distillation Equipment Rotary Evaporator With Water Chiller thumbnail-5
Essential Oil Distiller 50l Distillation Equipment Rotary Evaporator With Water Chiller photo-1
Essential Oil Distiller 50l Distillation Equipment Rotary Evaporator With Water Chiller photo-2
Essential Oil Distiller 50l Distillation Equipment Rotary Evaporator With Water Chiller photo-3
Essential Oil Distiller 50l Distillation Equipment Rotary Evaporator With Water Chiller photo-4
Essential Oil Distiller 50l Distillation Equipment Rotary Evaporator With Water Chiller photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
2015
Annual Export Value:
Below US$1 Million
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description

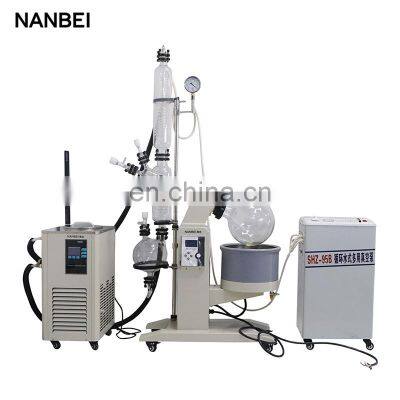

Essential oil distiller 50l rotary evaporator with water chiller

Motor has the function of 10-120 RPM stepless speed regulation and automatic lifting, revolving consists of a set of stable and reliable micro motor, speed motor and integrated circuit control device. In the role of electronic speed, it can rotating steadily in 10-120 RPM range, it has reached the advanced level at home and abroad.
1 Quick and easy lifting mechanism
2 Evaporator along the horizontal direction can lean in 0-45 ℃ arbitrarily.
3 Vertical condensation system of high rate of evaporation
4 Vacuum sealing way
5 Automatic control temperature digital display
Specification
Model
NBRE-50L
NBRE-100L
Glass meterial
GG-17
GG-17
Holder material
Stainless steel
Stainless steel
Pot shell Material
Spray anti-corrosion
710*620*700mm
Spray anti-corrosion
820*820mm
Pot bravery
Stainless steel
550*320mm
Stainless steel
795*330mm
Plate size
804*574mm
1600*830mm
Evaporator
flask
50L
flange mouth:Φ125mm
100L
flange mouth:Φ180mm
Collect flask
20L
flange mouth:Φ60mm
50L
ball mouth:Φ40mm
Vacuum degree
0.098Mpa
0.098Mpa
Rotary speed
0-110RPM
0-110RPM
Rotary power
180W 220V/50HZ
400W 220V/50HZ
Heating power
8KW 380V/50HZ
12KW 380V/50HZ
Heating temp.
0-400℃
0-400℃
Temp. accuracy
±1℃
±1℃
Lifting stroke
180mm
180mm
Dimension
1520*620*2470mm
1700*850*2600mm
Packing weight
170kg
400kg
If You Need Other Model, Please Contact Us To Get More Information
More Details Photos
Application
Rotary evaporator is the necessary basic instrument for chemical industry, medicine industry, institutions of higher learning and scientific research laboratory and other units, it is the main means for manufacturing and analyzing experiments when they do extraction and concentration .
