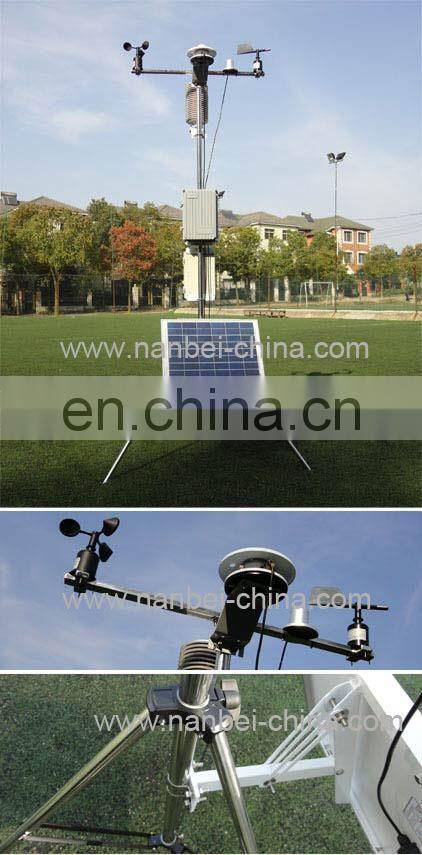

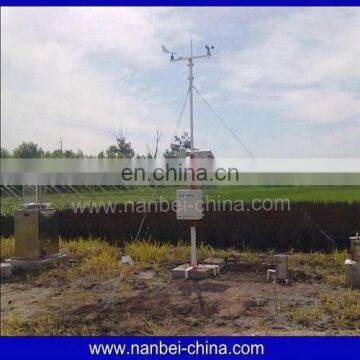

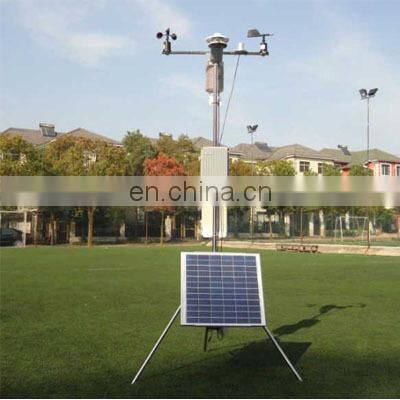

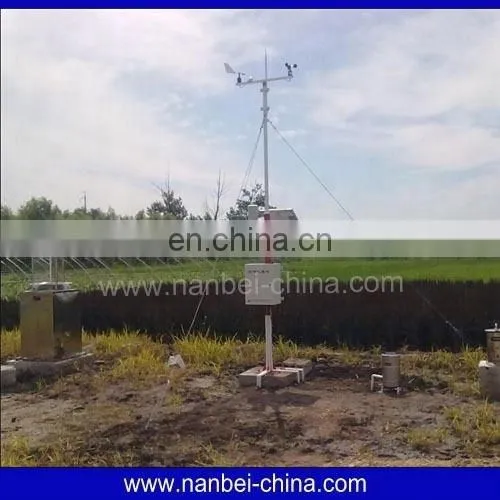

Automatic agrometeorological station
1,Product Description
Automatic weather station system is a set of meteorological data acquisition, storage, transmission and management
in one of the unmanned weather acquisition system. It has extensive use in industrial and agricultural production,
tourism, urban environmental monitoring and other areas of expertise.
Automatic weather station system is composed of three parts of the meteorological sensor and meteorological
data collection instrument and computer meteorological software. It can simultaneously monitor
the atmospheric temperature, atmospheric humidity, soil temperature, soil moisture, rainfall, wind speed,
wind direction, barometric pressure, radiation, illumination and many meteorological elements; such as wind
speed and direction sensing sensors for meteorological sensors, with characteristics of high precision and
high reliability. Meteorological data collection instrument has functions of meteorological data acquisition,
real-time clock, timing storage of meteorological data, parameter setting, friendly interface and
standard communication.
The built-in high capacity FLASH memory chip can store more than one year meteorological data; variety of
communication interfaces (RS232/RS485/USB) can easily build wired communications and computer connection,
if the optional GPRS wireless communication module can also achieve meteorological equipment and
computer monitoring center remote wireless connection.
2,Basic Configuration
The acquisition instrument: meteorological data collection instrument
Sensors: wind speed, wind direction, air temperature, air humidity.
Communication way: RS232, RS485, USB, GPRS (wireless)
Power supply system: DC 12~36V, AC 220V, solar cells
Software installation disk: weather software installation disk
Mounting parts (optional): light shutter boxes, field protection case, a tripod, a variety of adapter cable
3,Meteorological sensor parameters
|
Name |
Measuring range |
Resolution |
Accuracy |
|
Wind speed sensor |
0~45m/s |
0.1m/s |
±(0.3±0.03V)m/s |
|
Wind direction sensor |
0~360º |
1° |
±3° |
|
Air temperature sensor |
-50~+100℃ |
0.1℃ |
±0.5℃ |
|
Air humidity sensor |
0~100%RH |
0.1%RH |
±5% |
|
Soil temperature sensor |
-50~+80℃ |
0.1℃ |
±0.5℃ |
|
Soil moisture sensor |
0-100% |
0.1% |
±3% |
|
Rain sensor |
≤4mm/min |
0.2mm |
±4% |
|
Total radiation sensor |
0.3~3μm |
1W/m2 |
±5% |
|
Pressure sensor |
10~1100hPa |
0.1hpa |
±0.3hPa |
|
Evaporation sensor |
1000mm |
0.1mm |
±0.5% |
External storage (SD card and U disk) function
It can use mobile memory (U disk or SD card) completed the continuous monitoring data storage, storage time
arbitrarily set, then the U disk or SD card data directly into the computer. U disk or SD card storage capacity
to ensure that the data for a long time permanent storage. So, the system has an unlimited amount of storage
characteristics.
Communication Interface
There are three communication interfaces in front of the weather station: RS232, USB, RS485, select any
communication interface which can establish communication with the computer is connected through the
communication cable.

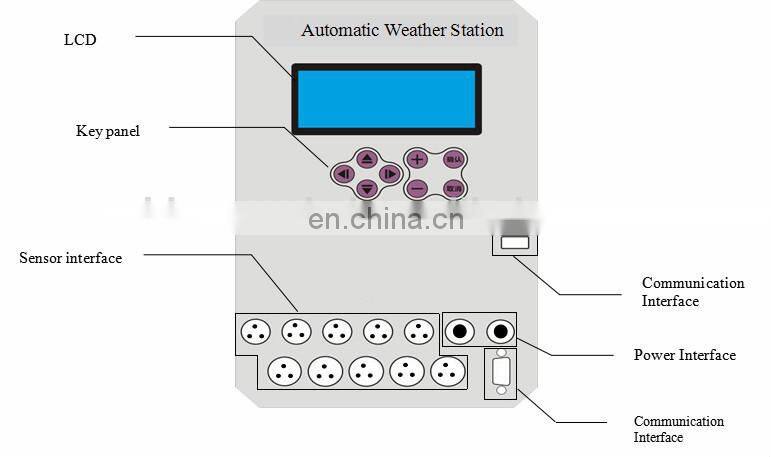

Control Panel:
Please advise me the elements you need , and
Any interests, please contact: Mobile/WhatsApp: 008613733828061, skype: sarah.tang79
Certificate
After-Sale Service
Please feel free contact for more details .Thanks
