Product Description
Lab high-precision 190-1100nm uv/vis spectrophotometer for food medicine health agriculture
RODUCT DETAILS FOR UV/VIS SPECTROPHOTOMETER NU-T6;
Lab high-precision 190-1100nm uv/vis spectrophotometer for food medicine health agriculture
Characteristics:
1.Good stability: The integrated structure design (8mm heat-treated aluminum alloy base) ensures long-term reliability and stability of the instrument.
2.High Accuracy: Using grating micrometer level precision screw drive to ensure the accuracy of wavelength ＜±0.5nm；Transmittance of accuracy reaches ±0.3%.
3. Convenience for use: 5.7 inch graphic LCD display. Spectrum curve be clear at a glance and easy to operate. There is quantitative analysis、qualitative analysis、 kinetics test、 DNA/RNA、 multi- wavelength analysis in special purpose testing program.
4.Service life durable: Imported Halogen lamp ensures the light source for up two years of life, receiver life for 20 years.
5.Wide application fields: Autosampler, micro cell holder，Optional Equipped with Peltier/sipper unit, with Micro cell holder, with (5°incident angle) Reflectance measurement attachment etc. expands the application areas of more.
Function of products Lab high-precision 190-1100nm uv/vis spectrophotometer for food medicine health agriculture
1.hotometric measurement: Convenience to measure samples in the specified wavelength absorbance and transmittance. Multi-wavelength detector is maximum simultaneous determination of 10 wavelengths.
2.Quantitative measurement: Establish automatically standard curve, first- order first after we order the third order curve fitting. Optional method: Single wavelength calibration、Double wavelength calibration、Three point method,
3Qualitative measurement: Including scaling, smoothing, filtering, detecting peak-valley etc.
4.Kinetics measurement: Calculate kinetics of enzyme reaction rate. There are scaling, smoothing, filtering, detecting peak-valley and finding the derivative in a variety of graph processing methods for your choice.
5.DNA/RNA，Test function of protein calculates automatically the sample ratio and concentration.
More Details Photos
Specification
Model | NU-T6 | NU-T6A | |
Optical System | Single, Littrow,Grating 1200 line/mm | ||
Wavelength Range | 190～1100nm | ||
Spectral Bandwidth | 4nm | 2nm | |
Wavelength Accuracy | ±0.5nm | ||
Wavelength Repeatability | ±0.2nm | ±0.2nm | |
Photometric Accuracy | ±0.3%T；±0.002Abs（0~0.5Abs）；±0.004（0.5-1.0Abs）； | ||
Photometric Repeatability | ±0.1%T；±0.001Abs（0~0.5Abs）；±0.002（0.5-1.0Abs）； | ||
Stray Light | ≤0.05%T, @220nm/360nm | ||
Noise Level | ±0.002Abs | ||
Stability | ±0.002A/h@500nm | ||
Baseline Flatness | ±0.002Abs | ||
Baseline Dark Noise | 0.1%T | ||
Photometric Range | 0～200℅T，-4～4A,0～9999C(0-9999F) | ||
Light Source | Tungsten＆Deuterium Lamp(Pre-aligned) | ||
Scan Speed | Hi,MED.,LOW.,MAX.3600nm/min | ||
Display | 320×240 Dots Array Graphic LCD | ||
System Language | English | ||
Output | USB1.1 Connecting to computer＆Parallel port for printer | ||
Power Requirement | AC90～250V/ 50～60Hz | ||
Dimensions(L×W×H)(mm) | 550×400×210 | ||
Weight | 23kg | ||

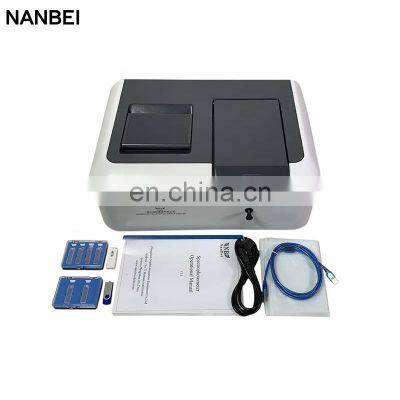

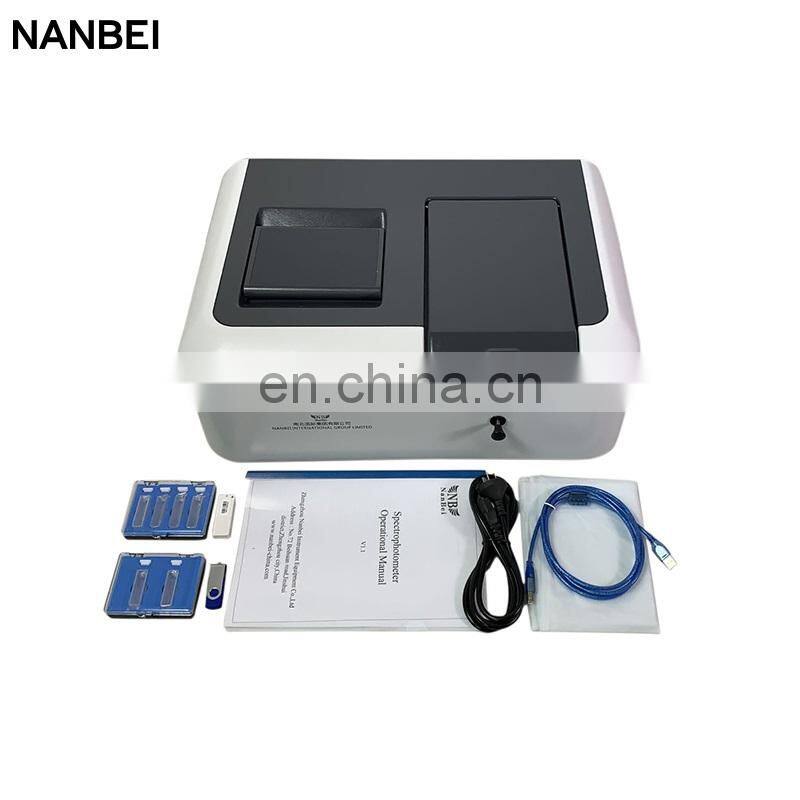

Packinglist List
Description | Quantity |
Spectrophotometer | 1 |
Mains Lead | 1 |
Cuvettes | 4 Sets glass 2 Sets quartz |
Dust Cover | 1 |
Manual | 1 |
