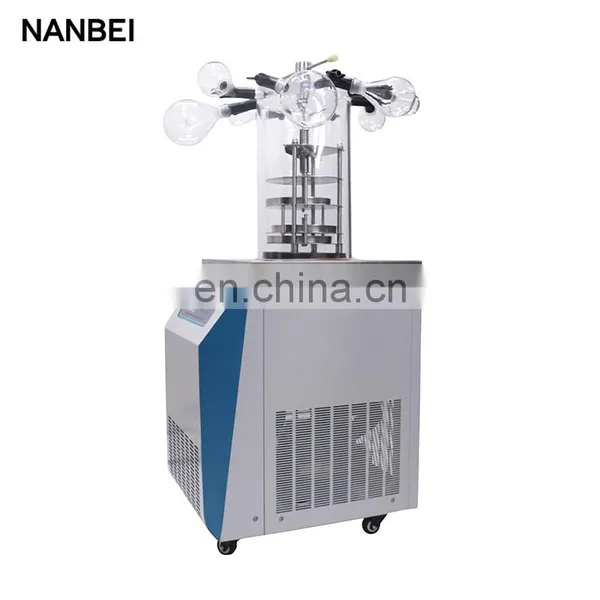

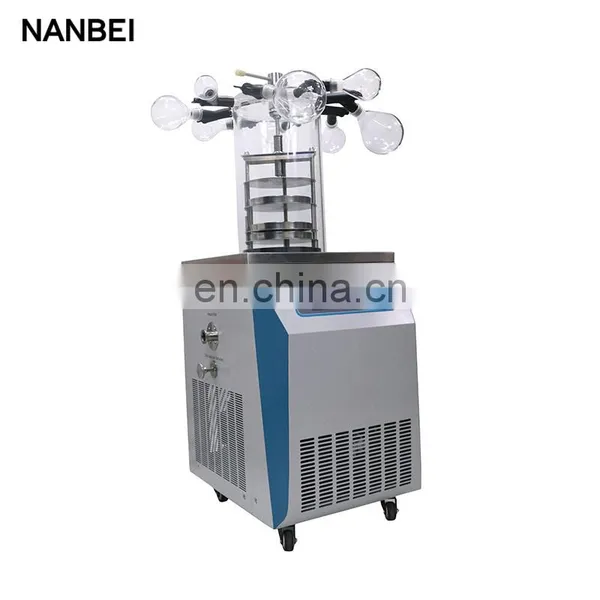

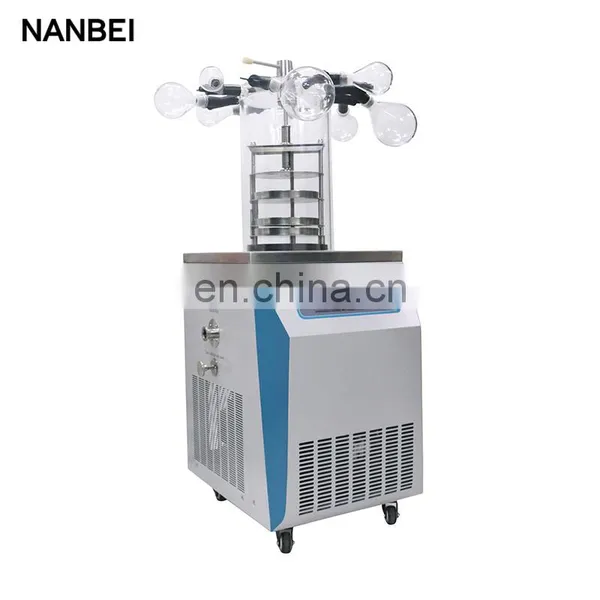

Large Opening Trap Vertical Vacuum Freeze Dryer Lyophilizer for Laboratory or Food

Large Opening Trap Vertical Vacuum Freeze Dryer Lyophilizer for Laboratory or Food thumbnail-1
Large Opening Trap Vertical Vacuum Freeze Dryer Lyophilizer for Laboratory or Food thumbnail-2
Large Opening Trap Vertical Vacuum Freeze Dryer Lyophilizer for Laboratory or Food thumbnail-3
Large Opening Trap Vertical Vacuum Freeze Dryer Lyophilizer for Laboratory or Food thumbnail-4
Large Opening Trap Vertical Vacuum Freeze Dryer Lyophilizer for Laboratory or Food thumbnail-5
Large Opening Trap Vertical Vacuum Freeze Dryer Lyophilizer for Laboratory or Food photo-1
Large Opening Trap Vertical Vacuum Freeze Dryer Lyophilizer for Laboratory or Food photo-2
Large Opening Trap Vertical Vacuum Freeze Dryer Lyophilizer for Laboratory or Food photo-3
Large Opening Trap Vertical Vacuum Freeze Dryer Lyophilizer for Laboratory or Food photo-4
Large Opening Trap Vertical Vacuum Freeze Dryer Lyophilizer for Laboratory or Food photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
2015
Annual Export Value:
Below US$1 Million
Contact Supplier Request Quote Chat Now
Nanbei Instrument Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description

Characteristics of Lyophilizer Vacuum Function Freeze Dryer

●Accord with international standards of Green environmental friendly ● 7" True-color Touch Screen, Chinese English Bilingual Interface, display drying curve and history curve; ● U disk Can storage lyophilized data; ● Upload software can print curve; ● Embedded circuit design, 128 M FLASH, can save dozen times Lyophilized data; ●Large opening trap, no coil inside, with samples pre-freeze function ● Imported refrigeration compressor, low noise ● Cold trap and control panel were made by stainless steel, corrosion-resistant, easy to clean ● Transparent Bell type drying room, secure and ocular ● Stainless steel sample holder, common sample plate spacing adjustable ● Small size and easy to operate ● Nitrogen inflation valve within
More Details
Specification

Main Technical Parameters of Lyophilizer Vacuum Function Freeze Dryer

NB-10N Freeze Dryer
NB-10N
Ordinary
Top-Press
Ordinary Multi-Manifolds
Top-Press Multi-Manifolds
No-load Temperature
<-56℃
<-56℃
<-56℃
<-56℃
Freeze Area
0.12 m2
0.08 m2
0.12 m2
0.08 m2
Plate Load Capacity
1.5 L
1 L
1.5 L
1 L
Ability to Capture Water
3Kg
3 Kg
3 Kg
3 Kg
Vacuum Degree
<10Pa
<10Pa
<10Pa
<10Pa
Machine Dimension
W450×D580×H(380+450)mm
W450×D580×H(380+450)mm
W450×D580×H(380+450)mm
W450×D580×H(380+450)mm
Sample Tray Size
4×Φ200mm
Ø 3×180 mm
4×Φ200mm
Ø 3×180 mm
Power
950W
950W
950W
950W
Power Supply
110V/60Hz or 220V/50Hz
110V/60Hz or 220V/50Hz
110V/60Hz or 220V/50Hz
110V/60Hz or 220V/50Hz
interlayer spacing
70 mm
70 mm
70 mm
70 mm
Cold trap size
Ø215×160 mm
Ø215×160 mm
Ø215×160 mm
Ø215×160 mm
The number of
Schering bottles
Ø22: 260
Ø22: 165
Ø22: 260
Ø22: 165
Ø16: 480
Ø16: 285
Ø16: 480
Ø16: 285
Ø12: 920
Ø12: 560
Ø12: 920
Ø12: 560
Ordinary
Top-Press
Ordinary Multi-Manifolds
Top-Press Multi-Manifolds
NB-12N Freeze Dryer
NB-12N
Ordinary
Top-Press
Ordinary Multi-Manifolds
Top-Press Multi-Manifolds
No-load Temperature
<-56℃
<-56℃
<-56℃
<-56℃
Freeze Area
0.12 m2
0.08 m2
0.12 m2
0.08 m2
Plate Load Capacity
1.5 L
1 L
1.5 L
1 L
Ability to Capture Water
4Kg
4Kg
4Kg
4Kg
Vacuum Degree
<10Pa
<10Pa
<10Pa
<10Pa
Machine Dimension
W600×D460×H(720+450)mm
W600×D460×H(720+450)mm
W600×D460×H(720+450)mm
W600×D460×H(720+450)mm
Sample Tray Size
4×Φ200mm
Ø 3×180 mm
4×Φ200mm
Ø 3×180 mm
Power
950W
950W
950W
950W
Power Supply
110V/60Hz or 220V/50Hz
110V/60Hz or 220V/50Hz
110V/60Hz or 220V/50Hz
110V/60Hz or 220V/50Hz
interlayer spacing
70 mm
70 mm
70 mm
70 mm
Cold trap size
Ø215×216 mm
Ø215×216 mm
Ø215×216 mm
Ø215×216 mm
The number of
Schering bottles
Ø22: 260
Ø22: 165
Ø22: 260
Ø22: 165
Ø16: 480
Ø16: 285
Ø16: 480
Ø16: 285
Ø12: 920
Ø12: 560
Ø12: 920
Ø12: 560
Ordinary
Top-Press
Ordinary Multi-Manifolds
Top-Press Multi-Manifolds
NB-18N Freeze Dryer
NB-18N
Ordinary
Top-Press
Ordinary Multi-Manifolds
Top-Press Multi-Manifolds
No-load Temperature
<-56℃
<-56℃
<-56℃
<-56℃
Freeze Area
0.18 m2
0.09 m2
0.18 m2
0.09 m2
Plate Load Capacity
2 L
1 L
2 L
1 L
Ability to Capture Water
6Kg
6Kg
6Kg
6Kg
Vacuum Degree
<10Pa
<10Pa
<10Pa
<10Pa
Machine Dimension
W670×D530×H(800+450)mm
W670×D530×H(800+450)mm
W670×D530×H(800+450)mm
W670×D530×H(800+450)mm
Sample Tray Size
4×Φ240mm
Ø 3×200 mm
4×Φ240mm
Ø 3×200 mm
Power
1300W
1300W
1300W
1300W
Power Supply
110V/60Hz or 220V/50Hz
110V/60Hz or 220V/50Hz
110V/60Hz or 220V/50Hz
110V/60Hz or 220V/50Hz
interlayer spacing
70 mm
70 mm
70 mm
70 mm
Cold trap size
Ø270×410 mm
Ø270×410 mm
Ø270×410 mm
Ø270×410 mm
The number of Schering bottles
Ø22: 360
Ø22: 270
Ø22: 360
Ø22: 270
Ø16: 740
Ø16: 560
Ø16: 740
Ø16: 560
Ø12: 1320
Ø12: 990
Ø12: 1320
Ø12: 990
Ordinary
Top-Press
Ordinary Multi-Manifolds
Top-Press Multi-Manifolds
