Product Description

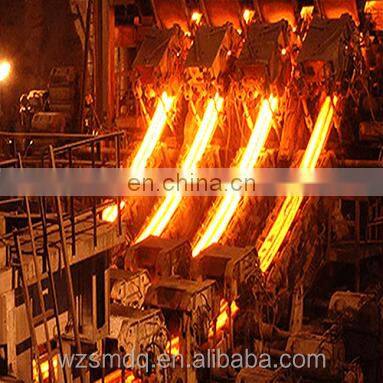

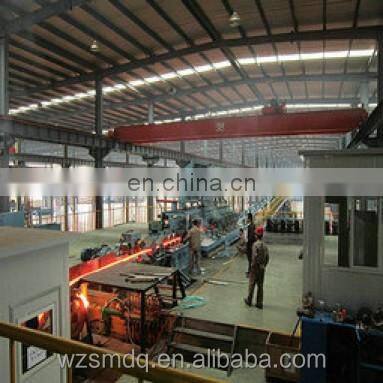

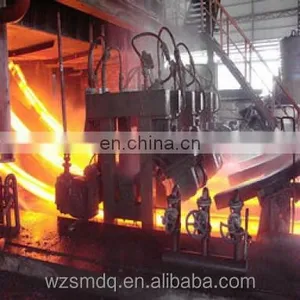

Electric continuous casting machine for steel billet producing
CCM radius: from R2m to R12m
Rounds diameter: 80-320sq.mm
Strand No.: from 1 to 8
Billet length: 3-12m
1. Equipment foundation and civil works 11. Dummy bar
2. Steel structure platform 12. Dummy bar storage device
3. Casting radius 13. Withdrawal straightening machine
4. Strand number 14. Approach roller table
5. Ladle support 15. Automatic cutting machine
6. Tundish 16. Transmit roller table
7. Tundish car 17. Cooling bed
8. Mould 18. Pusher
9. Oscillation device 19. Hydraulic system
10. Secondary cooling system 20. Computer and PLC system
21. Tundish roaster
The billet continuous casting machine can be designed as curved and vertical-bend according to the users requirements. It can cast carbon steel, alloy steel and special steel, such as stainless steel. Automatic hydraulic control, automatic secondary cooling water distribution, compressed air-water cooling system. Technical support, design, feasibility report, manufacturing, erection and commissioning, cooperate with special institution, and our own engineer team, we do not only export the machinery, but also run the factory.
1. Strip plate mould of the entirety copper-tube mode which is simple and low cost.
2. High-frequency and small-swing plate spring vibration, the depth of vibration mark is under 0.2mm.
3. The simplified billet guiding device is low cost and easy maintenance.
4. Five-roller and four-drive straightening machine is of the large straightening.
5. Auxiliary straightening machine can re-straighten the billet in emergency.
6. Stainless steel cutting machine can cut-to-length accurately.
7. The coping rate in the surface is less than 5%.
8. Computer and PLC system
9. Tundish roaster
