Product Description
Copper tube/rod horizontal Continuous Casting Machine
Brief Introduction:

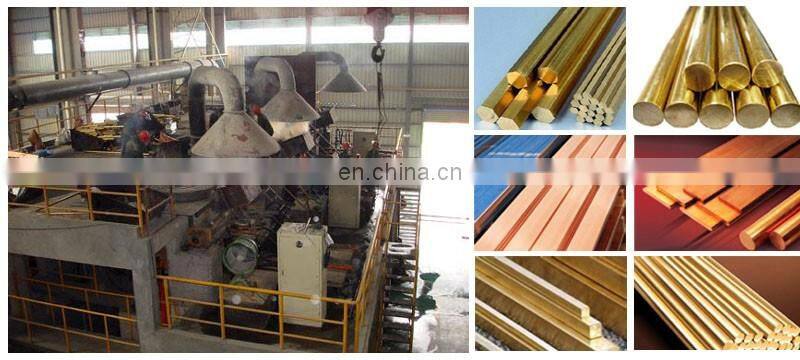

Copper Horizontal Continuous Casting Machine is a production lines for producing the copper rod, copper tube, copper bar, copper plate, copper billet, copper wire, copper strip etc. And This production lines are widely service for the industries like produce the electric wire, cable, electron, lockmaking, water heating equipments, refrigeration .
Model | CDO-0.15T | CDO-0.3T | CDO-0.5T | CDO-0.75T | CDO-1.0T | CDO-1.5T | CDO-3.0T |
Capacity (T) | 0.5 | 0.8 | 1.5 | 1.8 | 2 | 2.5 | 5 |
Power (KW) | 45 | 75 | 120 | 185 | 240 | 400 | 600 |
Frequency(HZ) | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
Temperature(℃) | 1200 | 1200 | 1200 | 1200 | 1200 | 1200 | 1200 |
Melting Rate (T/H) | 320 | 310 | 300 | 290 | 290 | 280 | 280 |
Comsuption(KW.H/T) | 80 | 100 | 150 | 200 | 250 | 500 | 800 |

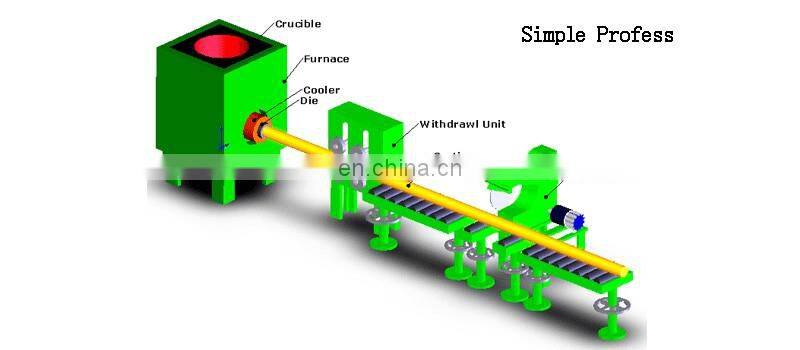

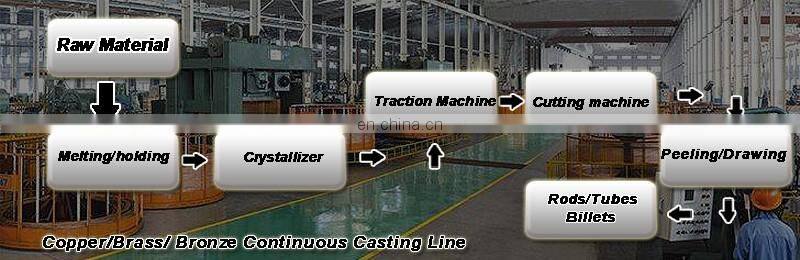

Machine Composition
1. Furnace (melting furnace and holding furnace); 2. Tractors; 3. Automatic cutting machine;
4. peeling machine(barking machine)
5. Electric control system; 6.Water cooling system; 7. Dust removal equipment.

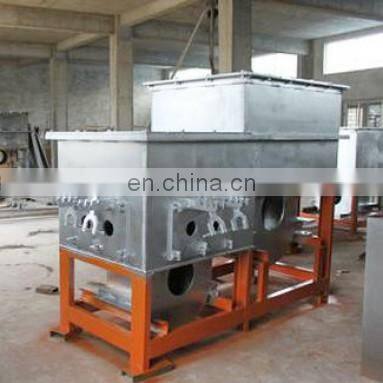

Melting furnace/ holding furnace:
Melting furnace is vertical structure and welded by steel plate, and the furnace consists of furnace body, inductor, tilting furnace system, electrical control. and about the Holding furnace, which is used for thermal insulation and traction. The holding furnace can be used separately, also can be used with melting furnace together.
Tractor
Distance between two wheels can be adjusted; available For dimension 10-65mm copper;
Adjustable tracting speed; To tract the copper straightly, improving the production and quality.
Cutting machine
Titighen the copper both the vertical and horizontal direction; High cutting efficiency and precision;
Automative collection of the cutting slag; Low-voltage on the control cabinet for safe operation.
Peeling machine
Hydraulic motivation for sending; Widely use for pipe, bar, flat, and irregular metal.
