Vacuum Pressurized High Temperature Copper Platinum Bullion Casting Device

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Products Description

Vacuum pressurized high temperature copper platinum bullion casting device

CDOCAST vacuum gold bar machine is specially designed for casting high quality gold and silver bar ingots. This machine for making gold bars can melt 4 x 1 kg of gold and silver ingots in each batch. Or up to 1 piece of 15kg gold bar per batch and other custom size gold bars can also be cast in our furnace. The whole melting process takes place under the protection of vacuum and argon gas. The molten ingot has a glossy surface and no water waves.The entire vacuum smelting and casting process minimizes the loss of precious metals and maximizes the protection against metal oxidation.

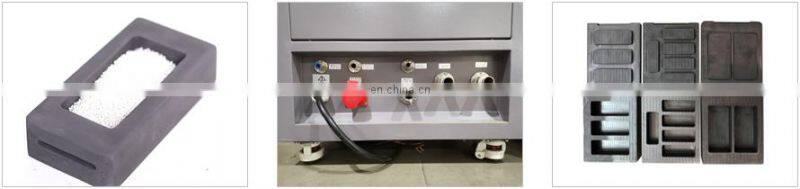

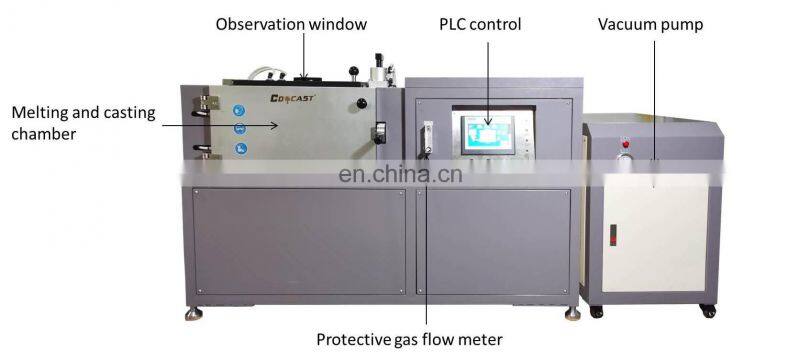

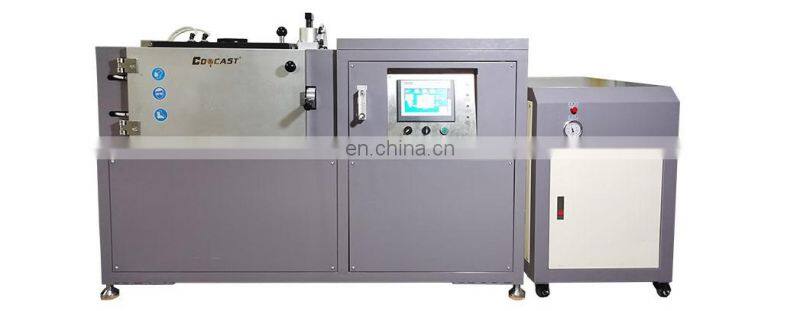

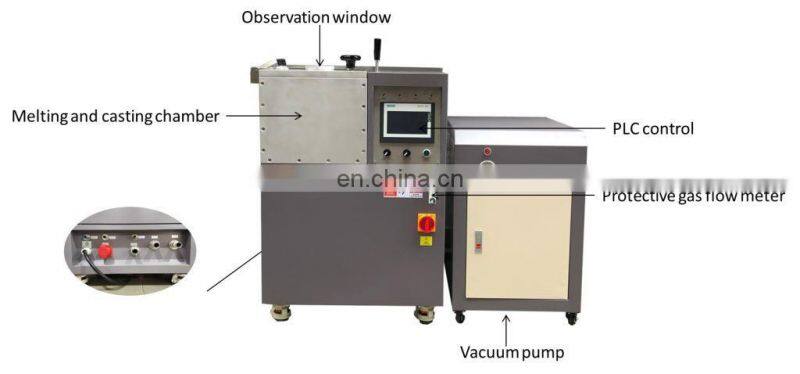

Details Images

Product Paramenters

Model number	CDO-F1	CDO-F2	CDO-F4
Power source	Three phase 380V±10%, 50/60Hz	Three phase 380V±10%, 50/60Hz	Three phase 380V±10%,50/60Hz
Power	25 kw	35 kw	75kw
Control system	PLC/Manual	PLC/Manual	PLC/Manual
Applicable metal	Gold and silver	Gold and silver	Gold and silver
Casting time	About 6 min	About 7 min	About 8 min
Cooling time	About 7 min	About 7min	About 8 min
The Max capacity	1 pcs of 1kg bar or customized	2 pcs of 1kg bar or customized	4 pcs of 1kg bar or 15kg bar
Dimension	14007001200 mm	14007001200 mm	16007001200 mm
Weight	150 kg	210 kg	230 kg
Protective gas	Nitrogen or argon	Nitrogen or argon	Nitrogen or argon
Vacuum pump	63 m³/hour	63 m³/hour	63 m³/hour
Heating technology	Induction heating	Induction heating	Induction heating
Casting mode	Auto and manual mode switch	Auto and manual mode switch	Auto and manual mode switch

Application

Feature

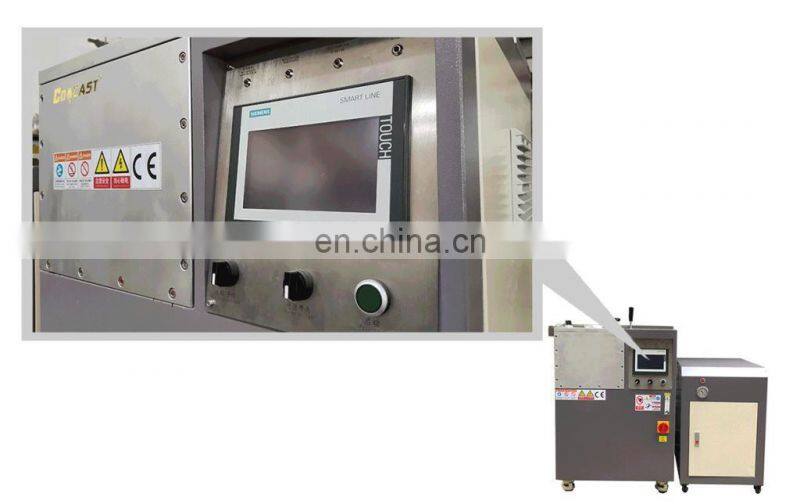

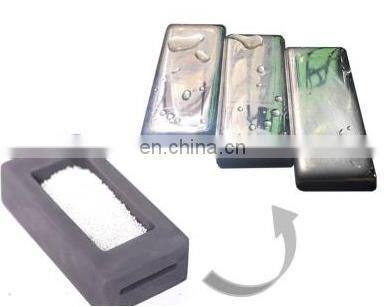

1: Our Vacuum gold bar casting machine comes with the plc touch screen system control, the operator only has to filled in the graphite mould with the pre-weighted raw material, like gold powder, gold grain, close the door of the melting chamber as well as press the START switch to release the automatic cycle, the casting will started automaticly, after finished the casting cycle, you can abtain the gold or silver bar which is ready for the market.

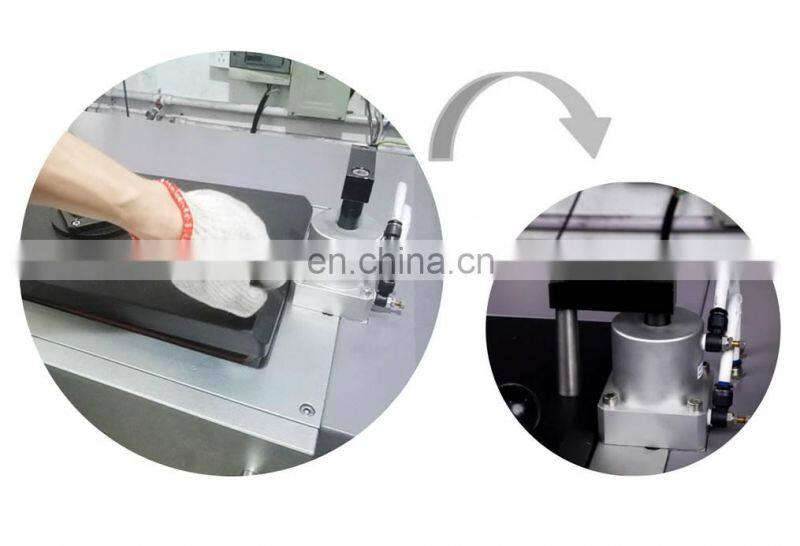

2:The induction coil of the vacuum gold bar making machine is custom designed to be either square or rectangular in shape, with a water cooling plate in the middle of the coil. After melting, the cooling plate will be jacked up by a cylinder to rapidly cool the graphite mould, allowing the graphite cover and graphite mould to reach the same temperature, resulting in a bright and flat surface.
3:The entire casting process consists of melting and cooling process, with melting times ranging from 6 to 12 minutes, depending on the size of the bars The cooling time is usually recommended to be 8 minutes or more, as this will maximise the lifetime of the graphite mould.
4:24-hour continuous operation, thus satisfying customers with high production output requirements.
5:There is no need for engineers to install and debug onsite. Each gold bar casting machine comes with installation and debugging video. Under the video guidance, you can simply complete the installation and start to run our furnace,what is more,each vacuum gold bar making machine produced by CDOCAST will be strictly tested before leaving the factory to ensure stable quality Catalog

Packaging & Shipping

Our services
I.Commissioned from the furnace after delivery, into the warranty period, the warranty period of 12 months.Regardless of the warranty period or warranty period, the furnace, such as failure, received a notice, we are committed to 36 hours to send to the scene to deal with.

II.In the warranty period by our cause failure, we carried out unconditional maintenance and replacement.Due to other causes ofthe failure, we only charge the cost of paid maintenance

III.After the warranty period, we will, as always, do a good job after-sales service, so that users no worries.

Customer Photos

FAQ

1. What is your advantage compared to others?
First, we provided turnkey solution, Cost-effective, highly efficient, durable, and easy-to-operate machine is what we deliver.Second, we have a Strict Quality Control System, Before Being dispatched from our factory all of our equipment will undergo a series of strict test, including the appearance quality test, voltage electrical test, aging test also the package strength checking.

2. If our machine meets fault, how could you help us to solve it?
For failures caused by using process, we will send our aftersales engineer to discuss with you, and you should provide the video of how the machine is broken, we will find out which part of the machine is broken, and then we will send you the broken part By DHL.

3. what is your warranty?
Our warranty period comes from the machine begin to run normally and we will provide the whole life technology support to you for free.
All products sold by COOLDO In the warranty period, we will provide you the spare parts for free. Our engineer will help you do the aftersales through our remote control system. When out of one year warranty time, we will provide the spare parts with the cost price for the whole machine lifetime.
