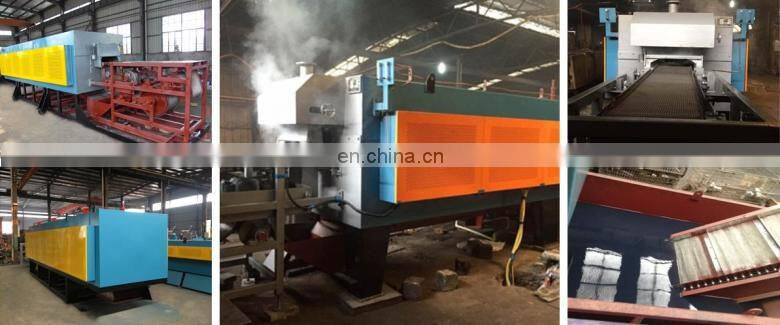

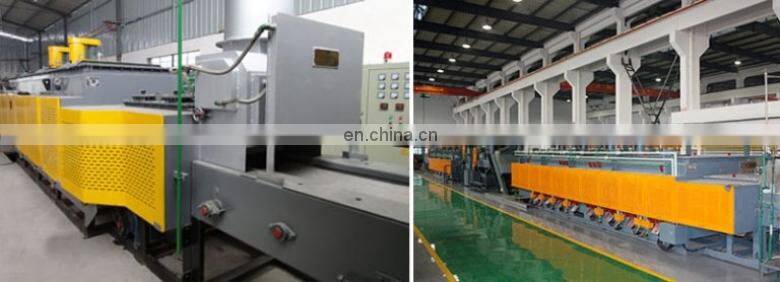

1150C Continuous Heat Treatment Furnace for Annealing, Brazing, Sintering

SMKJ Mesh Belt Conveyor furnace are specifically designed to service for a wide range of heat treatment process, such as Hardening, Carburising, Carbonitriding, Nitriding, bright Annealing, Tempering, Isothermal Annealing and Stress Relieving. The production line equipped with the loading machine, pre-washing machine, carburizing quenching furnace, after cleaning machine, tempering furnace, etc.

1). Driving system of mesh belt: Driving the stailess steel roller with high temperature resistant through the chain wheel to circulatory drag mesh belt move into the chamber, which can expanding the service life of mesh belt and Reducing furnace heat loss, meanwhile improving more high thermal efficiency.
2). Equipped the fan inside of furnace to ensure temperature uniform and protect (carburizing) atmosphere evenly dispersed, which can improve the carburizing speed and workpiece quality.
3). On the rear of furnace equipped with an exhaust fan for timely discharge waste gas and improve gloss of workpiece surface.
4). On the bottom of the furnace body is equipped with slag removal mouth, which can convenient and clean up the slag.
5). New sealing design of furnace door can save 55-65% atmospher consumption, and also deep permeation, 30-40% higer efficiency than before under the pressure at ≥10-100Pa.

Skype : mandymeina

Website:
Cell phone : 0086 15168765707
We had a strong desire to help you ,leave an inquiry now!

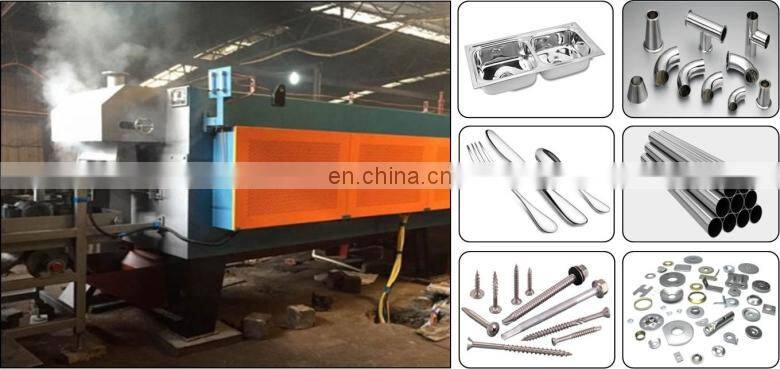

 1). Standard parts industry self tapping screw, drilling screw, wall screws, wood screws and other carbon heat treatment. High tensile screws, inner hexagon screw, screw, nut, etc quenching and tempering heat treatment;

2). Adjustable wrench,open end wrench, box spanner, hexagon wrench, screwdriver, sleeve, pliers, jack, such as hand tools quenching and tempering heat treatment;

3). Auto screw, shaft, hub, connecting rod, car lock ring, piston pin, locomotive screw, top and bottom plug, size bowl, drive shaft, the five group, front fork group, as group, fast valve group and so on automobile, motorcycle, bicycle partsof carburizing heat treatment;

4).  Folder, blade, file, the nail in the four corners, lighters, shoes core, hair clips, pen holder, etc quenching and tempering heat treatment;;

5). Steel nails, nail clippers, hook, chain, hook locks and other hardware parts carburizing heat treatment;

6). Textile machinery parts, bearing parts of carburizing and quenching and tempering heat treatment;
