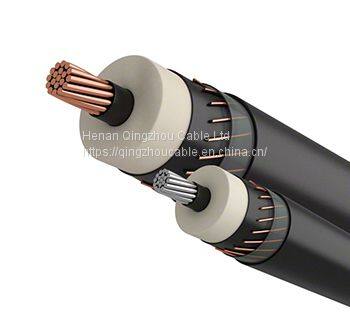

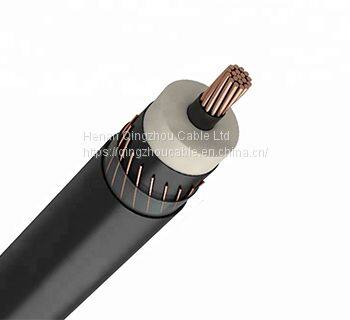

Help CenterPrimary UD Aluminum or Copper TR-XLPE / PVC, Concentric Neutral, 5 kV – 46 kV
Related Products
-
Primary UD Aluminum or Copper EPR / PVC, Concentric Neutral, 15 kV – 46 kVUS$ 0.1 - 2MOQ: 50000 Meters -
Secondary Aluminum URD CableUS$ 0.1 - 2MOQ: 10000 Meters
-
Primary UD Aluminum or Copper EPR / LLDPE, Concentric Neutral, 5 kV – 46 kVUS$ 0.1 - 2MOQ: 10000 Meters
-
Primary UD Aluminum or Copper TR-XLPE / LLDPE, Concentric Neutral, 5kV – 46 kVUS$ 0.1 - 2MOQ: 50000 Meters
-
BS 6622 XLPE MDPE 6.35/11 (12)kV CableUS$ 0.1 - 1MOQ: 10000 Meters
Application
Underground primary residential and commercial distribution circuits.
May be used in wet or dry locations, installed in underground ducts or direct burial.
Conduction
1. Conductor: Soft annealed uncoated copper Class B compressed or unilay compressed per ASTM B8 or hard drawn aluminum Class B compressed or unilay compressed stranding per ASTM B231. On request: strand filled. Sizes: 8 AWG – 1000 kcmil. On request: larger sizes.
2. Conductor Shield: Semi conducting cross-linked polyethylene (XLPE). On request: super clean and super smooth materials.
3. Insulation: Thermoset tree-retardant cross-linked polyethylene (TR-XLPE). On request: cross-linked polyethylene (XLPE).
4. Insulation Shield: Semi conducting cross-linked polyethylene (XLPE).
5. Concentric Neutral: Soft annealed solid copper wires per ASTM B3, helically applied and uniformly spaced. Full or 1/3 Neutral. On request options: alternate neutral constructions, Water Swellable Powder (WSP), and ripcords.
6. Binder Tape: A suitable polyester tape, as required.
7. Jacket: Overlying (sleeve) black polyvinyl chloride (PVC). Configuration: Options. On request:Triplex or Paralleled configurations.
Standards
ICEA S-94-649: Standard for Concentric Neutral Rated Cables 5 – 46 kV.
AEIC CS8: Specifications for Extruded Dielectric, Shielded Power Cable, Rated 5 – 46 kV.
ASTM B8 (Concentric-Lay-Stranded Copper Conductors, Hard, Medium-Hard, or Soft.)
ASTM B231 (Concentric-Lay-Stranded Aluminum 1350 Conductors.)
