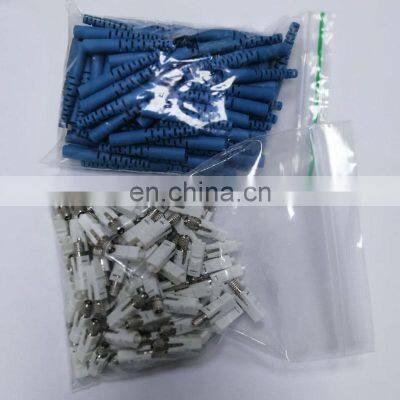

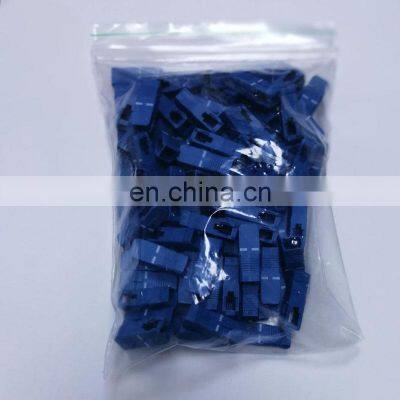

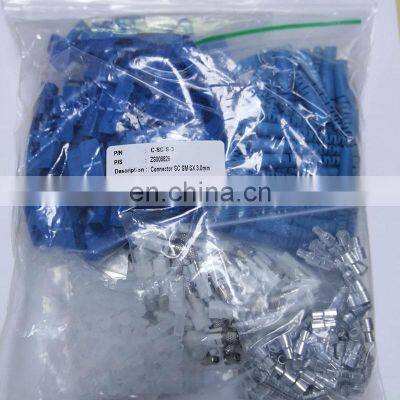

Help CenterSC UPC APC Singlemode Simplex Fiber Optic Connector
Related Products
-
Hot Sell Fiber Optic SC/APC Quick Fast Connector for FTTH SolutionNegotiableMOQ: 1 -
LC UPC APC Duplex Singlemode Fiber Optic AdaptorNegotiableMOQ: 1
-
12 or 24 or 72 Port Fiber Optic Distribution Box Rack Mount or Wall Mount Fiber Patch PanelNegotiableMOQ: 1
-
Standalone 8 Port GPON OLT RB-FD1508GSNegotiableMOQ: 1
-
Factory Price 1U 3U 24/96 Port 19inch Rack Mount Fiber Optic Patch Panel/1U 24port ODF Rack Mount Optical Fiber Patch PanelNegotiableMOQ: 1
Factory supply LC/SC/FC/ST optic fiber connector
1.Feature
1. Low insertion loss and back reflection loss
2. Ferrule end surface predomed
3. Precision anti-rotation key and corrosion resistant body
4. UL-rated plastic housing
5. Boots in a variety of colors
6. Telcordia style boots
7. Free-floating ceramic ferrule
2.Application
1. CATV
2. Active device termination
3. Telecommunication networks
4. Metro
5. Local Area Networks (LANs)
6. Data processing networks
7. Test equipment
8. Premise installation
9. Wide Area Networks(WANs)
3.Standrads
All components and final producs are designed and tested to conform the requirement of IEC 60874-7, CECC 86115-801, Bellcore/Telcordia GR-326, EIA/TIA 604-3A, EIA/TIA 568, ISO/IEC 11801, Belcore/Telcordia GR-409-CORE, IEC 793, IEC 794-1-E1, IEC 794-1-E3, UL 1666/901 and EIA/TIA 455
4.Specification
|
Singemode(UPC) |
Singemode(APC) |
Multimode |
Insertion loss |
≤ 0.2db |
≤ 0.2db |
≤ 0.25db |
Return loss |
≥55db |
≥65db |
≥30db |
Durability |
≤ 0.1db typical change, 1000 times mating |
||
Operating Temperature |
-45 to +85 degree |
||
|
Ferrule Hole Sizes |
125.0+1/-0um, Concertricity: ≤1.0um |
125.0+1/-0um, Concertricity:≤0.5um |
125.0um, Concertricity: ≤3.0um |
125.3+1/-0um, Concertricity: ≤1.0um |
125.3+1/-0um, Concertricity:≤0.5um |
127.0um, Concertricity: ≤3.0um |
|
125.5+1/-0um, Concertricity: ≤1.0um |
125.5+1/-0um, Concertricity:≤0.5um |
128.0um, Concertricity: ≤3.0um |
|
126.0+1/-0um, Concertricity: ≤1.0um |
126.0+1/-0um, Concertricity:≤0.5um |
|
|
5.Product list
| Item | Connector Description | Item | Connector Description |
| PC/UPC/APC | PC/UPC/APC | ||
| Connector Singlemode 9/125 | ST | Connector Multimode (50/125 or 62.5/125) | ST |
| SC | SC | ||
| FC | FC | ||
| LC | LC | ||
| MU | MU | ||
| MTRJ(female) | MTRJ(female) | ||
| MTRJ(male) | MTRJ(male) | ||
| DIN | |||
Our Strength & Quality Assurance
*Factory
Payment & Shippment & Delivery
1.Payment
2.Shipment:by Sea,by Air,by Express:DHL/UPS/Fedex/EMS/TNT etc
3.Deliverty: 3-5 days after payment dowm.
