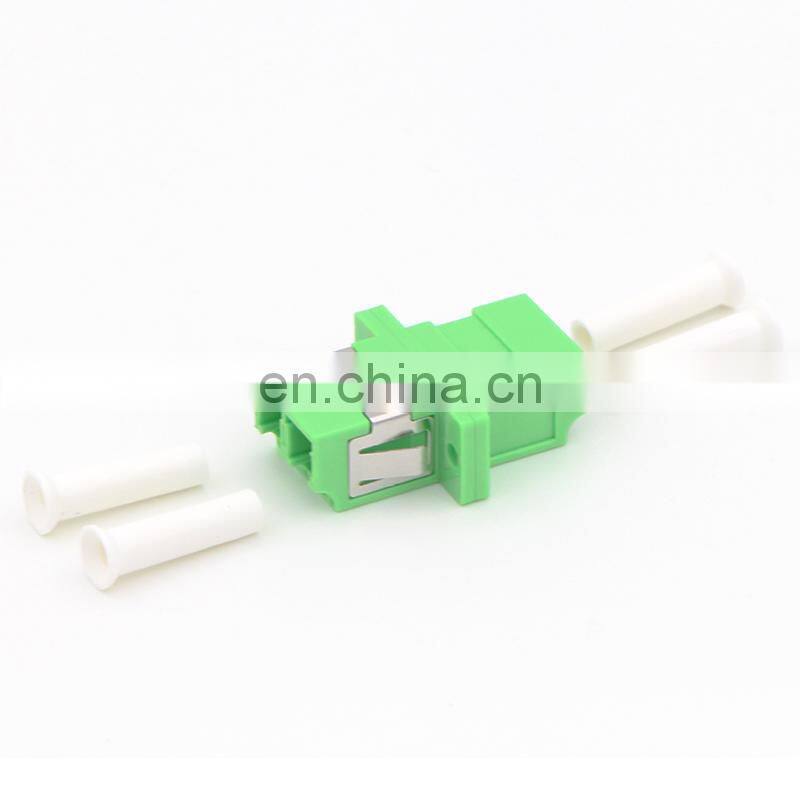

LC UPC APC Duplex Singlemode Fiber Optic Adaptor

LC UPC APC Duplex Singlemode Fiber Optic Adaptor photo-1
LC UPC APC Duplex Singlemode Fiber Optic Adaptor photo-2

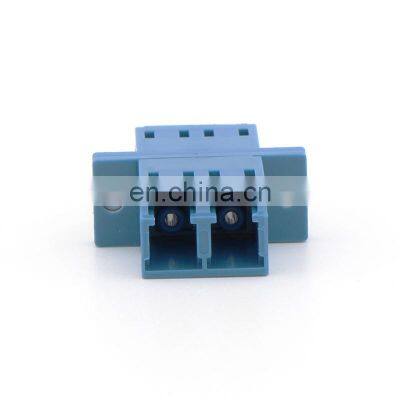

LC UPC APC Duplex Singlemode Fiber Optic Adaptor photo-3

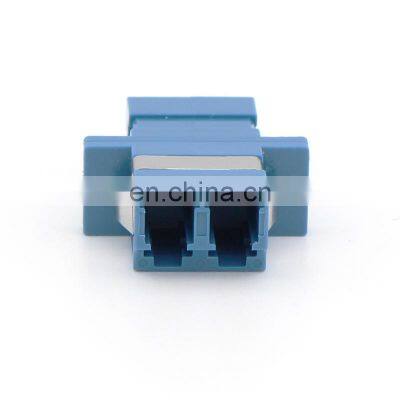

LC UPC APC Duplex Singlemode Fiber Optic Adaptor photo-4

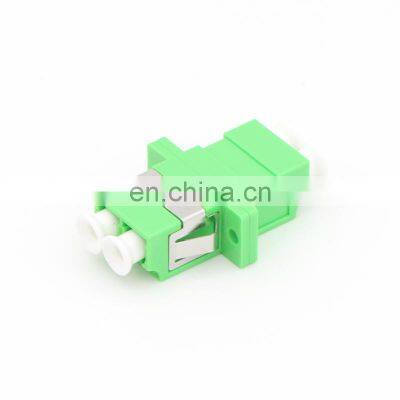

LC UPC APC Duplex Singlemode Fiber Optic Adaptor photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2009
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Product Description



LC UPC APC Duplex Single-mode fiber adapter for FTTH fiber patch panel





1.Description

An fiber optic adapter terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers.



2.Feature

1).Low insertional loss and back reflection loss

2).High prcision alignment

3).NTT-MU hardware compatibility, NTT & JIS compliance

4).Compact design



3.Application

1).CATV

2).Telecommunication networks

3).Test equipment

4).Metro

5).Local Area Networks(LANs)

6).Data processing networks

7).Premise installation

8).Gigabit Ethernet

9).Active device/Transceiver

10).Fiber Optic Subscriber network transimission/switching equipment







4.Specification

Insertionl loss

< 0.2db

Durability

< 0.2db typical change, 1000 time matings

Operating Temp

-30 to +75 degree



5.Product list

  fiber optical fc adaptor

Item Specification Item Specification
Adapter
Singlemdoe(Ceramic Sleeve)
ST (metal body) Adapter
Multimode(Bronze Sleeve)
ST (metal body)
SC/PC SC/PC
SC/PC/duplex SC/PC/duplex
SC/APC SC/APC
SC/APC/duplex SC/APC/duplex
FC/PC FC/PC
FC (D-type metal ) FC (D-type metal )
LC/PC LC/PC
LC/PC/duplex LC/PC/duplex
LC/APC LC/APC
LC/APC/duplex LC/APC/duplex
DIN/PC/APC DIN/PC/APC


MTRJ plastic MTRJ plastic
Hybrid Adaptor
Singlemdoe(Ceramic Sleeve)
FC-SC Hybrid Adaptor
Multimode(Bronze Sleeve)
FC-SC
FC-ST FC-ST
SC-ST SC-ST
DIN-SC DIN-SC
DIN-ST DIN-ST
DIN-FC DIN-FC



LC UPC APC Duplex singlemode Fiber optic adaptorLC UPC APC Duplex singlemode Fiber optic adaptor
