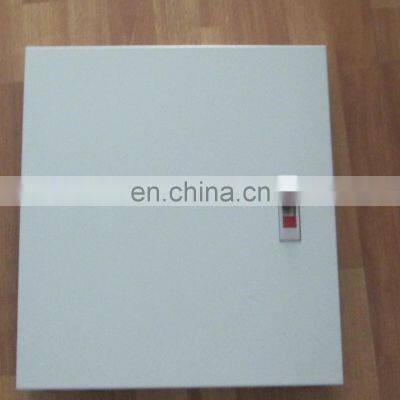

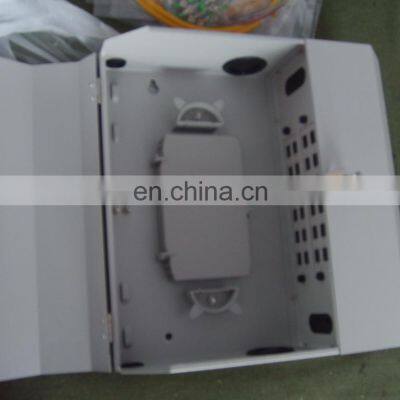

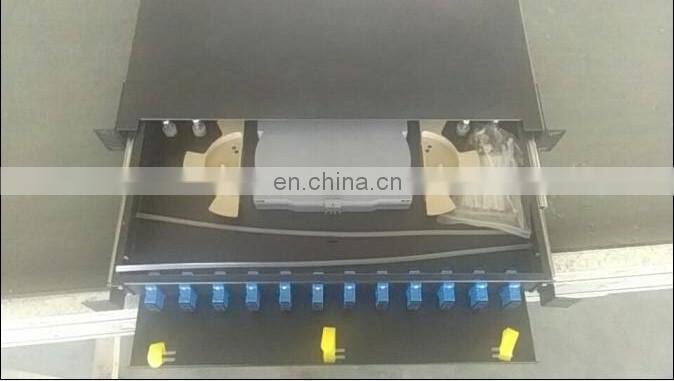

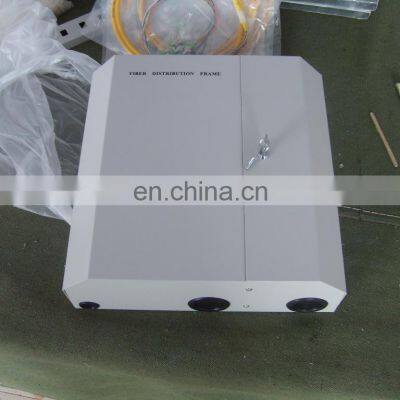

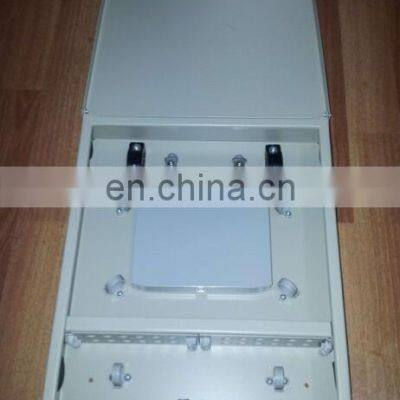

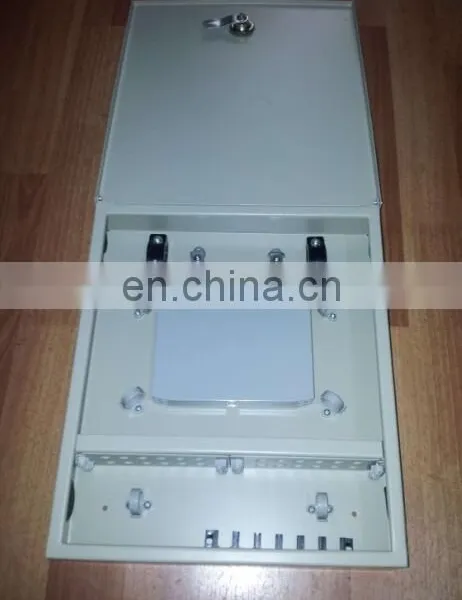

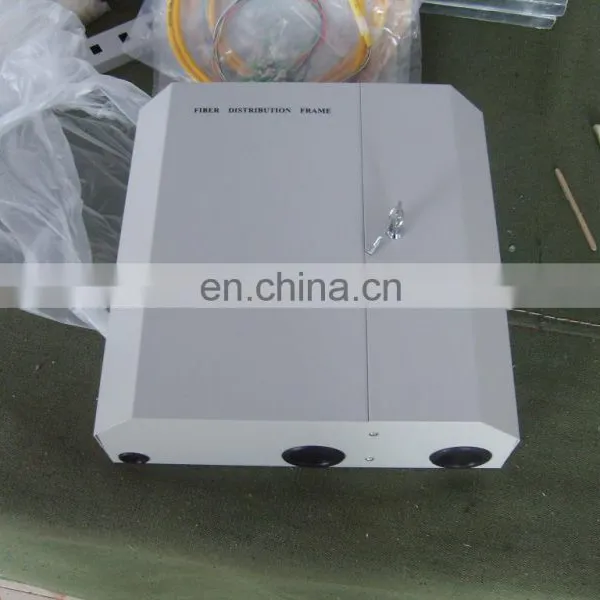

12 or 24 or 72 port fiber optic distribution box rack mount or wall mount fiber patch panel
APPLICATION:
The product can be used on the terminal of the optical cables,different types and structures,the diameter of which are within 20mm tray.
FEATURE:
1. All property indexes are in accordance with national YD/T814-1996 standard
2. The body make use of cold rolling steel,and the surface use the technique of dim plastic.strong adhesive force,artistic and durable.
3. Distinctive design of 2 cable enrance
4. Cable entrance are sealed with oil resistance NBR to increase the flexibility.user can choose to prick the entrance.
5. Overlapping fiber splice tray and separate insulation earthing unit make the disposition of the cores ,expanding the capacity and cable-earthen flexible,convinient and safe.
6. SC/ST/FC/LC ports is available.
SPECIFICATIONS:
1. External size 480*300*1U, 2U, 3U
2. Winding radius ≥40mm
3. Fiber capacity from 12 cores to 96 cores
4. installing: rack mounted
5. Working temperature -25°C~+45°C
6. Atmosphere pressure 70~106Kpa
7. Insulated Resistance 2×10MΩ/500V(DC)
8. Weight: 4.5 kg/pcs
Options:
Patch panels
1.1RU, 2RU, 3RU, 4RU,1RUHD, 2RUHD, 3RUHD, 4RUHD (HD=high density)
2.Black or White colour
Adapter plate
1.3x13, 3x8.6, 4x20 (cm) or customize design
2.Blank, 6 port, 8 port, 12 port, 3 port duplex, 6 port duplex
3.SC, LC, FC, ST, MTRJ, MPO, etc
4.Horizontal, vertical or oblique
5.Please contact us for more detail adapter plate
Accessories
Patch panels can be loaded with adapters, splice cassettes and pigtails
Order Information
|
Fiber capacity |
ODU type |
Adaptor type |
Pigtails |
|
A 12 ports |
1. 19" fixed type |
A. FC |
1.with pigtails |
|
B 24 ports |
2. 19" sliding type |
B. SC |
2.without pigtails |
|
C 48 ports |
3. 19" rolling type |
C. LC |
3.with PLCS |
|
D 72 ports |
|
D. Others |
|
|
E 96 ports |
|
|
|
Rollball International Co.,Ltd, specialized in providing high performance fiber optic communication products and accessories for telecommunication, broadcast, CATV and network industry worldwide. With more than 10 years of industry experience, Rollball brand products have covered all areas of fiber optic transmission, International sales steadily, the products are exported to more than 200 countries and regions
- Quality system of ISO900,CE,FCC,ROHS registration
- Reasonable prices & No MOQ
- Flexible payment methods
- Prompt delivery and remarkable services
- Rich experience of OEM & ODM co-operation
- Accept orders according to customer's demand
Mob / Whatsapp / Wechat: +86 15971526204
Skype: sales013.rollball
We sincerely invite all interested buyers to visit our company and contact us directly for further information, we will reply you as soon as possible!!!
