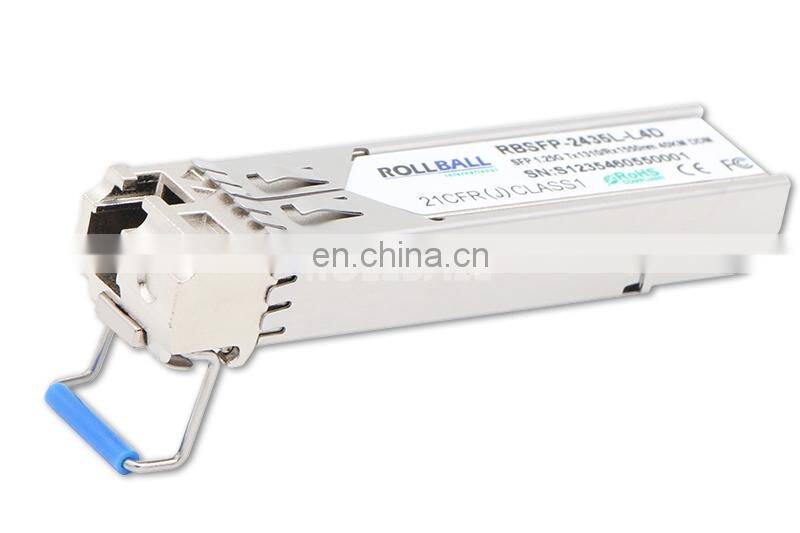

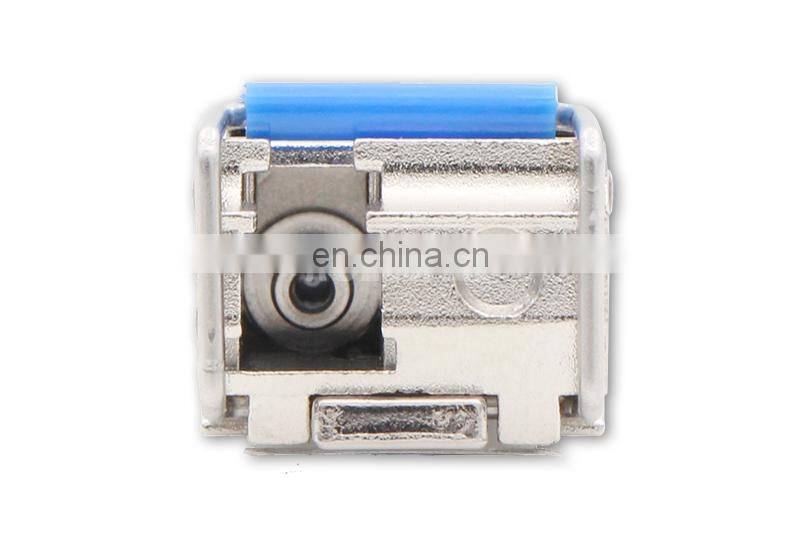

1000BASE-BX BIDI SFP 1310nm-TX/1550nm-RX 40km DOM LC SMF Module Gigabit 1.25Gbs Transceiver

Description

Ø The SFP-BIDI transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and 40km transmission distance with SMF.

Ø The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

Ø The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.

Main Features

• BIDI SFP
• Dual data-rate of 1.25Gbps/1.063Gbps operation Tx1550nm-Rx1310nm
• Compliant with SFP MSA and SFF-8472 with simplex LC receptacle
• Digital Diagnostic Monitoring:
• Internal Calibrationor External Calibration
• Compatible with SONET OC-24-LR-1
• Compatible with RoHS
• +3.3V single power supply
• Operating case temperature: Standard : 0 to +70°C

 Applications

 Gigabit Ethernet

 Fiber Channel

 Switch to Switch interface

 Switched backplane applications

 Router/Server interface

 Other optical transmission systems
