Home > Products > Fiber Transceiver Module > RoHS Compliant 10Gb/s SFP+ DWDM 100Ghz 80km Optical Transceiver

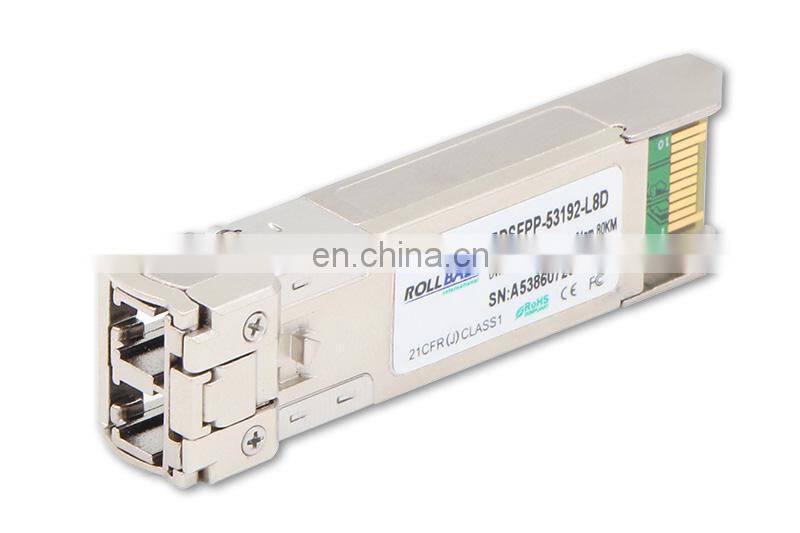

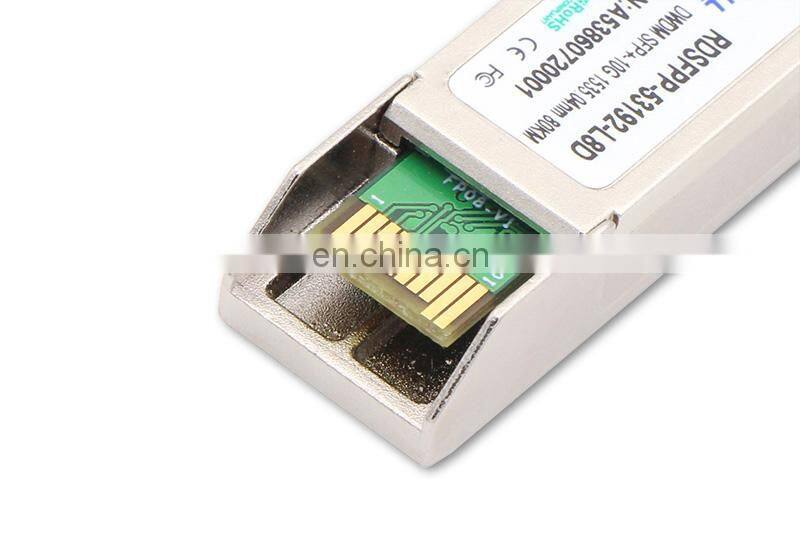

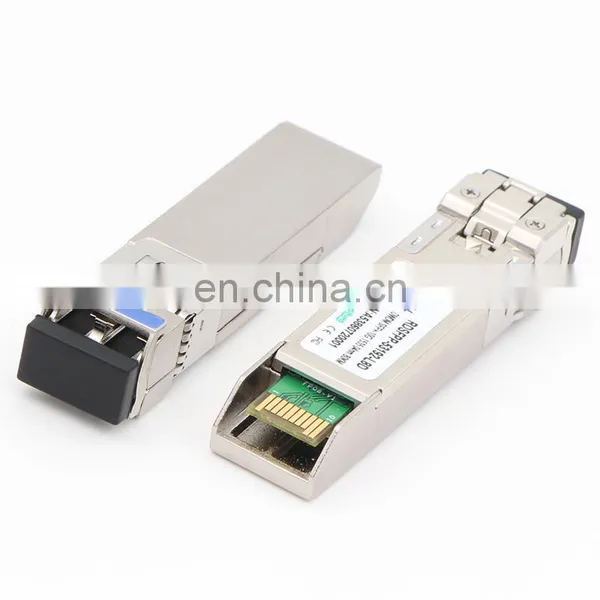

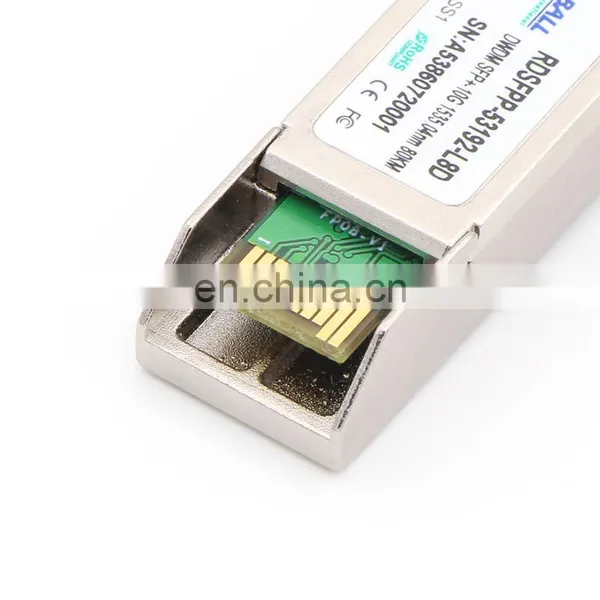

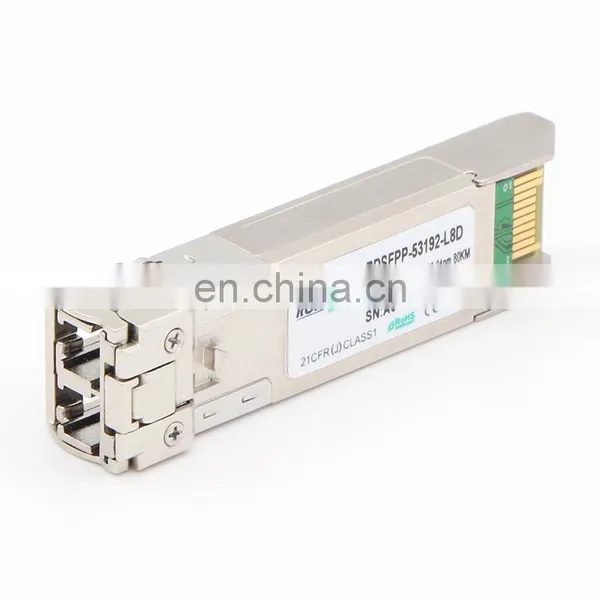

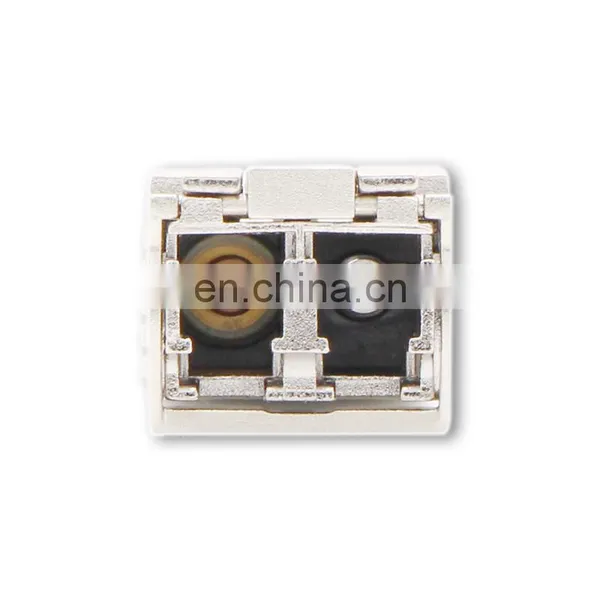

RoHS Compliant 10Gb/s SFP+ DWDM 100Ghz 80km Optical Transceiver
- 1000 per Month
- T/T Credit Card
- 10g dwdm xfp 80km 15xx.xxnm
- SFP+ SR TRx850nm 300m sfp+ module
- 10G SFP+ SR MMF 300M 850nm LC DOM optical module
- Generic compatible 10GB SFP X2 XENPAK SR 300m 850nm VCSEL 10g Xenpak modules
- 10G BiDi XFP modules 80km XFP MSA package with single LC connector
- 10GBASE-LR SFP+ 1310nm 10km DOM LC SMF Module 10Gbs Transceiver
Product Description
10Gb/s DWDM SFP+ 80km dual LC DOM Transceiver Modules
Product details
- This SFP+ZR DWDM transceiver is designed to transmit and receive optical data over single mode optical fiber for link length 80km.
- The transceiver consists of two sections: The transmitter section incorporates a colded EML laser. And the receiver section consists of a APD photodiode integrated with a TIA. All modules satisfy class I laser safety requirements. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.
Features
- Compliant with SFF-8431,SFF-8432 and IEE802.3ae
- Cooled EML transmitter and PIN receiver
- Suitable for use in 100GHz channel spacing DWDM systems
- Hot pluggable
- link length up to 80km
- 10GBASE-ER, and 2G/4G/ 8G/10G Fiber Channel applications.
- Low power consumption
- With DDM / without DDM optional; default with DDM;
- Operating Case Temperature
Standard: 0°C ~+70°C
Industrial:-40°C~+85°C
Applications
- 10GBASE-ER
- 10G Fiber Channel
Product Mode
P/N | Parameters |
RDSFPP-XX192-L4D | DWDM SFP+-10G 40KM; DDM; CH17-CH61 optional |
RDSFPP-XX192-L8D | DWDM SFP+-10G 80KM; DDM; CH17-CH61 optional |
DWDM C-band λc Wavelength Guide
ITU Channel Product Code | Frequency(THz) | Wavelength | ITU Channel Product Code | Frequency(THz) | Wavelength |
17 | 191.7 | 1563.86 | 40 | 194.0 | 1545.32 |
18 | 191.8 | 1563.05 | 41 | 194.1 | 1544.53 |
19 | 191.9 | 1562.23 | 42 | 194.2 | 1543.73 |
20 | 192.0 | 1561.42 | 43 | 194.3 | 1542.94 |
21 | 192.1 | 1560.61 | 44 | 194.4 | 1542.14 |
22 | 192.2 | 1559.79 | 45 | 194.5 | 1541.35 |
23 | 192.3 | 1558.98 | 46 | 194.6 | 1540.56 |
24 | 192.4 | 1558.17 | 47 | 194.7 | 1539.77 |
25 | 192.5 | 1557.36 | 48 | 194.8 | 1538.98 |
26 | 192.6 | 1556.55 | 49 | 194.9 | 1538.19 |
27 | 192.7 | 1555.75 | 50 | 195.0 | 1537.40 |
28 | 192.8 | 1554.94 | 51 | 195.1 | 1536.61 |
29 | 192.9 | 1554.13 | 52 | 195.2 | 1535.82 |
30 | 193.0 | 1553.33 | 53 | 195.3 | 1535.04 |
31 | 193.1 | 1552.52 | 54 | 195.4 | 1534.25 |
32 | 193.2 | 1551.72 | 55 | 195.5 | 1533.47 |
33 | 193.3 | 1550.92 | 56 | 195.6 | 1532.68 |
34 | 193.4 | 1550.12 | 57 | 195.7 | 1531.90 |
35 | 193.5 | 1549.32 | 58 | 195.8 | 1531.12 |
36 | 193.6 | 1548.51 | 59 | 195.9 | 1530.33 |
37 | 193.7 | 1547.72 | 60 | 196.0 | 1529.55 |
38 | 193.8 | 1546.92 | 61 | 196.1 | 1528.77 |
39 | 193.9 | 1546.12 |
|
|
|
5. Part of 10G Modules Product list
Part Number | Data Rate | Wavelenth | Distance | Package | Temp. | Source |
XFP (10G) | ||||||
RXFP-85192-SRD | 10G | 850 | 300M | XFP | 0~70 | VSCEL+PIN |
RXFP-31192-LRD | 10G | 1310 | 10KM | XFP | 0~70 | EML+PIN |
RXFP-55192-ERD | 10G | 1550 | 40KM | XFP | 0~70 | EML+PIN |
RXFP-55192-ZRD | 10G | 1550 | 80KM | XFP | 0~70 | EML+APD |
SFP+ (10G) | ||||||
RSFPP-85192-SRD | 10G | 850 | 300M | SFP+ | 0~70 | VSCEL+PIN |
RSFPP-31192-LRD | 10G | 1310 | 10KM | SFP+ | 0~70 | DFB+PIN |
RSFPP-55192-ERD | 10G | 1550 | 40KM | SFP+ | 0~70 | EML+PIN |
DWDM XFP (10G) with DDMI, XX is C-Band and L-Band ITU, XX=17, 18, 19…, which 17=1563.86nm, 18=1563.05nm… | ||||||
RDXFP-XX192-40D | 10G | XXXX.XX | 40KM | DWDM XFP | 0~70 | DFB+PIN |
RDXFP-XX192-80D | 10G | XXXX.XX | 80KM | DWDM XFP | 0~70 | DFB+PIN |
CWDM XFP(10G) with DDMI, XX=27, 29, 31…61, which 27=1270nm, 29=1290nm, and 61=1610nm | ||||||
RCXFP-XX192-10D | 10G | (1270-1330nm) | 10KM | CWDM XFP | 0~70 | DFB+PIN |
RCXFP-XX192-40D | 10G | (1470-1610nm) | 40KM | CWDM XFP | 0~70 | EML+PIN |
CWDM SFP+(10G) with DDMI, XX=27, 29, 31…61, which 27=1270nm, 29=1290nm, and 61=1610nm | ||||||
RCSFPP-XX192-10D | 10G | (1270-1330nm) | 10KM | CWDM SFP+ | 0~70 | DFB+PIN |
RCSFPP-XX192-40D | 10G | (1270-1330nm) | 40KM | CWDM SFP+ | 0~70 | DFB+PIN |
Payment & Shippment
1.Payment
2.Shipment:by Sea,by Air,by Express:DHL/UPS/Fedex/EMS/TNT etc
.
Why Always Rollball?
Rollball is always at your services with our fiber optical products. We have more than 100 different models for your choices, you are sure to stand out with Rollball advantage: Absolutely no hidden costs and excellent products. You may check the clients feedback from all over the world. We guarantee what we have showed is 100% genuine and what else you are shooting for ?? .
