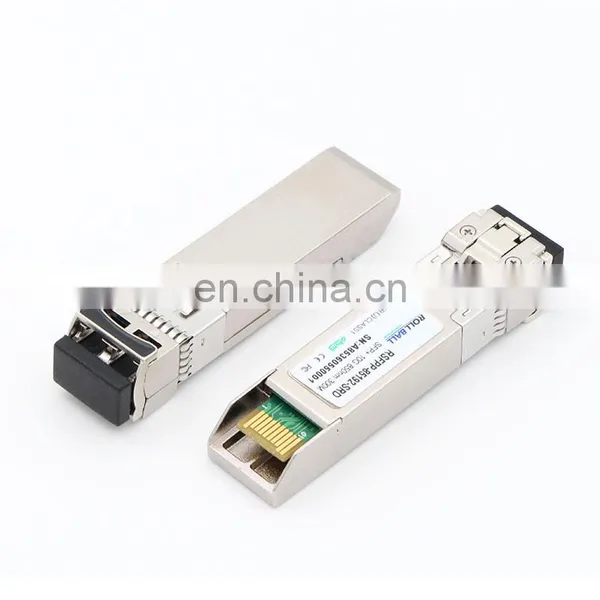

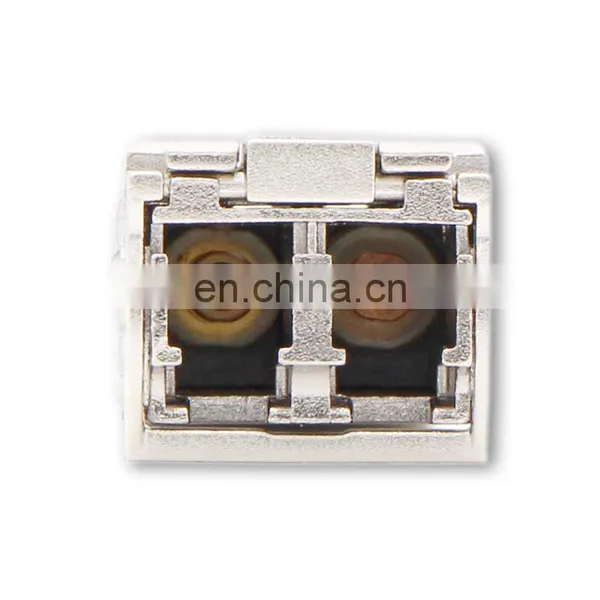

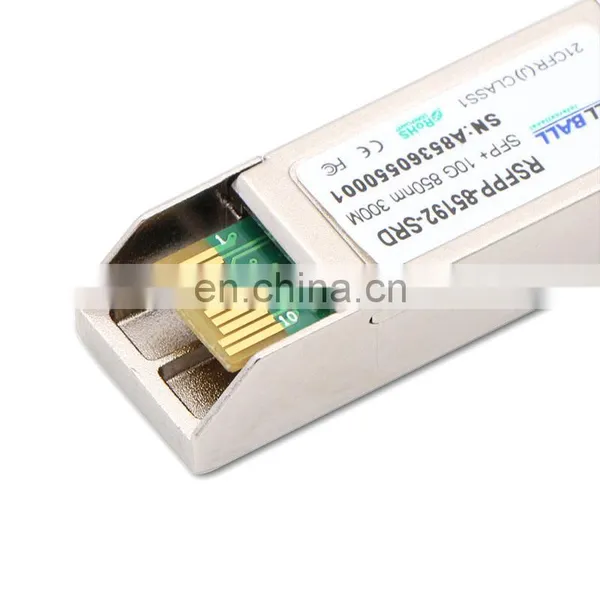

10G SFP+ SR MMF 300M 850nm LC DOM optical module

10G SFP+ transceiver 10G SFP+ SR MMF 300M 850nm optical module

Features

• Compliant to SFP+ Electrical MSA SFF-8431
• Compliant to SFP+ Mechanical MSA SFF-8432
• Multi rate of up to 11.3Gb/s
• 10G Ethernet compliance
• 2G/4G/8G Fibre Channel compliance
• Transmission distance up to 80km (SM fiber)
• Low power consumption: 0.85W (Typ.)
• Operating Case Temperature

           Standard: 0°C ~+70°C

            Industrial:-40°C~+85°C

• Laser Class 1 IEC / CDRH compliant
• RoHS 5/6 compliant
• With DDM / without DDM optional; default with DDM;

Applications

• 10G Ethernet
• 10G Fiber Channel
• Other optical links

Description

• 10G SFP + series optical module is a new generation of 10 Gigabit optical module, which in accordance with the ANSI T11 protocol, to meet the 8.5G Fiber Channel and Ethernet 10G applications. SFP’s size size is reduced by about 30%+ than XFP optical module , and just like ordinary 1-4G SFP optical module. SFP + simplifies the design of the 10G optical module by keeping the basic electro-optical and photoelectric conversion functions and reducing the signal control functions such as SerDes, CDR, EDC, and MAC in the original XFP design, thus the power consumption is also lower. SFP + has the advantages of high density, low power consumption, lower system construction cost and so on. The products are widely used in the field of 10GbE optical fiber data communication and are the mainstream products of 10G modules.
• Rollball provides a full range of 10G SFP + optical modules: SFP + 10GBASE-SR 300m (multimode OM3 fiber); SFP + 10GBASE-LR 10-20KM(SM fiber); SFP + 10GBASE-ER single-mode fiber 40 km; SFP + 10GBASE-ZR single-mode fiber 80 km; 18-band CWDM SFP +; 40-band DWDM SFP +; BIDI SFP + …

Compatible brand

 Related Product number

10G Product list



Why Is Rollball ?

1. Quality system of ISO900,CE,FCC,ROHS registration

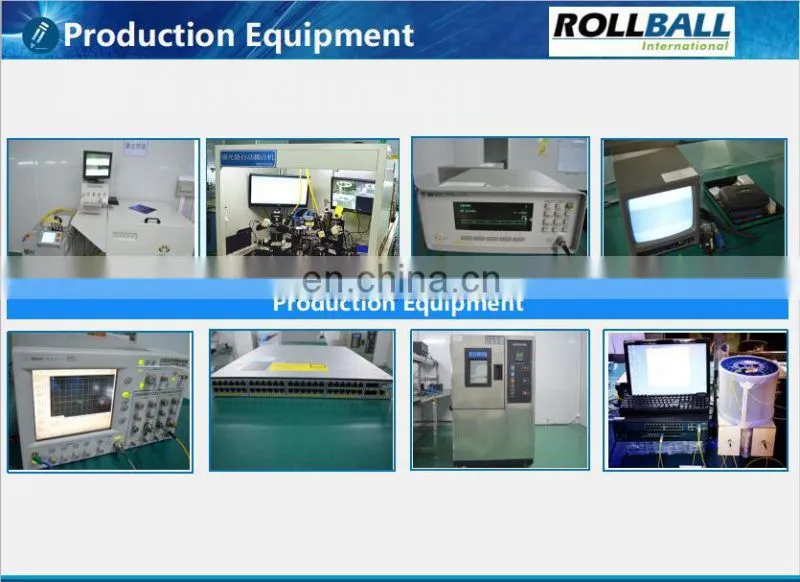

2. Manufacture system
3. R&D system
4. Purchasing system
5. Prompt delivery and remarkable services
6. Reasonable prices
7. Accept orders according to customer's demands
8. Rich experience of OEM & ODM co-operation
9. Shipment,payment and delivery

We sincerely invite all interested buyers to visit our company and contact us directly for further information, we will reply you within 12hours !
