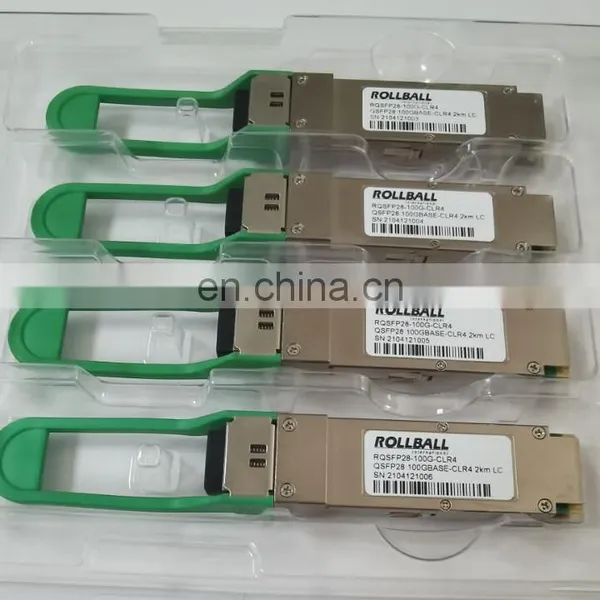

100G QSFP28 CLR4 CWDM4 1271-1311nm 2km Optical Transceiver
1. PRODUCT FEATURES
- Four-channel full-duplex transceiver modules
- Transmission data rate up to 26Gbit/s per channel
- Up to 2km transmission of single mode fiber
- Low power consumption <3.5W
- Operating case temperature 0℃ to +70℃
- 3.3V power supply voltage
- RoHS 6 compliant
- Hot Pluggable QSFP form factor
- LC connector receptacle
- Built-in digital diagnostic function
2.Applications
- 100G Ethernet
- Proprietary High Speed Interconnections
- Datacenter
- 100G CWDM4 application with FEC
3. Description
|
Part Number |
Description |
|
100G QSFP28 4*26G 2km, 0~70℃, with DDM |
|
Parameter |
Symbol |
Min |
Typ |
Max |
Unit |
Notes |
||||
|
Transmitter |
||||||||||
|
Signaling rate per lane |
25.78125 ± 100 ppm |
Gb/s |
|
|||||||
|
Differential input return loss (min) |
RLd(f) |
9.5 – 0.37f, 0.01≤f<8 4.75 – 7.4log10(f/14), 8 ≤f<19
|
dB |
|
||||||
|
Differential to common mode input return loss (min)
|
RLdc(f) |
22-20(f/25.78), 0.01≤f<12.89 15-6(f/25.78), 12.89≤f<19
|
dB |
|
||||||
|
Tm |
|
|
10 |
% |
|
|||||
|
Applied pk-pk sinusoidal jitter |
Ppj |
Per IEEE 802.3bm |
|
|
||||||
|
Eye height |
Eh |
|
95 |
|
mV |
|
||||
|
DC common mode voltage |
DCv |
-350 |
|
2850 |
mV |
|
||||
|
Receiver |
||||||||||
|
Signaling rate per lane |
DRPL |
25.78125 ± 100 ppm |
Gb/s |
|
||||||
|
Differential data output swing |
Vout,pp |
400 |
|
800 |
mV |
|
||||
|
Vertical eye closure |
|
|
|
5.5 |
dB |
|
||||
|
Differential output return loss (min) |
RLd(f) |
9.5 – 0.37f, 0.01≤f<8 4.75 – 7.4log10(f/14), 8 ≤f<19
|
dB |
|
||||||
|
Common to differential mode conver- sion return loss (min)
|
RLdc(f) |
22-20(f/25.78), 0.01≤f<12.89 15-6(f/25.78), 12.89≤f<19
|
dB |
|
||||||
|
Differential termination mismatch |
Tm |
|
|
10 |
% |
|
||||
|
Transition time, 20% to 80% |
Tr,Tf |
12 |
|
|
ps |
|||||

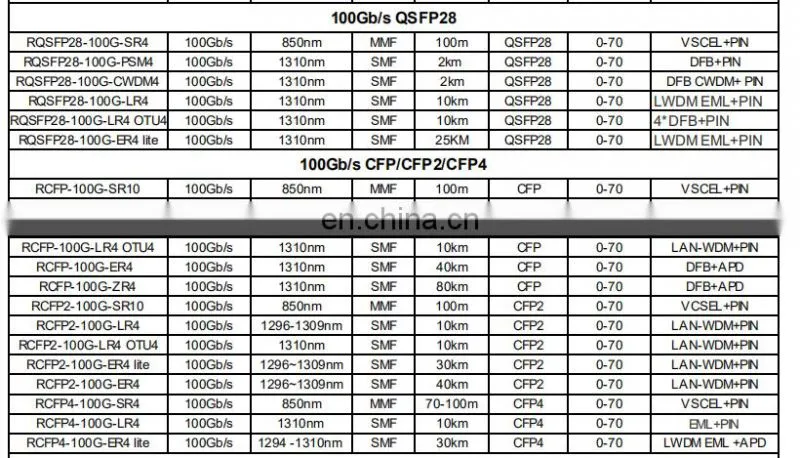

Related 100G Optical transceivers list
