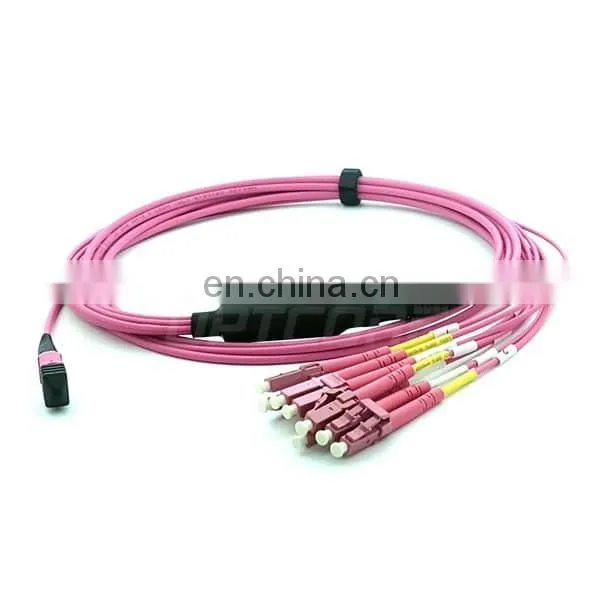

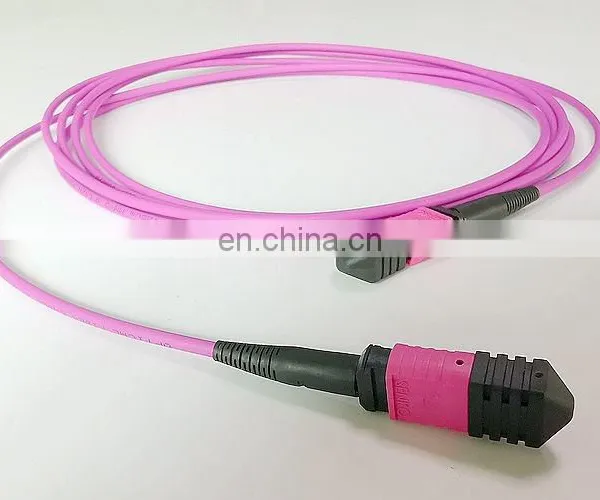

OM4 100G MPO MTP Fiber Optic Patch cord 8/12 fibers
- 1000 per Month
- T/T Credit Card
- 8/12-fiber MTP MPO-LC Om3 Om4 Multi-Mode breakout fiber patch cord
- OEM service pigtail LC PC/UPC/APC SM 9/125 G657A / G652D fiber pigtail-0.9mm PVC/LSZH
- SC/FC/LC/ST/MU/mpo sx/dx fiber optic patchcord
- Patch cord optical fiber products single mode simplex cable with connector SC/FC/LC/ST/MU/DIN/D4/MTRJ/MPO
- Nice price G652D lc-lc fiber 1m fiber optic patch cord
- LC-LC PC/UPC OM3 50/125 Multimode 2.0mm/3.0mm fiber optic patch cord
Product Description
8/12 fiber Om4 Multi-Mode MTP MPO Fiber Optic Patchcord
1.Description
High density MPO/MTP fiber patch cord is a fiber optic cable capped at either end with connectors that allow it to be rapidly and conveniently connected to CATV, an optical switch, or other telecommunication equipment. Having a thick layer of protection, it is used to connect the optical transmitter, receiver, and the terminal box. This is known as "interconnect-style cabling".
2.Feature
1).Low Insertion loss
2).High return loss
3).Good Repeatability
4).Good Interchange
5).Excellent Environmental Adaptability
3.Application
1).Communication rooms
2).FTTH (Fiber to The Home)
3).LAN (Local Area Network)
4).FOS (fiber optic sensor)
5).Fiber Optic Communication System
6).Optical fiber connected and transmitted equipment
7).Defense combat readiness
4.Specification
Type |
Standard,Master |
Style |
LC,SC,ST,FC.MU,DIN,D4,MPO, SC/APC,FC/APC,LC/APC.MU/APC |
Fiber |
Singlemode/Multimode 50/125, 62.5/125 (Multimode) OM2&OM1 50/125, 10G (Multimode) OM3 |
Cable |
Simplex, Duplex Φ3.0mm, Φ2.0mm, Φ0.9mm PVC or LSZH |
Polishing Manner |
UPC,SPC,APC (8°& 6°) |
Insertion Loss |
≤ 0.1dB (For Singlemode Master) ≤ 0.25dB (For Singlemode Standard) ≤ 0.25dB (For Multimode) Tested by JDS RM 3750 |
Return Loss (Singlemode) |
UPC ≥ 50dB SPC ≥ 55dB APC ≥ 60dB (typ.65dB) Tested by JDS RM3750 |
Repeatability |
±0.1dB |
Operating temperature |
-400C to 850C |
Geometry Requirement ( Singlemode) |
Ferrule Endface Radius 7mm ≤ R ≤ 12mm (For APC) 10mm ≤ R ≤ 25mm (For Standard) Apex Offset ≤ 30 μm (For Master) Apex Offset ≤ 50 μm (For Standard) Undercut -50nm ≤ U ≤ 50nm Tested by DORC ZX-1 |
5.Product list
Boot |
Connector |
Fiber Type |
Cable number |
Ferrule |
Connector |
0.9mm 2.0mm 3.0mm |
LC FC SC ST MU D4 MTRJ MPO DIN
|
9/125um SM 50/125um MM 62.5/125um MM OM3 OM4 |
Simplex Duplex Multi-fiber Ribbon |
PC APC UPC |
1M 2M 3M4M 5M ......... Customized |
Our Strength & Quality Assurance
Payment & Shippment & Delivery
1.Payment
2.Shipment:by Sea,by Air,by Express:DHL/UPS/Fedex/EMS/TNT etc
3.Deliverty: 3-5 days after payment dowm.
