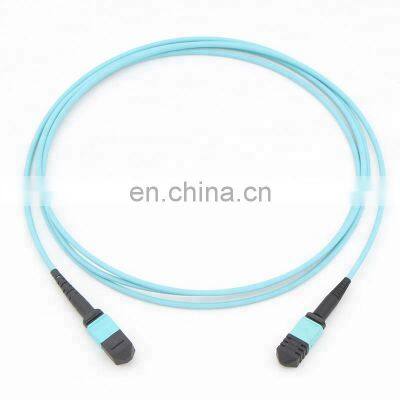

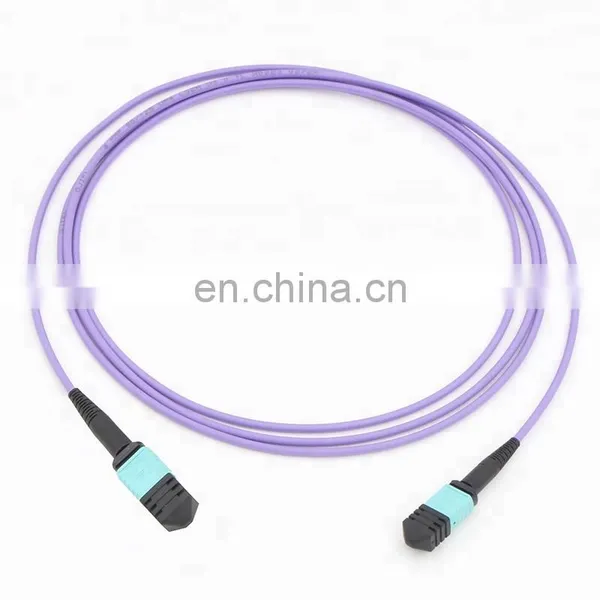

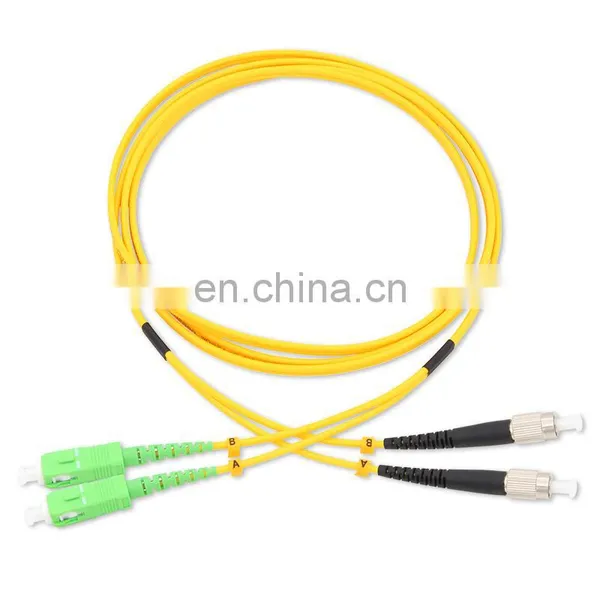

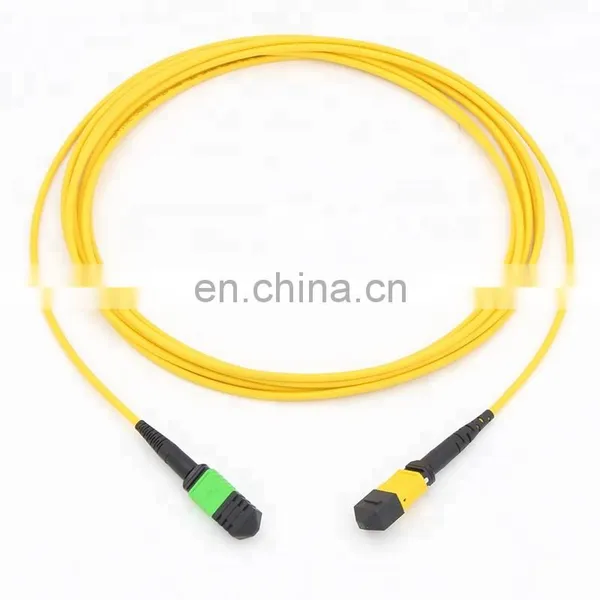

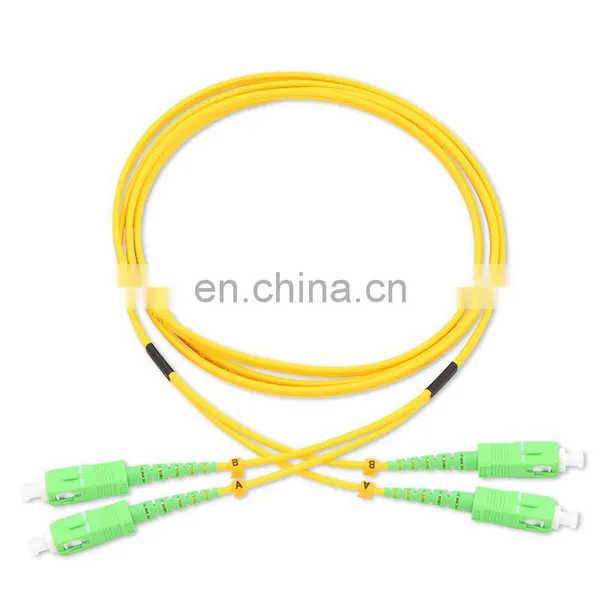

Patch cord optical fiber products single mode simplex cable with connector SC/FC/LC/ST/MU/DIN/D4/MTRJ/MPO
optical fiber products
Application:
1.CATV
2.Active dvice termination
3.Telecommunication networks
4.Metro
5.Local Area Networks(LANs)
6.Data Processing networks
7.Test Equipment
8.Premise installations.
9.Wide Area Networks(WANs)
Feature:
1.Low insertion loss and back reflection loss
2.Good echangeability
3.Good Durability
4.High temperature stability.
5.Standard: Telcordia GR-326-CORE
6.Precise connector
7.Excellent mechanical capability
8.Patch cords accord with bellcord GR-326 ,ISO9001,ROHS
Specification:
Mode |
SM |
MM |
|
Polish |
UPC |
APC |
PC |
Insertion Loss |
Typical ≤0.2dB Maximum ≤0.3dB |
≤0.25dB |
|
Return Loss |
≥50dB |
≥65dB |
≥35dB |
Interchangeability |
≤0.2dB |
||
Repeatability |
≤0.1dB |
||
Durability |
≤0.2dB (1000 times mating) |
||
Tensile Strengh |
> 10kg |
||
Temperature |
≤0.2dB (-40+85 sustain 100 hours) |
||
Humidity |
≤0.2dB (+25+65 93 R.H.100 hours) |
||
Ordering options:
Boot (cable size) |
Boot Color |
Fiber Type |
Cable number |
Ferrule |
Length |
|
0.9mm 2.0mm 3.0mm |
Black Green Red |
9/125um SM 50/125um MM 62.5/125um MM OM3 OM4 |
Simplex Duplex Multi-fiber |
PC APC |
Customized |
- Quality system of ISO900,CE,FCC,ROHS registration
- Manufacture system
- R&D system
- Purchasing system
- Prompt delivery and remarkable services
- Reasonable prices
- Accept orders according to customer's demands
- Rich experience of OEM & ODM co-operation
- Shipment,payment and delivery
We sincerely invite all interested buyers to visit our company and contact us directly for further information, we will reply you as soon as possible!!!
