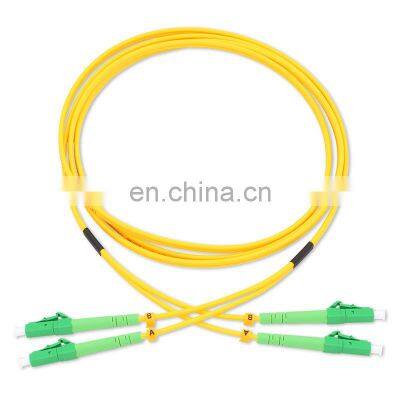

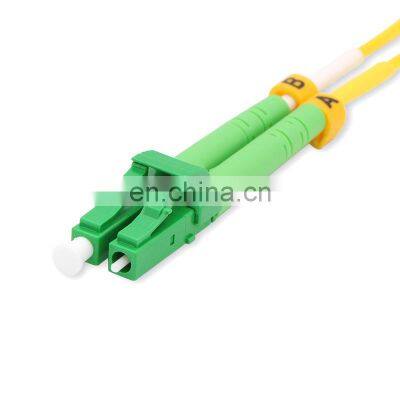

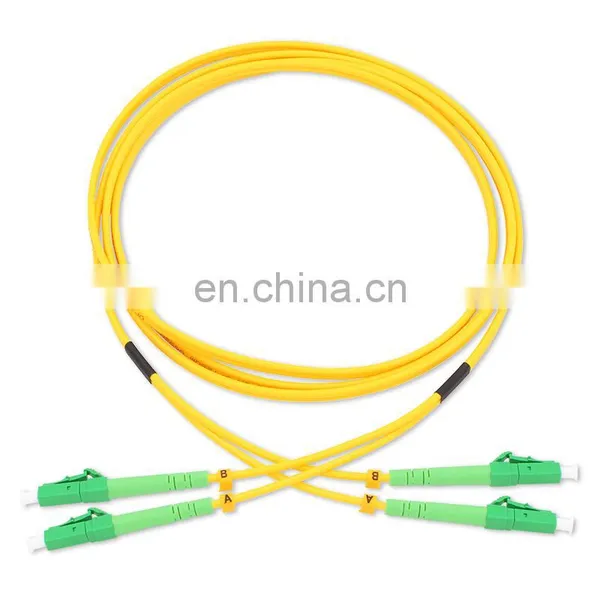

Nice Price G652D Lc-lc Fiber 1m Fiber Optic Patch Cord
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2009
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
LC-LC PC/UPC OM3 50/125 Multimode 2.0mm/3.0mm Fiber Optic Patch CordNegotiableMOQ: 1 -
SC/UPC-SC/APC Singlemode Simplex 9/125 Outdoor Fiber Optic Patch Cord / JumperNegotiableMOQ: 1
-
SMF Duplex LC SC 3Meters Corning Fiber Optic Patch Cords/jumpers/cablesNegotiableMOQ: 1
-
OEM Factory Price Patch Cord/ LC-LC UPC/APC Duplex SM Fiber- Patch-cord for Fttx Termination BoxNegotiableMOQ: 1
-
FC PC/UPC/APC Single-mode 2.0mm 3.0mm Fiber Optic Patch Cord FC-FC Simplex Duplex 2m/3m/5m/10mNegotiableMOQ: 1
Nice price G652D lc-lc fiber 1m fiber optic patch cord
Description
- lc-lc fiber 1m is a fiber optic cable capped at either end with connectors that allow it to be rapidly and conveniently connected to CATV, an optical switch, or other telecommunication equipment.
- Having a thick layer of protection, it is used to connect the optical transmitter, receiver, and the terminal box.
- This is known as "interconnect-style cabling".
Application
- Local Area Networks(LANS)
- Data processing networks
- Instrument
- Premise installations.
Feature
- Low insertion loss and back reflection loss
- Good echangeability
- Good Durability
- High temperature stability.
- Standard: Telcordia GR-326-CORE
Specification
lc sx fiber patch cord
Mode |
SM |
MM |
Polish |
UPC |
PC |
Insertion Loss |
Typical ≤0.2dB Maximum ≤0.3dB |
≤0.25dB |
Return Loss |
≥50dB |
≥35dB |
Interchangeability |
≤0.2dB |
|
Repeatability |
≤0.1dB |
|
Durability |
≤0.2dB (1000 times) |
|
Vibration |
≤0.2dB (550Hz 1.5mm) |
|
Tensile Strength |
> 10kg |
|
Temperature |
≤0.2dB (-40+85 sustain 100 hours) |
|
Humidity |
≤0.2dB (+25+65 93 R.H.100 hours) |
|
Product list
lc sx fiber patch cord
| Item | Connector Description |
| Terminated Connector Singlemode 9/125 | ST/SC/FC |
| LC | |
| MU | |
| MTRJ(female) | |
| MTRJ(male) | |
| DIN | |
| Terminated Connector Multimode (50/125 or 62.5/125) | ST/SC/FC |
| LC | |
| MU | |
| MTRJ(female) | |
| MTRJ(male) | |
| Item | Cable Description |
| Singlemode cable | Simplex SM 0.9mm, 2mm & 3mm PVC |
| Duplex SM 0.9mm, 2mm & 3mm PVC | |
| Simplex SM 0.9mm, 2mm & 3mm LSZH | |
| Duplex SM 0.9mm, 2mm & 3mm LSZH | |
| Multimode Cable (50/125 or 62.5/125) | Simplex MM 0.9mm, 2mm & 3mm PVC |
| Duplex MM 0.9mm, 2mm & 3mm PVC | |
| Simplex MM 0.9mm, 2mm & 3mm LSZH | |
| Duplex MM 0.9mm, 2mm & 3mm LSZH | |
| OM3 Cble (50/125 or 62.5/125) | Simplex MM 0.9mm, 2mm & 3mm PVC |
| Duplex MM 0.9mm, 2mm & 3mm PVC | |
| Simplex MM 0.9mm, 2mm & 3mm LSZH | |
| Duplex MM 0.9mm, 2mm & 3mm LSZH |
