Home > Electrical & Electronics > Telecommunication & Broadcasting > Fiber Optic Equipment > Hot Sale FTTH 3 Ports FTTH Wdm 1310 1490 1550 Fwdm Steel Tube Fwdm

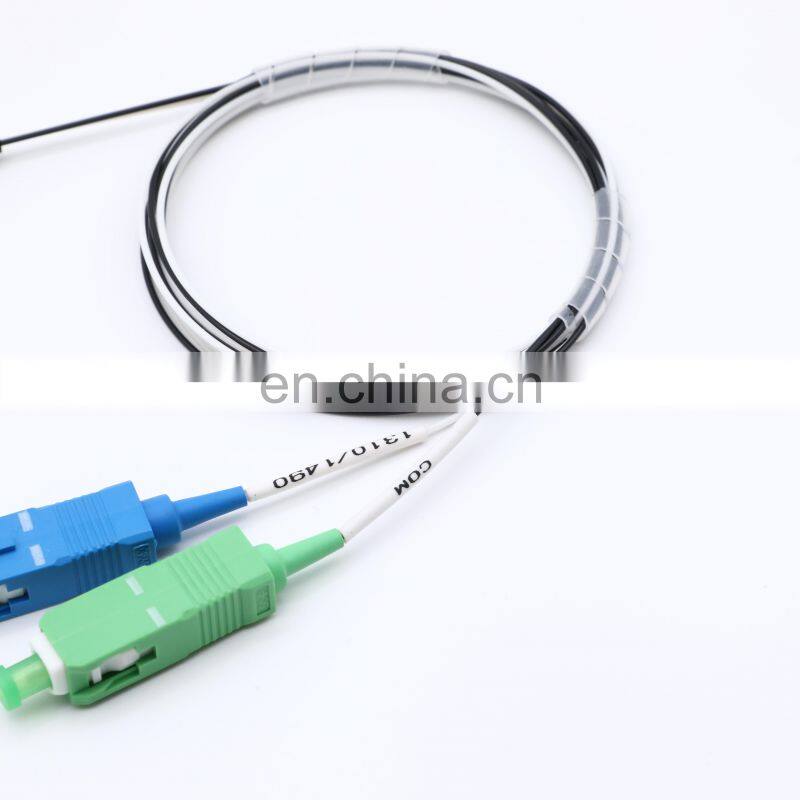

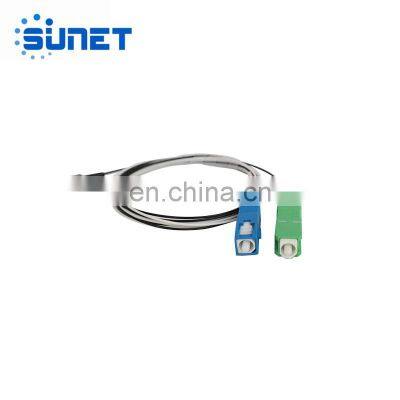

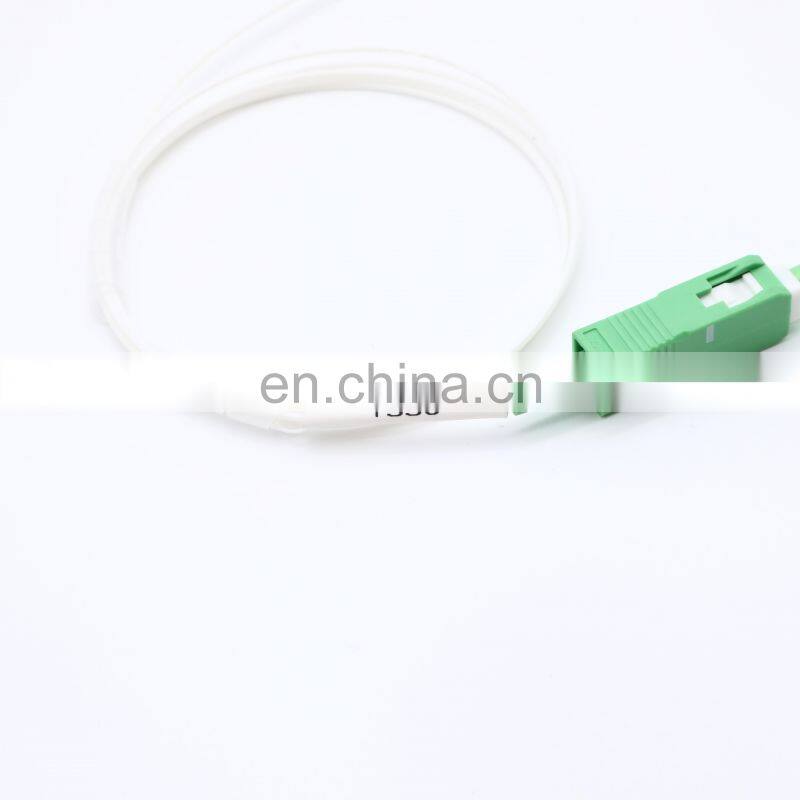

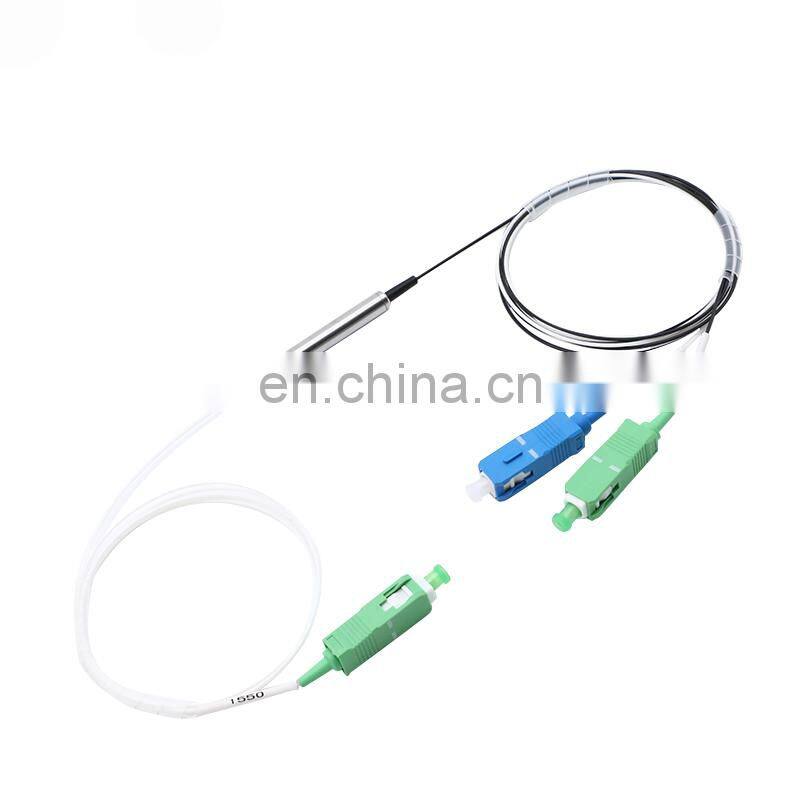

Hot Sale FTTH 3 Ports FTTH Wdm 1310 1490 1550 Fwdm Steel Tube Fwdm
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
1993
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Catv 1310nm/1490nm/1550nm Mini FTTH Fiber Optic Receiver WDM FWDMNegotiableMOQ: 1 -
FTTH Mini Type Steel Tube Type 1 in 2 Out Sc Connector 1310 1490 1550 Nm Fiber Optic Splitter Filter Fwdm WdmNegotiableMOQ: 1
-
FTTH Communication Wavelength Division Multiplexer Steel Tube 0.9mm LC Connector Filter Fwdm CWDM WdmNegotiableMOQ: 1
-
LC /Sc Connector 4CH 6CH 8CH Lgx Box Type CWDMNegotiableMOQ: 1
-
CWDM DWDM Mux Demux Module Insertion Box Type CWDM MultiplexerNegotiableMOQ: 1
|
Parameter |
Unit |
Values |
|
|
Transmission Wavelength Range |
nm |
1530~1600 (or 1270~1350) |
|
|
Reflect Wavelength Range |
nm |
1270~1350 (or 1530~1600) |
|
|
Max. Insertion Loss |
Transmission |
dB |
0.6 |
|
Reflect |
dB |
0.4 |
|
|
Min. Isolation |
Transmission |
dB |
30 |
|
Reflect |
dB |
12 |
|
|
Max. PDL |
dB |
0.1 |
|
|
Min. Channel Flatness |
dB |
0.3 |
|
|
Min. Return Loss |
dB |
50 |
|
|
Max. Power Handling(CW) |
W |
0.3, 0.7, 1, 2, 3 |
|
|
Max. Tensile Load(N) |
N |
≤5 |
|
|
Fiber Type |
- |
SMF-28e |
|
|
Operating Temperature |
℃ |
-5 to +70 |
|
|
Storage Temperature |
℃ |
-40 to +85 |
|
|
Package Dimensions |
mm |
Ø5.5 x L35 |
|
