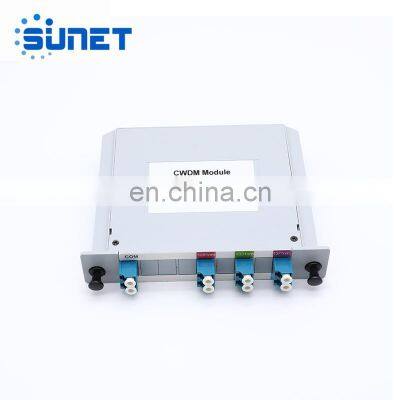

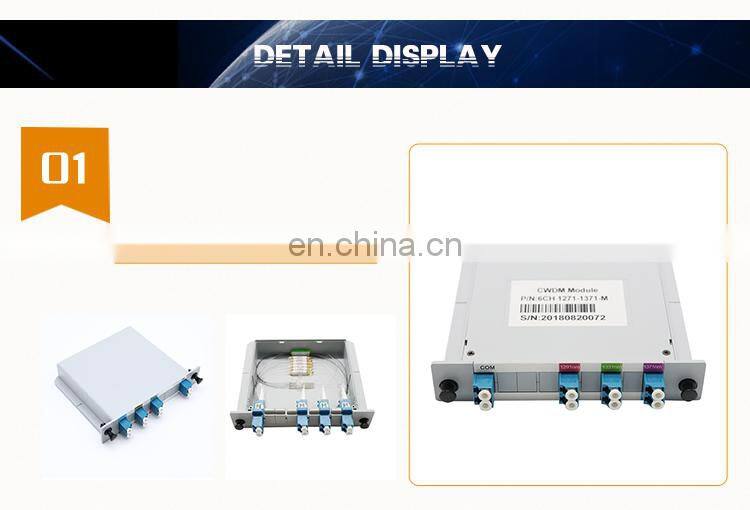

LC /Sc Connector 4CH 6CH 8CH Lgx Box Type CWDM
CWDM Mux/Demux Module are based on thin film filter technology. CWDM technology provides the flexibility to increase capacity of existing fiber infrastructurby enabling multiple channels (wavelengths) over the same fiber cabling. Eacchannel carries data independently from each other, allowing network designers to transport different data rates and protocols for different customers or applications. CWDM can solve the shortage of fiber and transparent transmission of business, and reduce the cost of network building. With low-cost low power consumption and smalcompact, it is widely used in metro aggregation and access layer to do transmission on a short time. SUNET CWDM Mux/Demux products provide up to 16-channel or even 18-channel Multiplexing on a single fiber. Standard CWDM Mux/Demux package type include: ABS box package, LGX package and 19" 1U rack-mount.
Feature
1.Wide pass band
2.Low Insertion Loss
3.High Stability and reliability
4.High Channel Isolation
5.Epoxy-free on Optical Path
Application
1.WDM Network
2.Line Monitoring
3.Access Network
4.Cellular Application
5.Fiber Optical amplifier
Specification
|
Parameters |
Unit |
Value |
|||
|
Channels Number |
- |
2 |
4 |
8 |
16 |
|
Channel Space |
nm |
20 |
|||
|
Central Wavelength |
nm |
1271-1611 |
|||
|
Operating Wavelength |
nm |
1260-1460 or 1460-1620 or1260-1620 |
|||
|
Pass band |
nm |
λITU±6.5 |
|||
|
Pass band Flatness |
dB |
≤0.5 |
|||
|
Insertion Loss (Typ.) |
dB |
0.8 |
1.3 |
2.4 |
4.6 |
|
Insertion Loss (Max.) |
dB |
0.9 |
1.5 |
2.8 |
5.0 |
|
Adjacent Channel Isolation |
dB |
≥30 |
|||
|
Non-adjacent Channel Isolation |
dB |
≥40 |
|||
|
Polarization Mode Dispersion |
ps |
≤0.1 |
≤0.1 |
≤0.15 |
≤0.15 |
|
Polarization Dependent Loss |
dB |
≤0.1 |
≤0.15 |
≤0.2 |
≤0.25 |
|
Return Loss |
dB |
≥50 |
|||
|
Directivity |
dB |
≥50 |
|||
|
Insertion Loss Temperature Sensitivity |
dB/ºC |
0.005 |
0.005 |
0.007 |
0.007 |
|
Wavelength Temperature Shifting |
nm/ºC |
0.002 |
|||
|
Operation Temperature |
ºC |
-10 - +70 |
|||
|
Storage Temperature |
ºC |
-40 - +85 |
|||
|
Package Dimension |
nm |
ABS box : 100x80x10mm or customized |
|||
Q1: How can i get your catalogue and price list?
A1: Please let us know your email or contactus from website directly for our catalogue and price list
Q2: Can I negotiate the prices?
A2: Yes, we may consider discounts formultiple container load of mixed goods
Q3: How much will the shipping charges be?
A3: It depends on the size of your shipment and the method of shipping. We will offer the charge to you as you requested
Q4: Can I visit you?
A4: Sure, our factory is in Qingdao, China. Please contact us to make an appointment
Q5: What if there is quality problem when we get the goods?
A5: If there is quanlity problem when you un-package the goods, you can take pictures for our reference, our QC department will check the problem and give best solutions to you, Further-more we will also take action to improve the quality in future
Q6. What is your terms of packing?
A6: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent
Q7. What is your terms of payment?
A7: T/T 30% as deposit, and 70% before delivery.We"ll show you the photos of the products and packages before you pay the balance
Q8. What is your terms of delivery?
A8: EXW, FOB, CFR, CIF, DDU
Q9. How about your delivery time?
A9: Generally, it will take 5-7 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order
Q10. Can you produce according to the samples?
A10: Yes, we can produce by your samples or technical drawings
