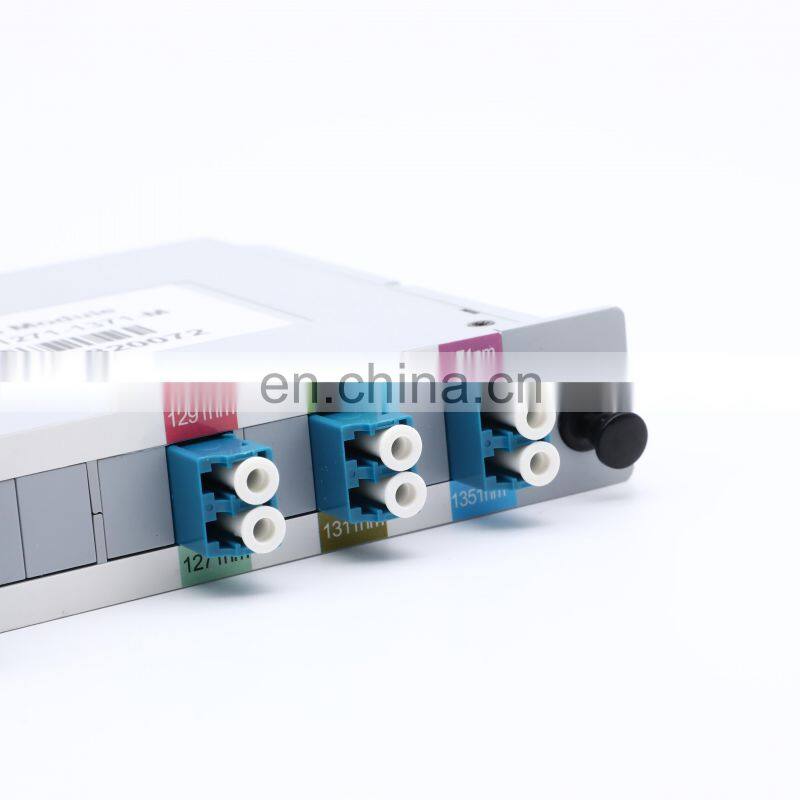

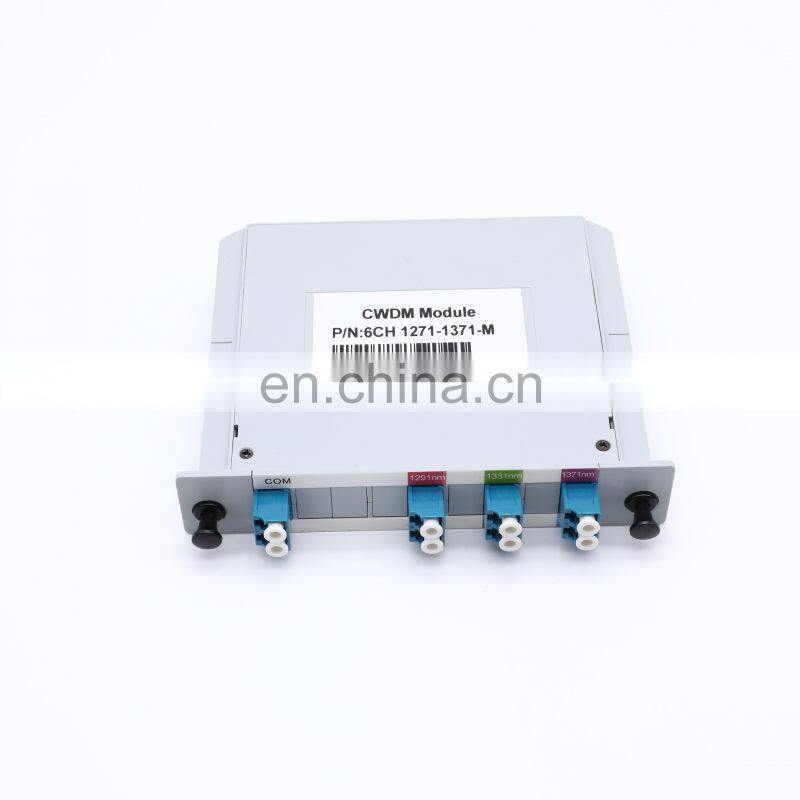

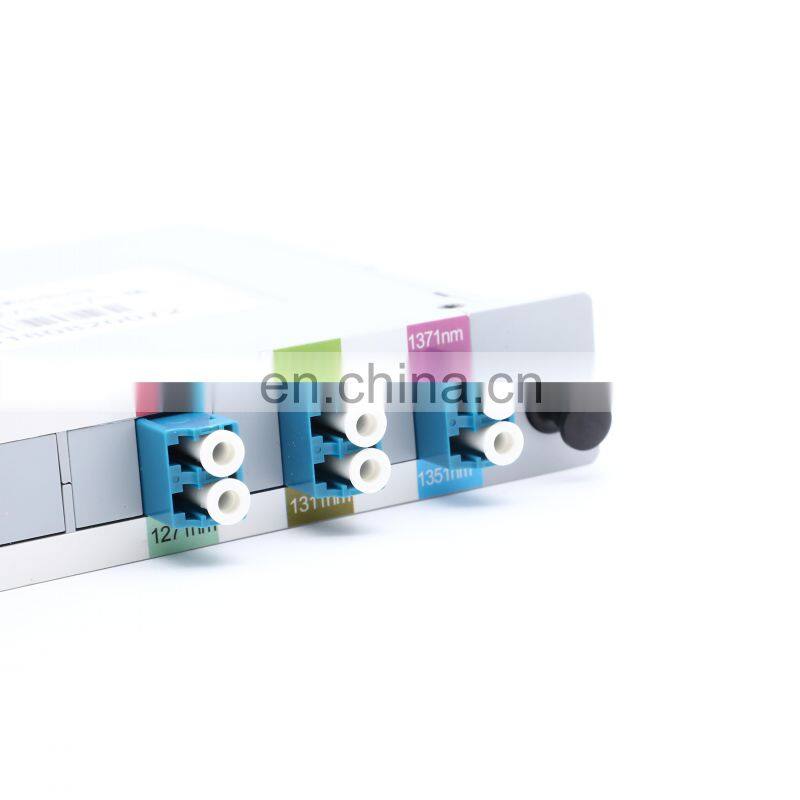

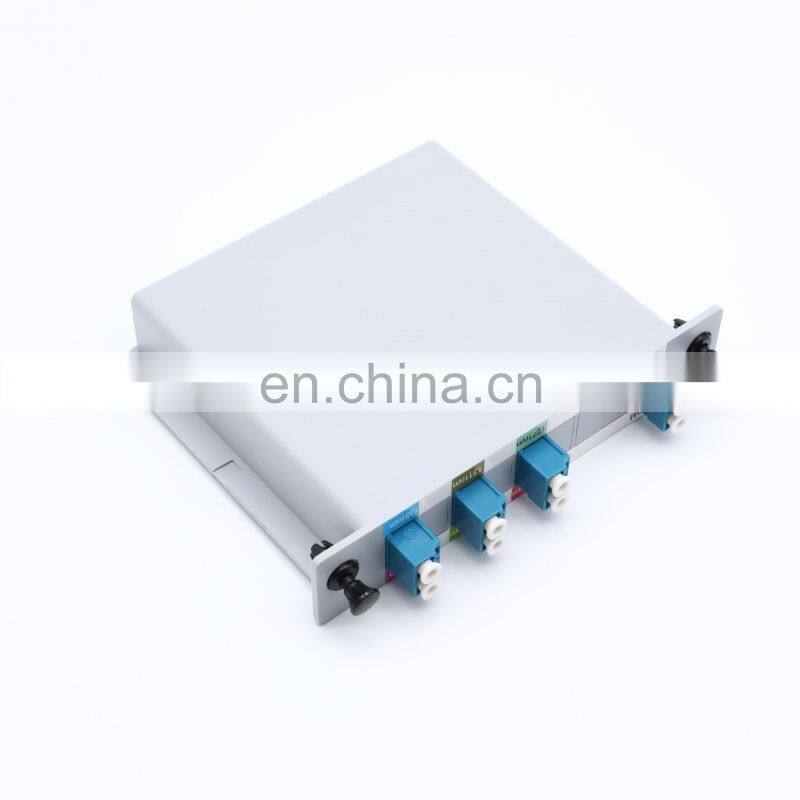

CWDM DWDM Mux Demux Module Insertion Box Type CWDM Multiplexer
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
1993
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
FTTH Fiber Optic Equipment Module 1*2 Sc Filter FWDMNegotiableMOQ: 1 -
Mux Demux 1X2 WDM 3 Channel 1310nm 1490nm 1550nm Filter WdmNegotiableMOQ: 1
-
3 Ports FTTH Wdm 1310 1490 1550 Fwdm Steel Tube FwdmNegotiableMOQ: 1
-
Single Fiber 1270-1410nm 8CH Mux/Demux CWDM 100GHz 8 Channels Lgx Box CWDMNegotiableMOQ: 1
-
Hot Sale FTTH 3 Ports FTTH Wdm 1310 1490 1550 Fwdm Steel Tube FwdmNegotiableMOQ: 1
|
Parameters |
Unit |
Value |
|||
|
Channels Number |
- |
2 |
4 |
8 |
16 |
|
Channel Space |
nm |
20 |
|||
|
Central Wavelength |
nm |
1271-1611 |
|||
|
Operating Wavelength |
nm |
1260-1460 or 1460-1620 or1260-1620 |
|||
|
Pass band |
nm |
λITU±6.5 |
|||
|
Pass band Flatness |
dB |
≤0.5 |
|||
|
Insertion Loss (Typ.) |
dB |
0.8 |
1.3 |
2.4 |
4.6 |
|
Insertion Loss (Max.) |
dB |
0.9 |
1.5 |
2.8 |
5.0 |
|
Adjacent Channel Isolation |
dB |
≥30 |
|||
|
Non-adjacent Channel Isolation |
dB |
≥40 |
|||
|
Polarization Mode Dispersion |
ps |
≤0.1 |
≤0.1 |
≤0.15 |
≤0.15 |
|
Polarization Dependent Loss |
dB |
≤0.1 |
≤0.15 |
≤0.2 |
≤0.25 |
|
Return Loss |
dB |
≥50 |
|||
|
Directivity |
dB |
≥50 |
|||
|
Insertion Loss Temperature Sensitivity |
dB/ºC |
0.005 |
0.005 |
0.007 |
0.007 |
|
Wavelength Temperature Shifting |
nm/ºC |
0.002 |
|||
|
Operation Temperature |
ºC |
-10 - +70 |
|||
|
Storage Temperature |
ºC |
-40 - +85 |
|||
|
Package Dimension |
nm |
ABS box : 100x80x10mm or customized |
|||
