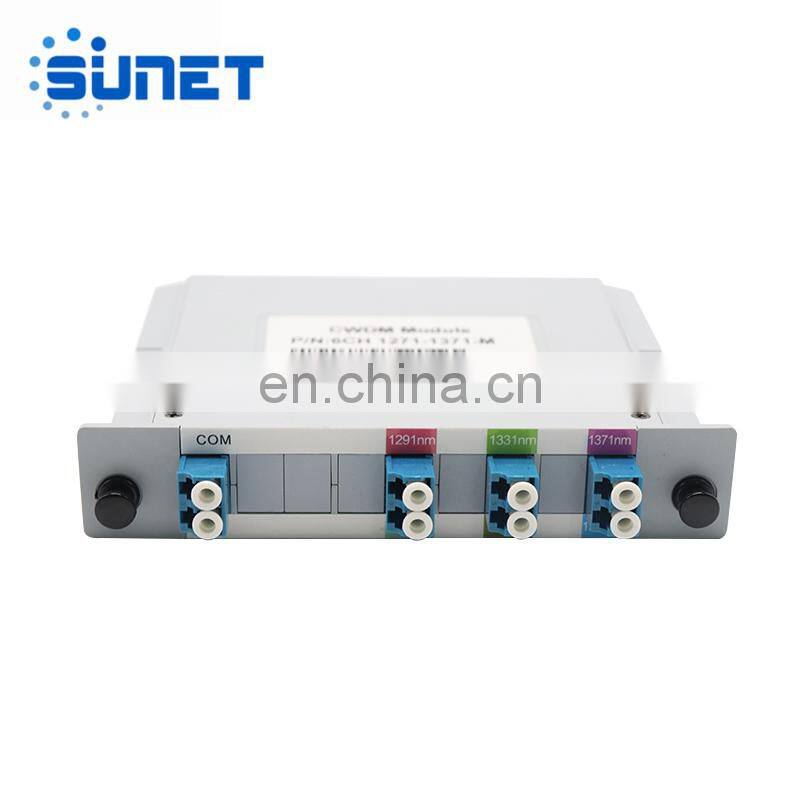

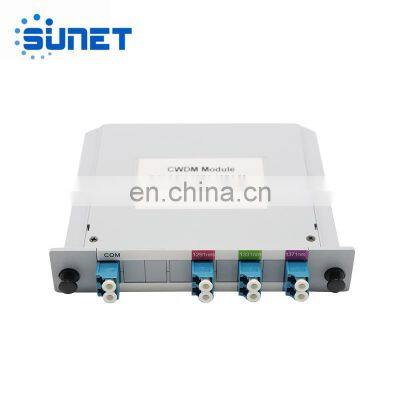

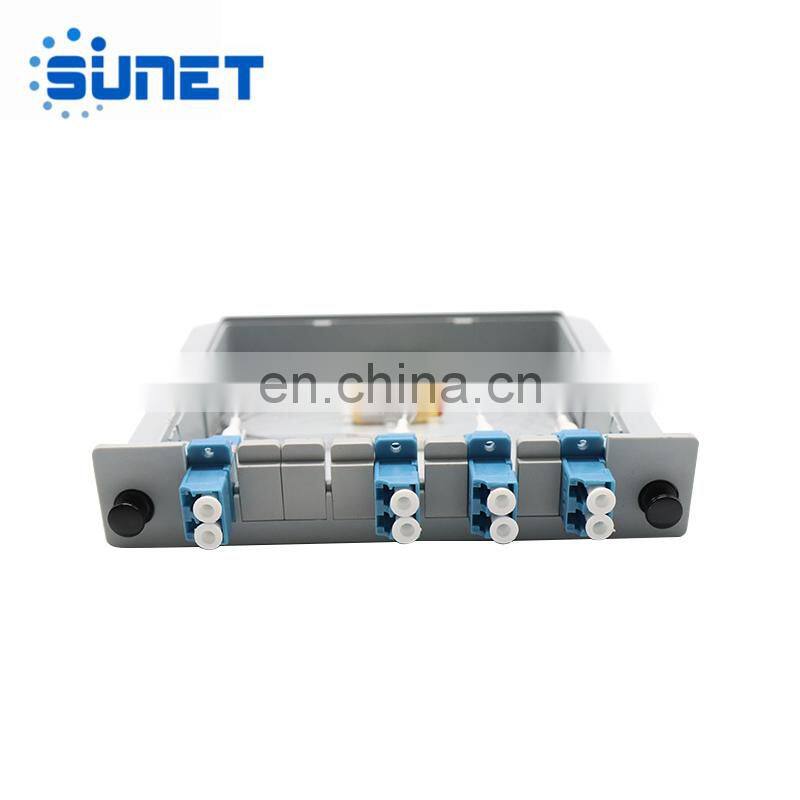

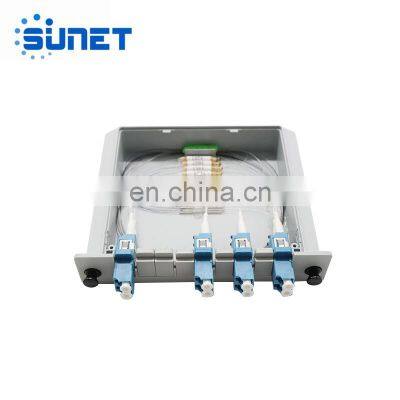

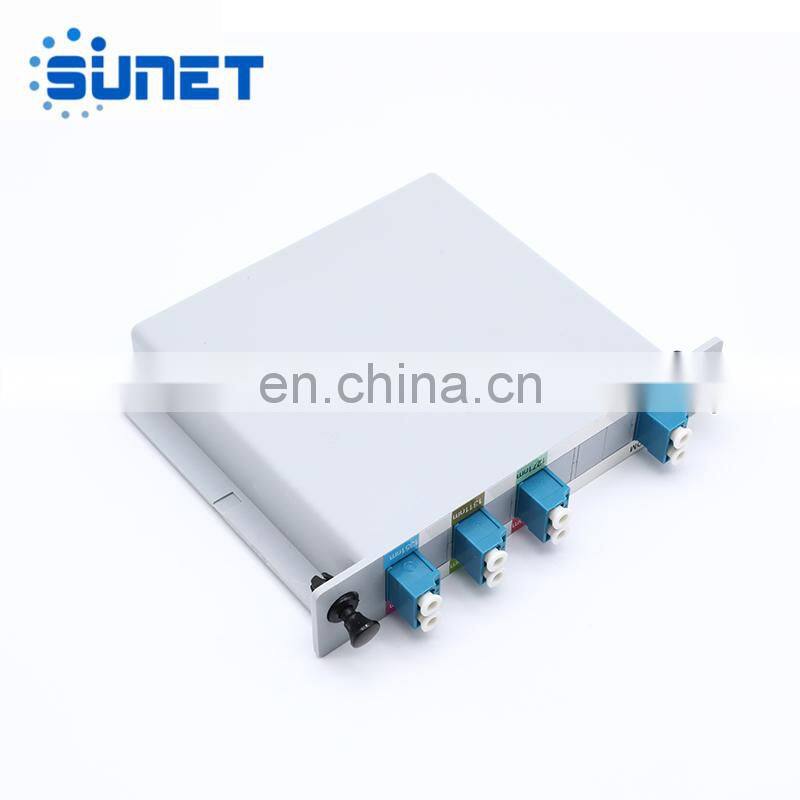

Single Fiber 1270-1410nm 8CH Mux/Demux CWDM 100GHz 8 Channels Lgx Box CWDM

Single Fiber 1270-1410nm 8CH Mux/Demux CWDM 100GHz 8 Channels Lgx Box CWDM thumbnail-3

Single Fiber 1270-1410nm 8CH Mux/Demux CWDM 100GHz 8 Channels Lgx Box CWDM thumbnail-4

Single Fiber 1270-1410nm 8CH Mux/Demux CWDM 100GHz 8 Channels Lgx Box CWDM thumbnail-5

Single Fiber 1270-1410nm 8CH Mux/Demux CWDM 100GHz 8 Channels Lgx Box CWDM photo-1

Single Fiber 1270-1410nm 8CH Mux/Demux CWDM 100GHz 8 Channels Lgx Box CWDM photo-2

Single Fiber 1270-1410nm 8CH Mux/Demux CWDM 100GHz 8 Channels Lgx Box CWDM photo-3

Single Fiber 1270-1410nm 8CH Mux/Demux CWDM 100GHz 8 Channels Lgx Box CWDM photo-4

Single Fiber 1270-1410nm 8CH Mux/Demux CWDM 100GHz 8 Channels Lgx Box CWDM photo-5

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Business Type:

Distributor/Wholesaler

Year Established:

1993

Annual Export Value:

Below US$1 Million

Contact Supplier Request Quote Chat Now

Qingdao Sunet Technologies Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Lgx 4CH Mux Multiplexer CWDM for CATV

Description

CWDM Mux/Demux Module are based on thin film filter technology. CWDM technology provides the flexibility to increase capacity of existing fiber infrastructurby enabling multiple channels (wavelengths) over the same fiber cabling. Eacchannel carries data independently from each other, allowing network designers to transport different data rates and protocols for different customers or applications. CWDM can solve the shortage of fiber and transparent transmission of business, and reduce the cost of network building. With low-cost low power consumption and smalcompact, it is widely used in metro aggregation and access layer to do transmission on a short time. SUNET CWDM Mux/Demux products provide up to 16-channel or even 18-channel Multiplexing on a single fiber. Standard CWDM Mux/Demux package type include: ABS box package, LGX package and 19" 1U rack-mount.

Feature

1.Wide pass band
2.Low Insertion Loss
3.High Stability and reliability
4.High Channel Isolation
5.Epoxy-free on Optical Path

Application

1.WDM Network
2.Line Monitoring
3.Access Network
4.Cellular Application
5.Fiber Optical amplifier

Parameters	Unit	Value
Channels Number	-	2	4	8	16
Channel Space	nm	20
Central Wavelength	nm	1271-1611
Operating Wavelength	nm	1260-1460 or 1460-1620 or1260-1620
Pass band	nm	λITU±6.5
Pass band Flatness	dB	≤0.5
Insertion Loss (Typ.)	dB	0.8	1.3	2.4	4.6
Insertion Loss (Max.)	dB	0.9	1.5	2.8	5.0
Adjacent Channel Isolation	dB	≥30
Non-adjacent Channel Isolation	dB	≥40
Polarization Mode Dispersion	ps	≤0.1	≤0.1	≤0.15	≤0.15
Polarization Dependent Loss	dB	≤0.1	≤0.15	≤0.2	≤0.25
Return Loss	dB	≥50
Directivity	dB	≥50
Insertion Loss Temperature Sensitivity	dB/ºC	0.005	0.005	0.007	0.007
Wavelength Temperature Shifting	nm/ºC	0.002
Operation Temperature	ºC	-10 - +70
Storage Temperature	ºC	-40 - +85
Package Dimension	nm	ABS box : 100x80x10mm or customize
